Micro Series / Specialty Light

RAM

Ultra-compact 2W specialty light with a V-shaped forward-and-down beam for gazebos, ceiling beams, architectural details, and concealed accent lighting.

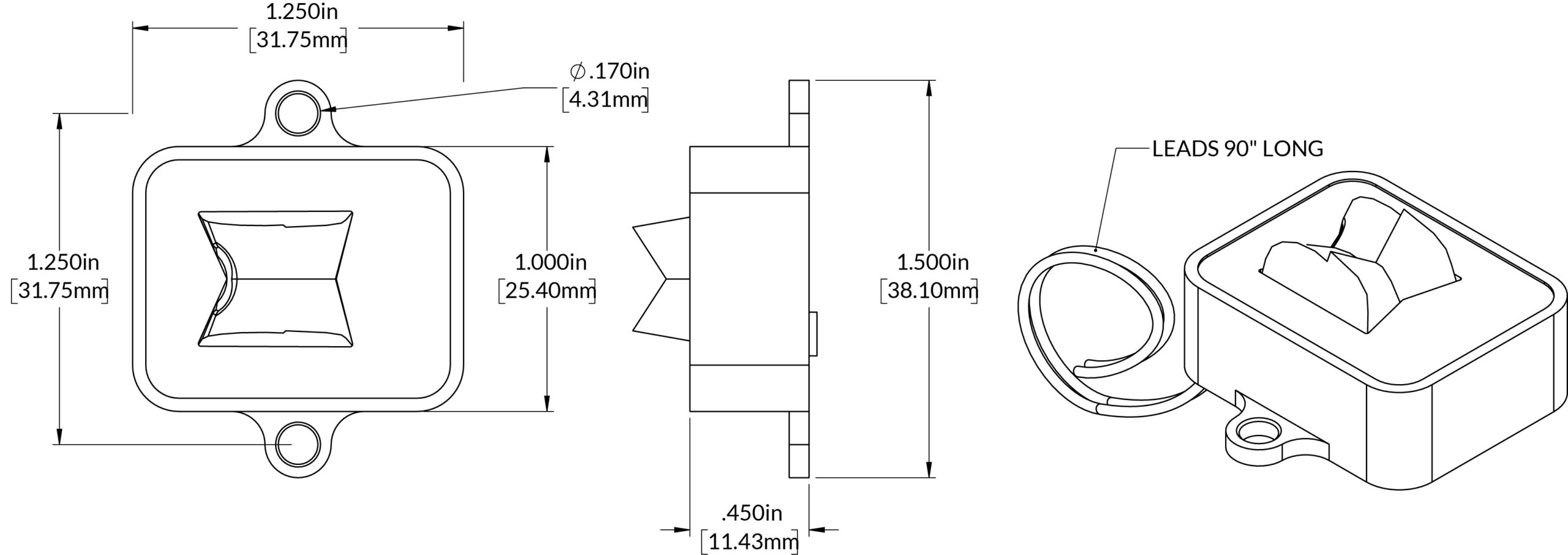

RAM Micro II dimension drawing
Dimensions & Mounting

1.25" micro housing with split-beam control.

The RAM mounts with integrated dual tabs using 0.170" holes for #8 or M4 fasteners. Its 65° split optic projects a V-shaped beam forward and downward from ceilings, beams, ledges, and concealed architectural mounting points.

Built In / Ships From
Tampa, Florida
Light Engine
U.S.-made LED and driver
Beam Shape
V-shaped forward/down distribution
Mounting Options
Integrated dual mounts; front and full shields available

Output
72 lm
Power
2W
Optics
65° Split Beam
Certifications & Ratings
ETL | IP67
Downloads

Micro Series Guide

Which Micro Series fixture is right for your application?

Compare beam patterns, mounting styles, outputs, and fixture sizes across the Micro Series before choosing the best fit for tight architectural details, steps, ledges, railings, and specialty accent work.

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Best For

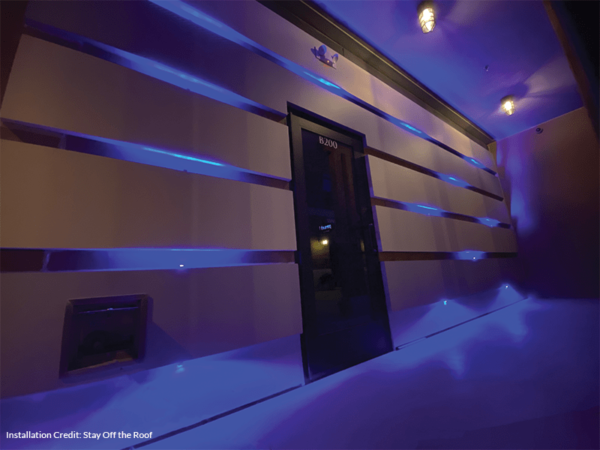

Gazebos, pergolas, pavilions, ceiling beams, soffit details, architectural elements, and locations where a concealed fixture needs to throw light forward and down.

Build

CNC-machined 6061-T6 aluminum or C360 brass with 316 stainless hardware, fully potted IP67 housing, built-in surge protection, and optional front or full glare shields.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.

Application Note

Luminaire must not be subjected to direct sunlight. Submersible builds and dimmable configurations are available upon request.
