Micro Series / Specialty Light

ROCK

Ultra-compact 2W specialty light with a forward-and-down beam for shrubs, statues, planters, and features positioned below and in front of the mounting point.

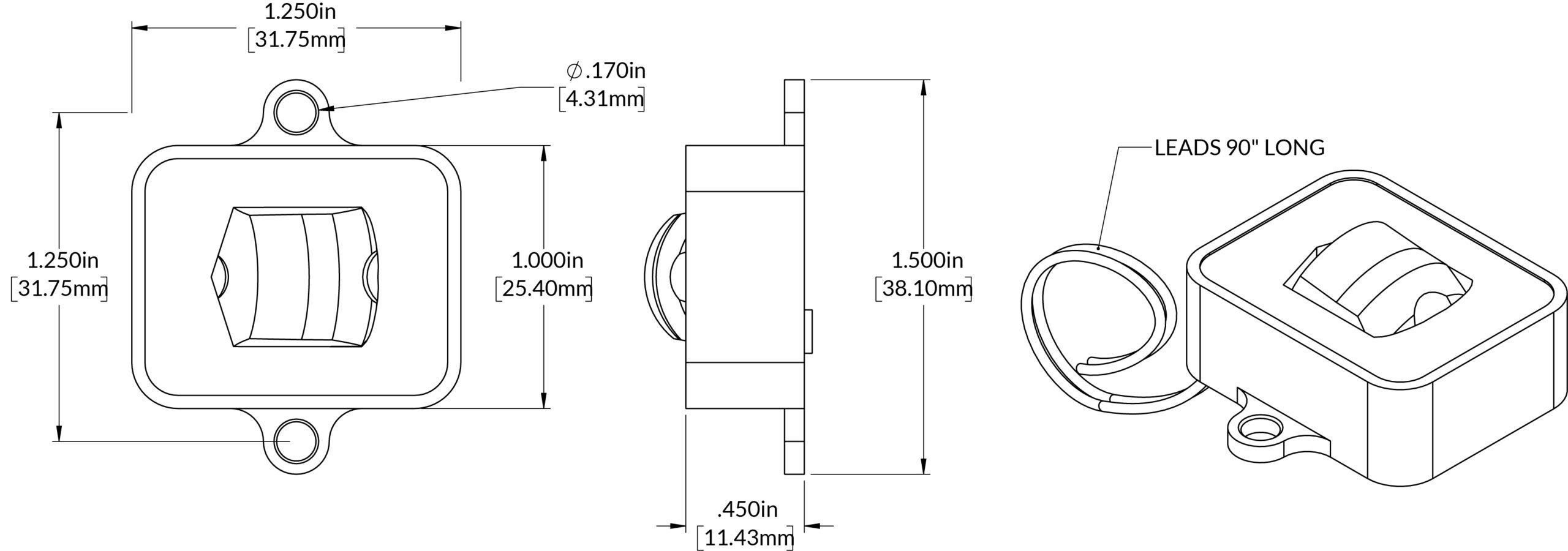

ROCK Micro Series dimension drawing
Dimensions & Mounting

1.25" micro housing with a forward-throw optic.

The ROCK mounts with integrated dual tabs using 0.170" holes for #8 or M4 fasteners. Its optic throws light outward and downward from the mounting point for features that sit below and in front of the fixture.

Built In / Ships From
Tampa, Florida
Light Engine
U.S.-made LED and driver
Beam Shape
Forward and downward throw
Mounting Options
Integrated dual mounts; front and full shields available

Output
93 lm
Power
2W
Optics
Forward Throw
Certifications & Ratings
ETL | IP67
Downloads

Micro Series Guide

Which Micro Series fixture is right for your application?

Compare beam patterns, mounting styles, outputs, and fixture sizes across the Micro Series before choosing the best fit for tight architectural details, steps, ledges, railings, and specialty accent work.

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Example

Forward-and-down projection for tucked-away feature lighting.

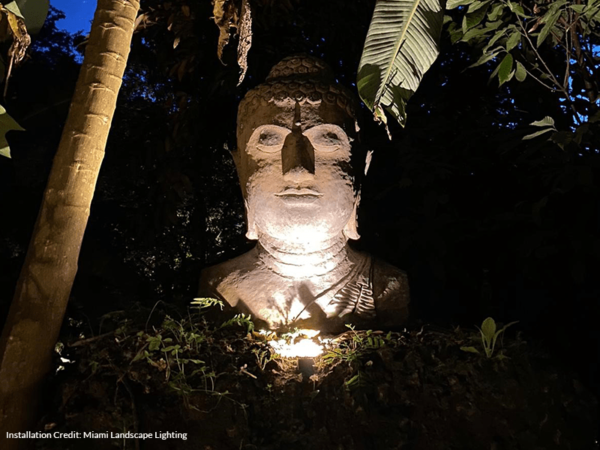

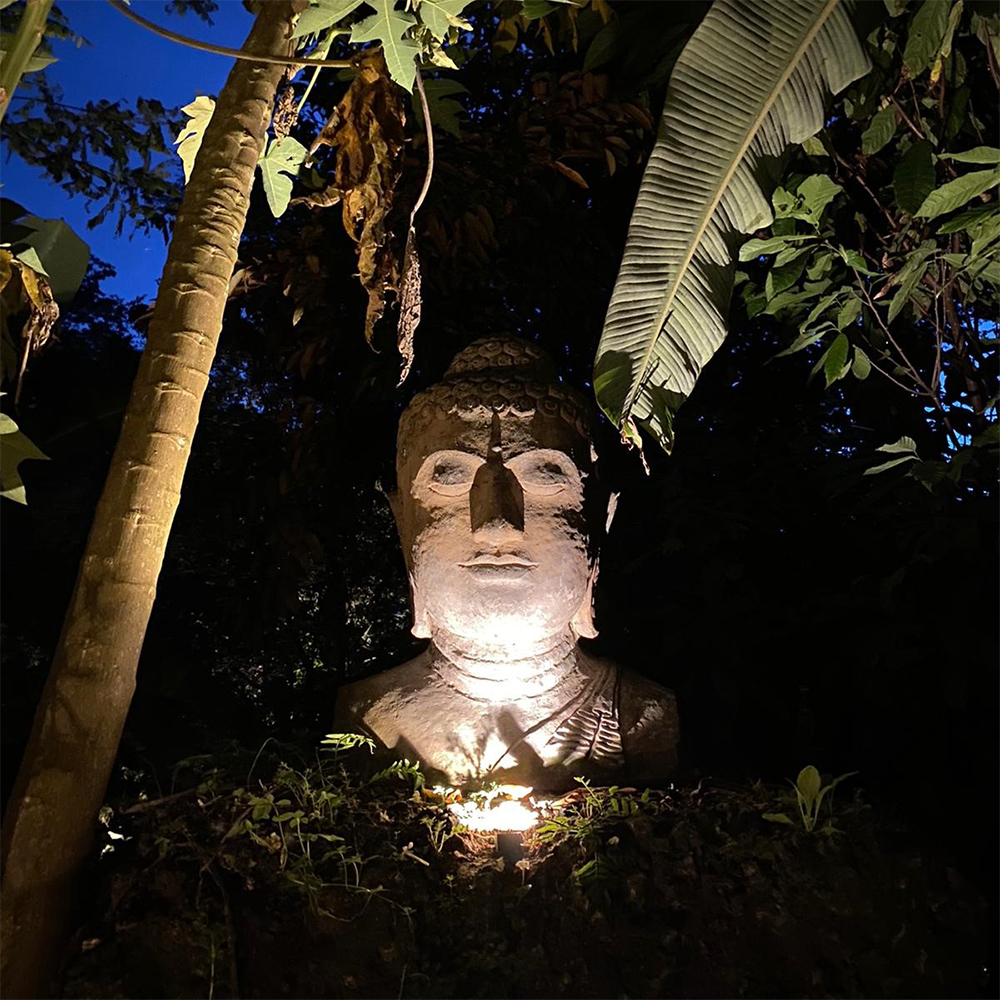

ROCK Micro Series illuminating a garden sculpture from a concealed planting area
Sculpture accent from a concealed planting area

Best For

Shrubs, statues, planters, garden art, low walls, tucked architectural details, and features positioned below and in front of the mounting point.

Build

CNC-machined 6061-T6 aluminum or C360 brass with 316 stainless hardware, fully potted IP67 housing, built-in surge protection, and optional front or full glare shields.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.

Application Note

Luminaire must not be subjected to direct sunlight. Submersible builds and dimmable configurations are available upon request.
