Well Light Stainless in Aluminum
Well Light in Brass
WL | Well Light - Image 3
WL | Well Light - Image 4
WL | Well Light - Image 5
Well Light Brass

WL | Well Light

Quantity
Optional Add-Ons
Honey Comb Louver
Factory-Installed Honeycomb Louver
Aluminum honeycomb louver designed to reduce glare and diffuse light. When selected, the louver is factory-installed to maintain its IP66 waterproof rating and warranty.
+ per fixture
SKU LWL Categories , Tags ,

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Log In to Your Account
Become a Dealer

In-Grade Series / Well Light

Well Light

Full-size 4.00″ in-grade LED well light for powerful ground-level uplighting on trees, columns, facades, walls, hardscapes, and architectural features.

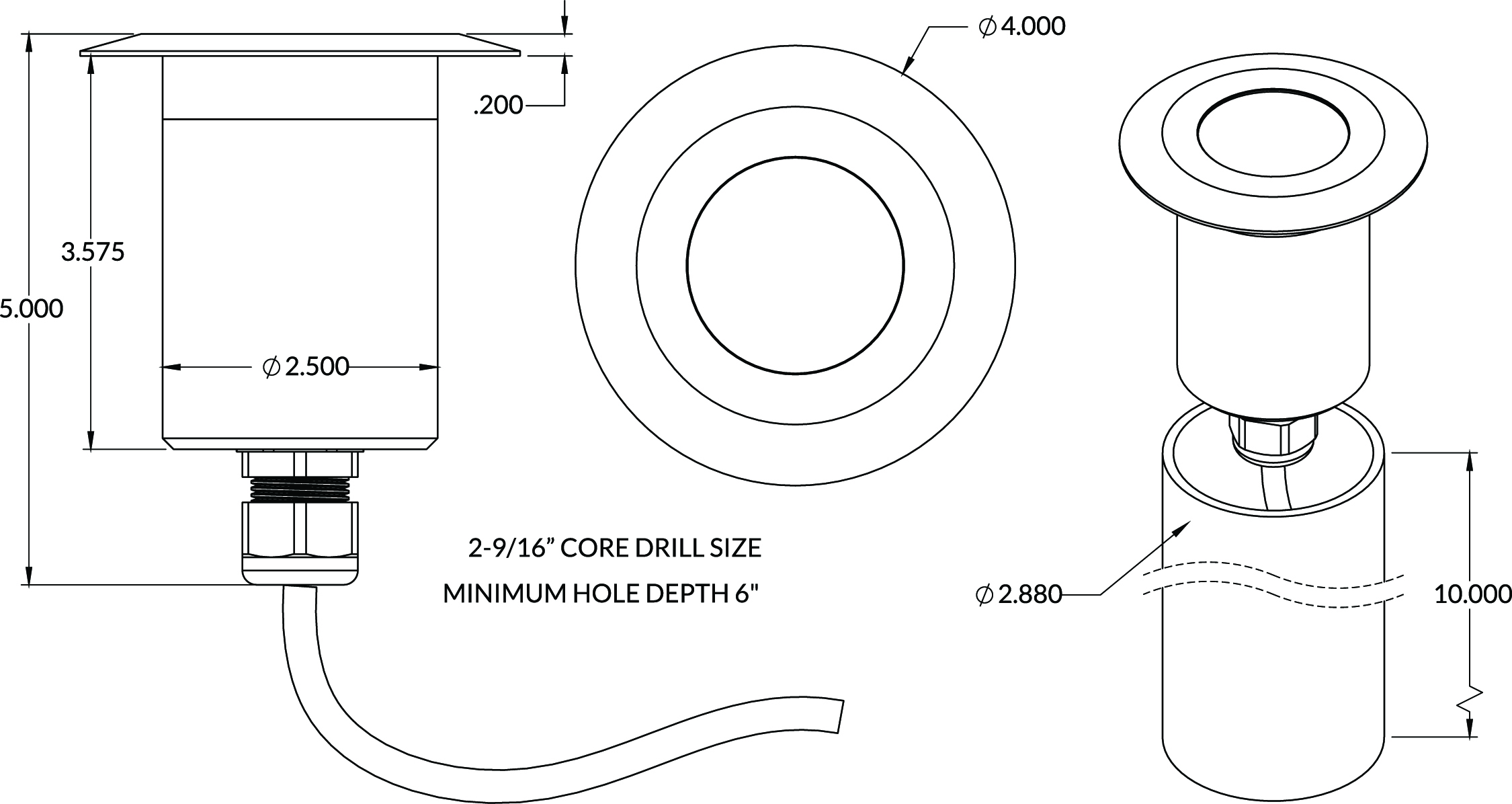

Well Light dimension drawing

Dimensions & Mounting

4.00″ diameter in-grade housing with PVC sleeve included.

Direct-in-grade installations require a 2-9/16″ core drill. A 10″ x 2-7/8″ PVC installation tube is included for pre-pour or pre-fab hardscape installations and future service access.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated, field serviceable
Beam Control
Interchangeable optics
Mounting Options
Core-drill or included PVC sleeve installation
Output
195-810 lm
Power
2W-9W
Optics
12° / 25° / 40° / 60°
Certifications & Ratings
ETL | IP67
Downloads


Spec SheetPDF


Install GuidePDF


IES FilesZIP


IES FilesPDF ZIP

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.Request IES File

Application Examples

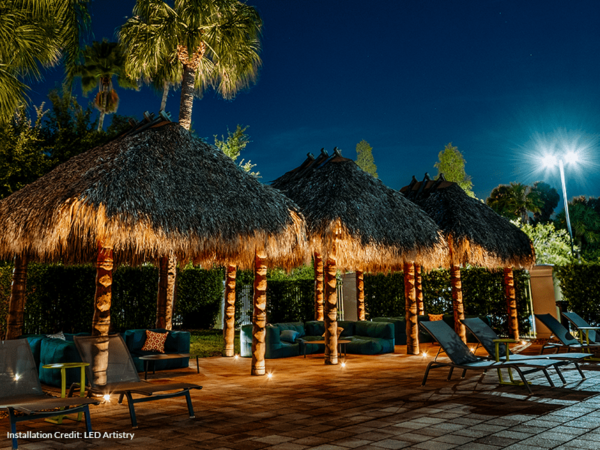

Powerful in-grade uplighting for trees and architectural features.

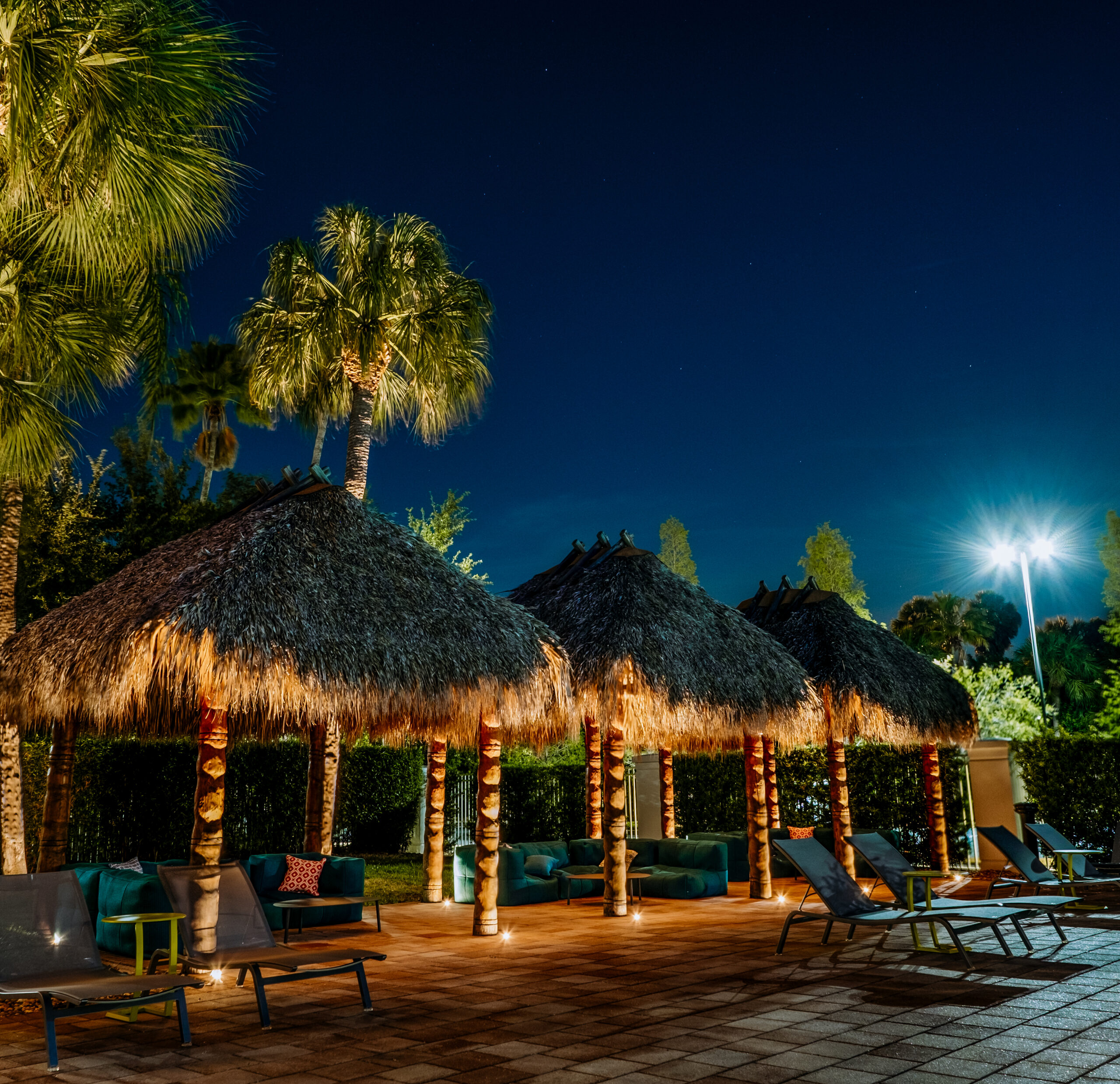

Well Light used for in-grade landscape and architectural uplighting

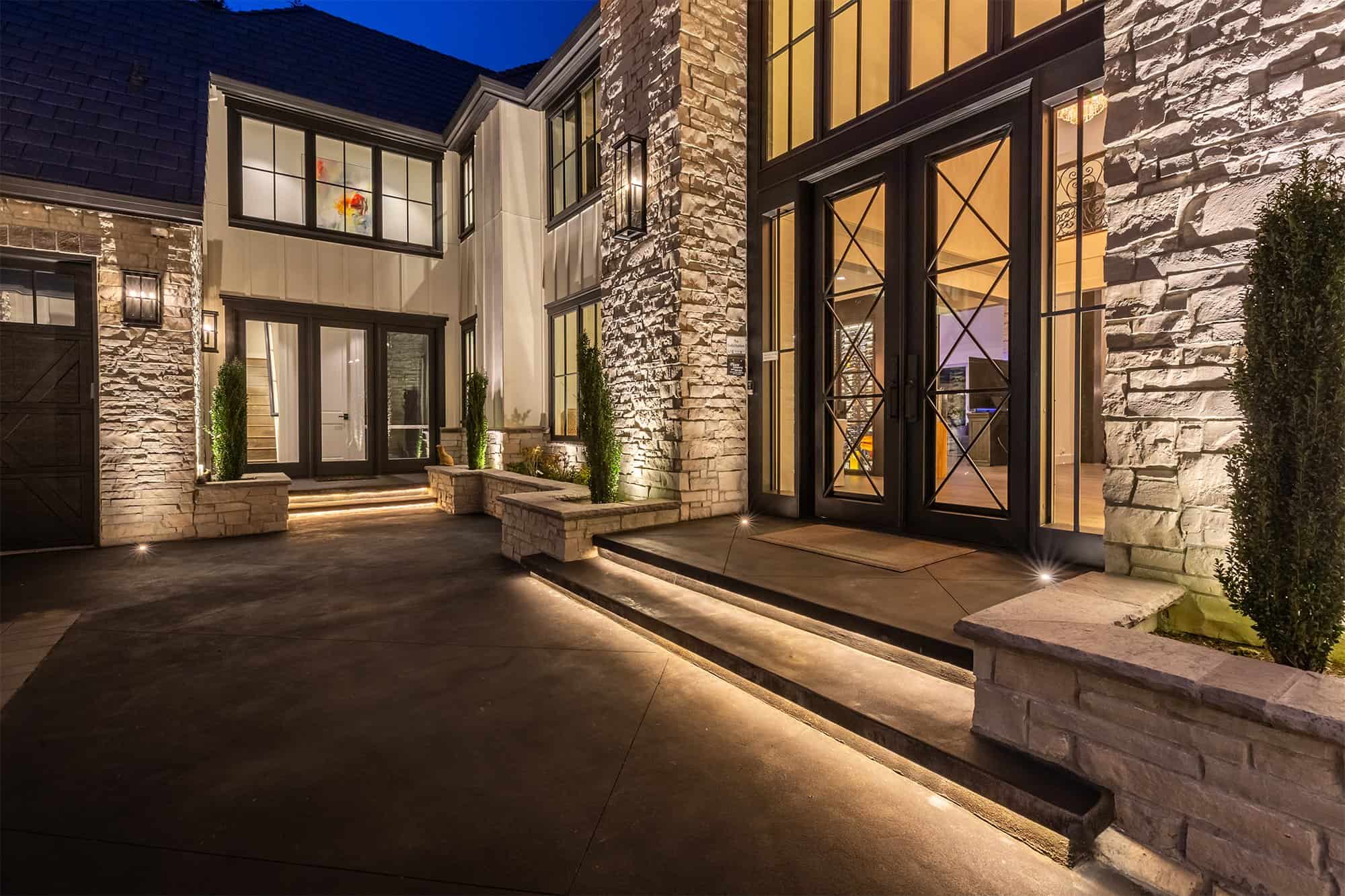

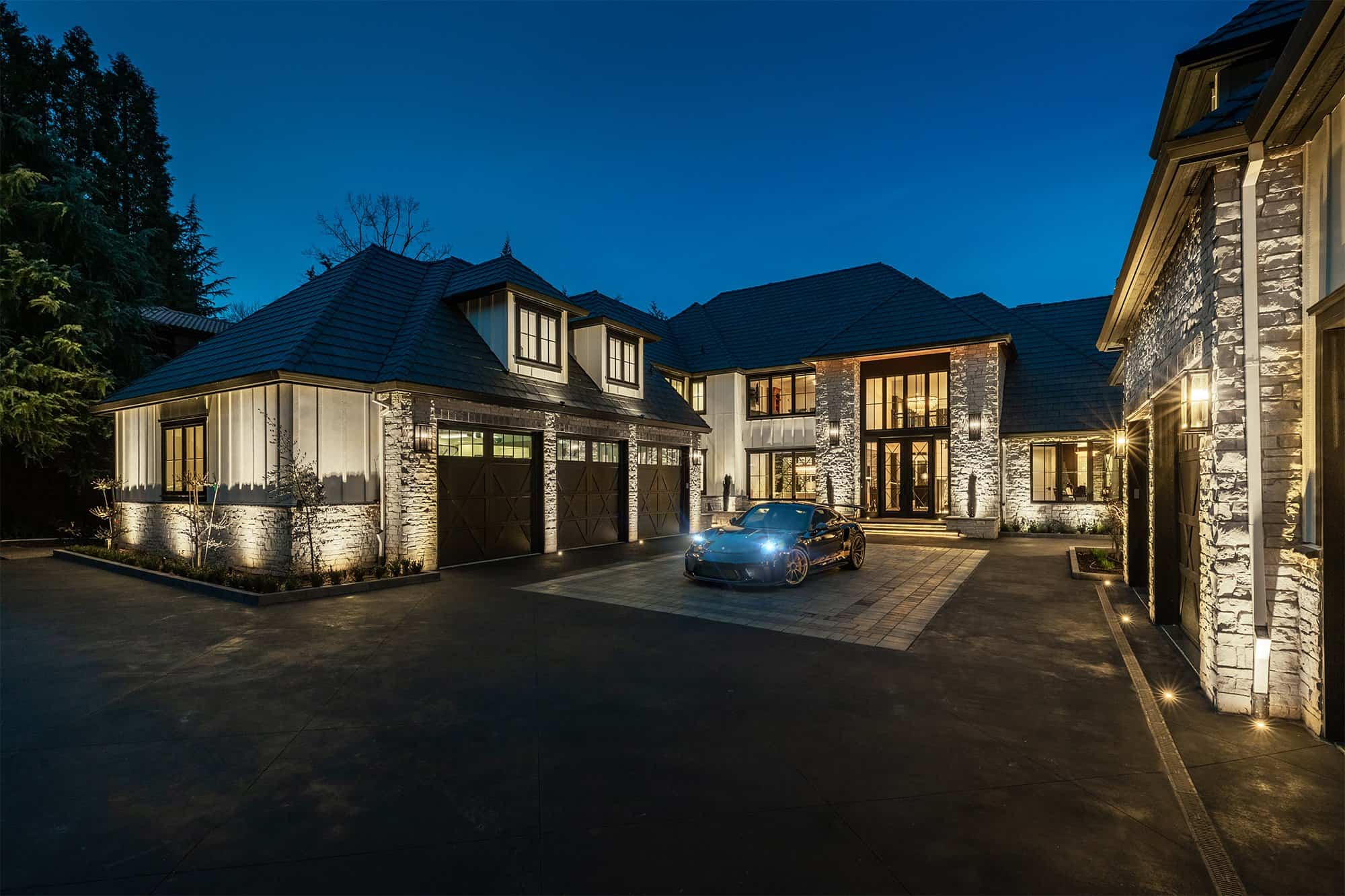

In-grade architectural uplighting

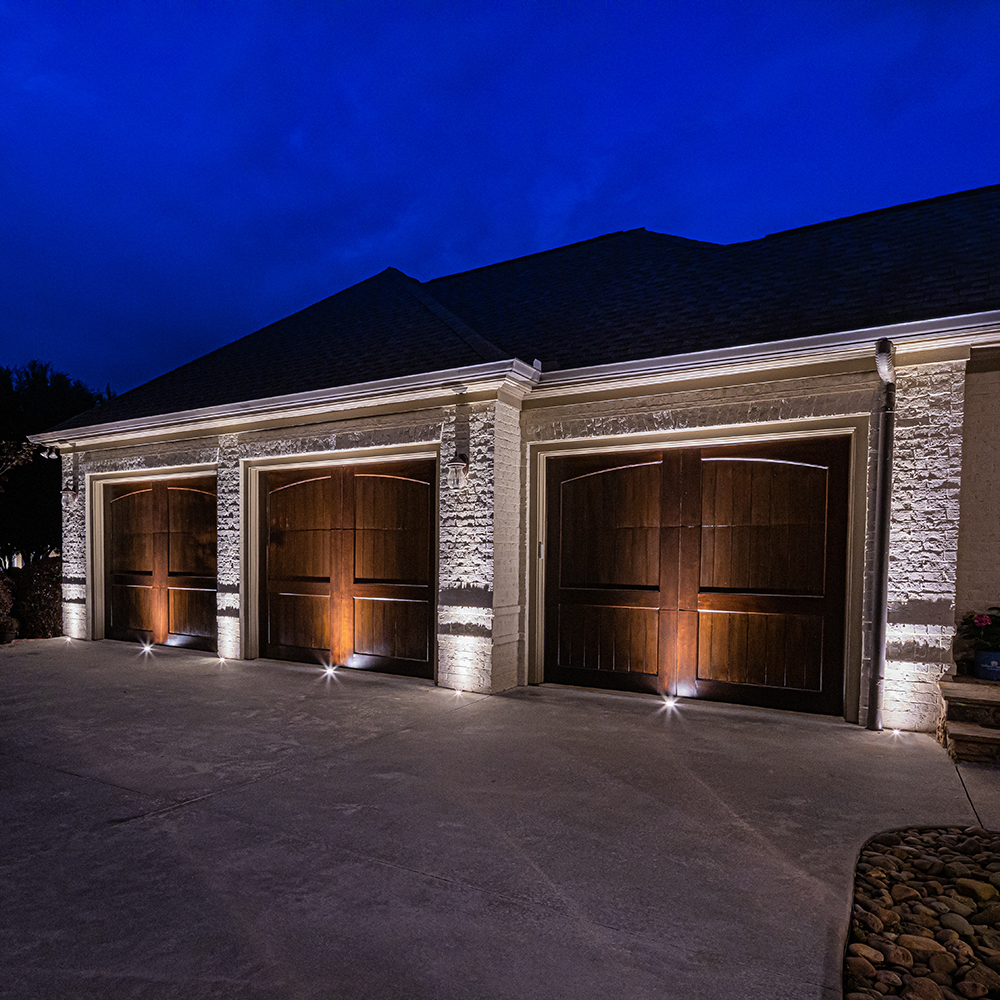

Well Light illuminating trees from an in-grade installation
Hardscape Lighting

Best For

Trees, palms, columns, facades, walls, hardscapes, signs, and powerful ground-level architectural uplighting.

Build

6061-T6 aluminum or C360 brass with 316 stainless hardware, serviceable LED module, built-in surge protection, optional hex louver, and included PVC sleeve.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Amber is not available in 6W or 9W; Red is not available in 9W.
