Mini Well Light High Performance Architectural Up Lighting

Call for Pricing

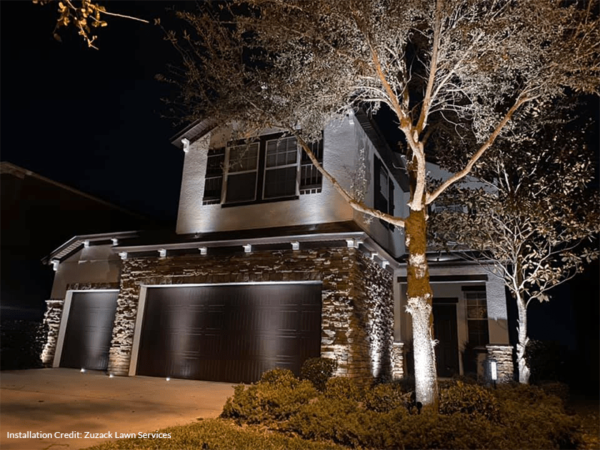

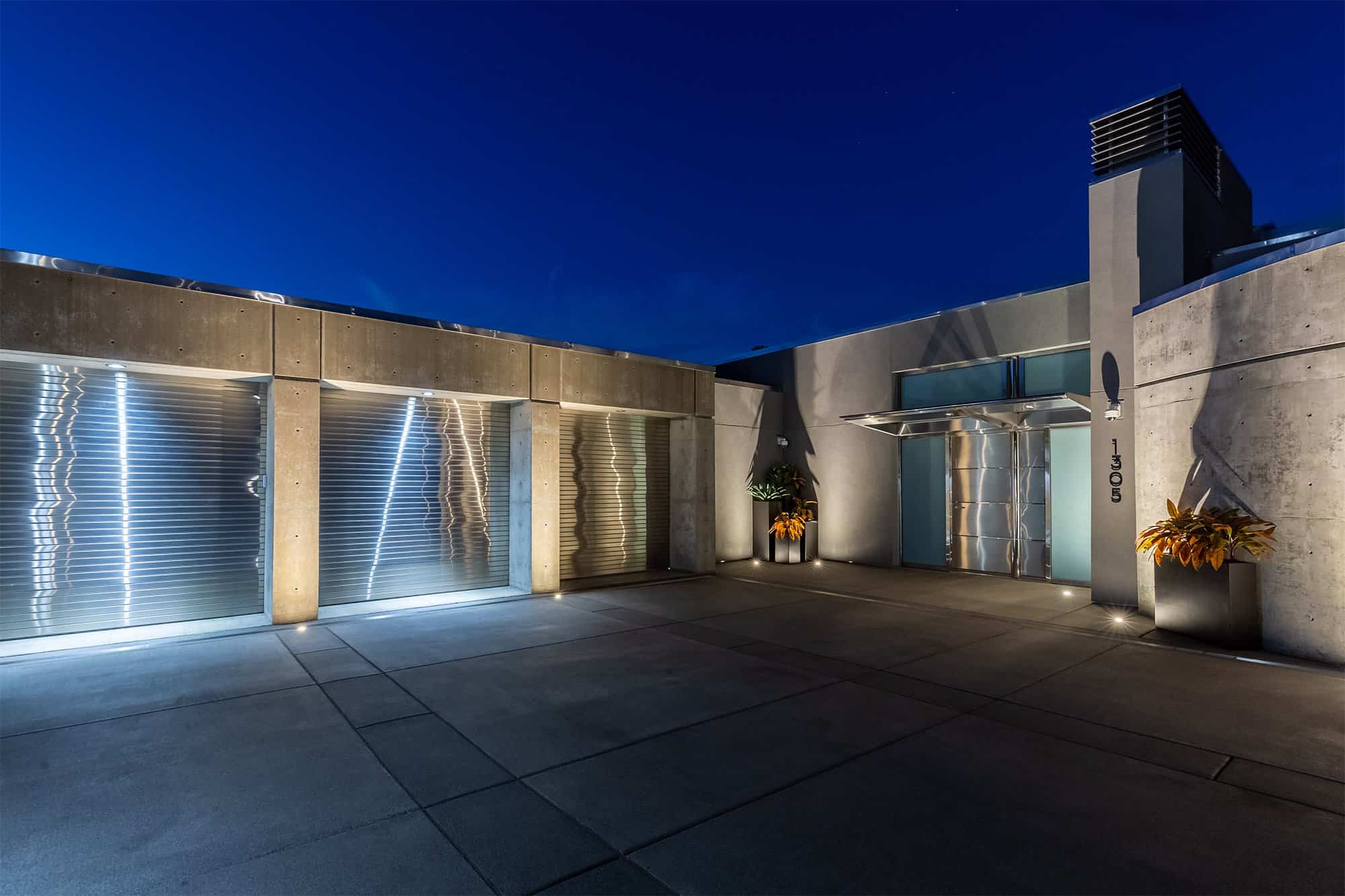

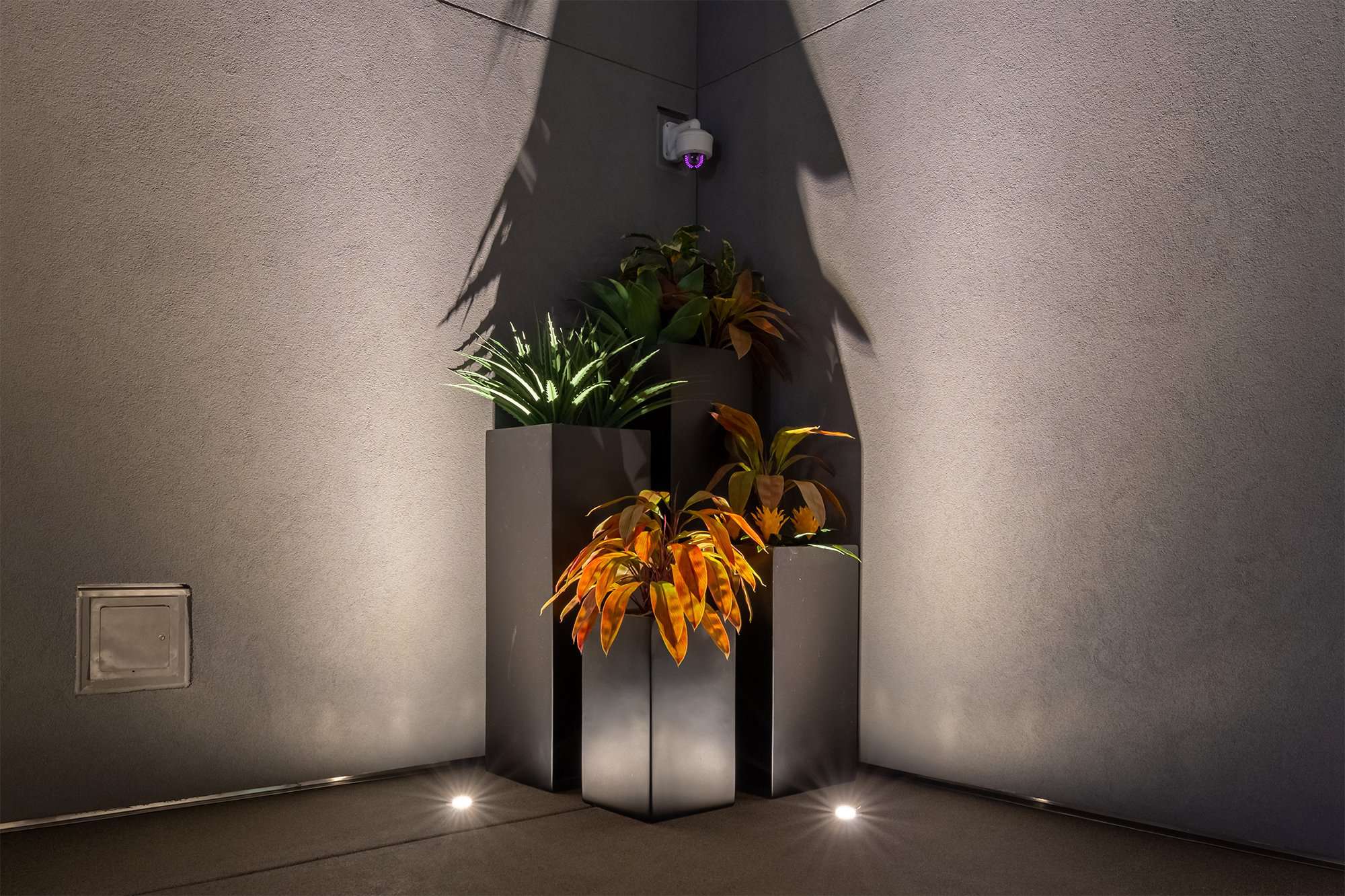

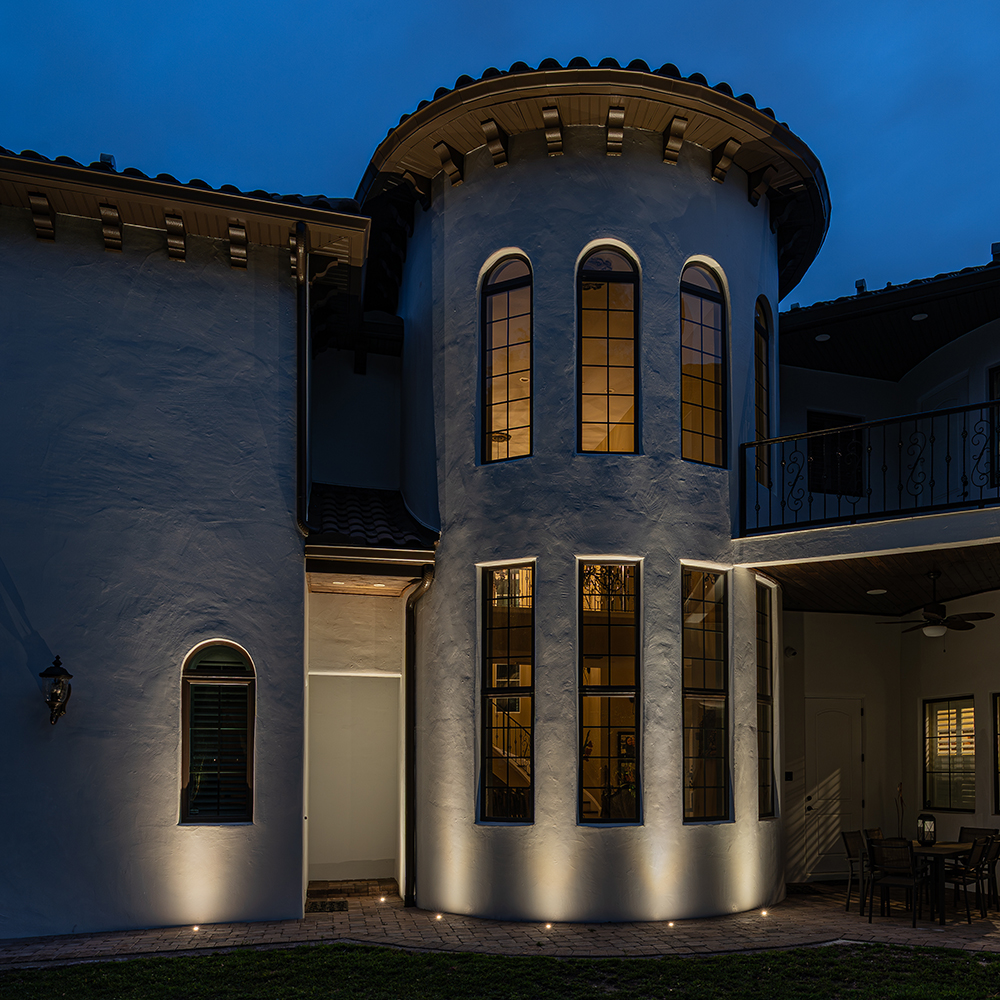

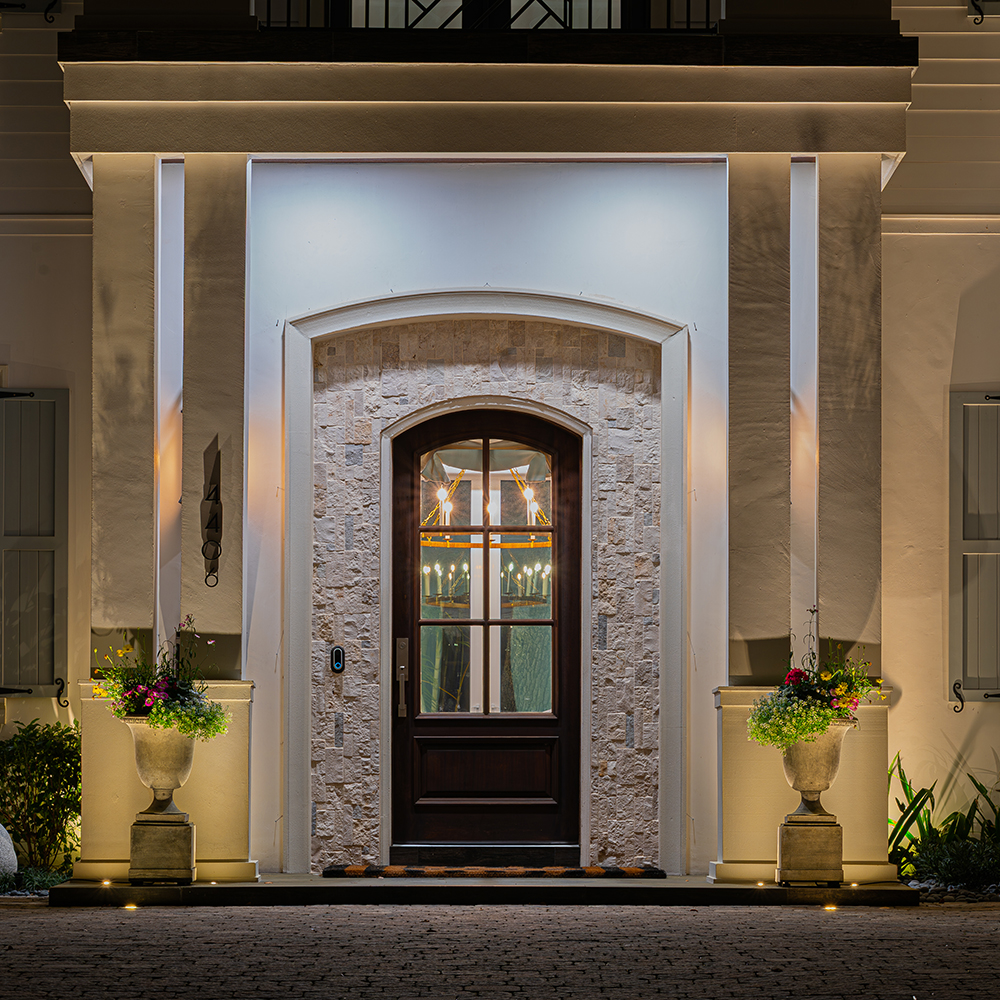

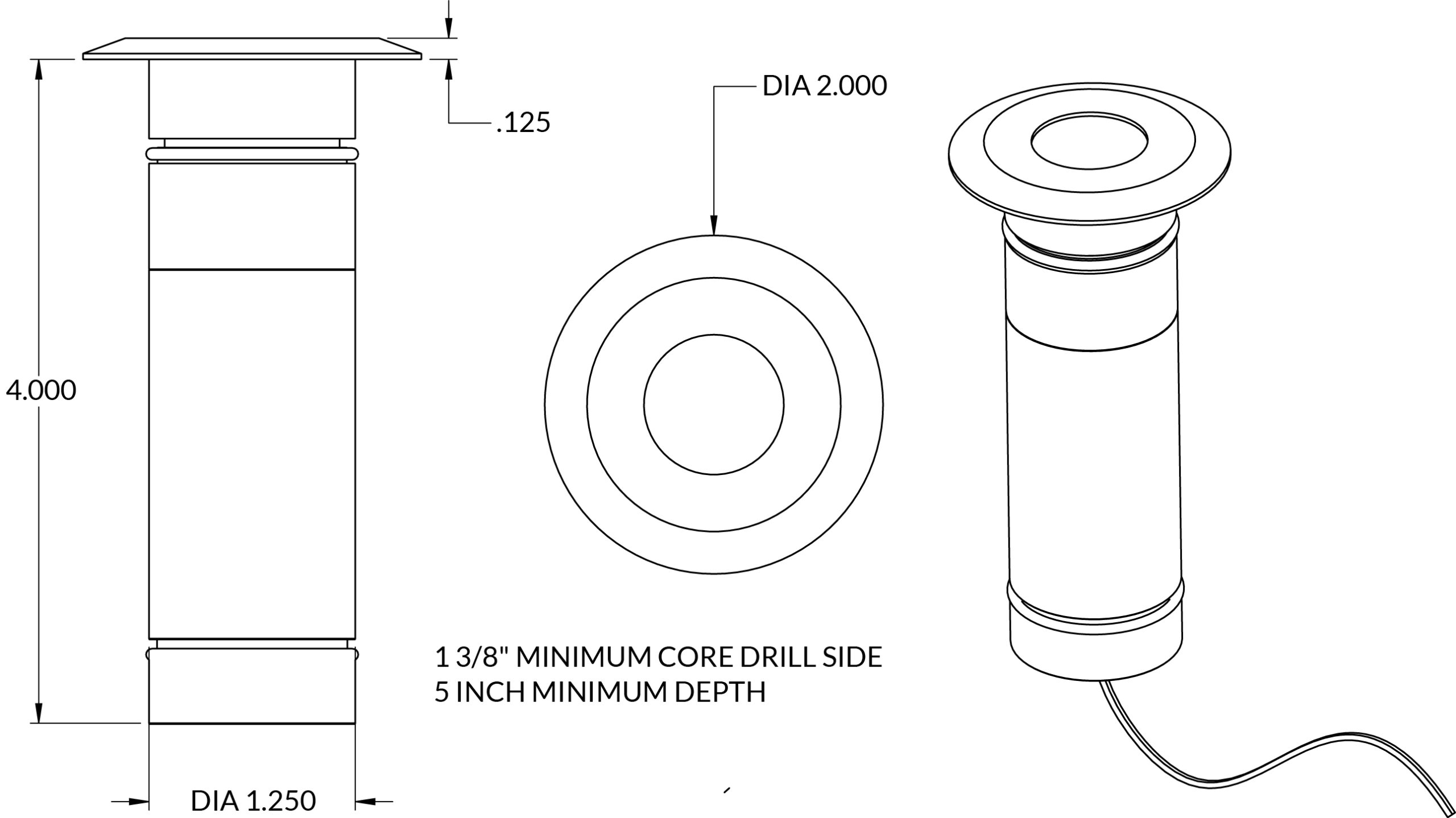

CNC machined from Solid Brass or Stainless Aluminum, our exclusive LED line leads the outdoor lighting industry with a state-of-the-art fully integrated light engine. Modular component design allows serviceability in the field and future technology upgrades to make this light what we call ?A Fixture for Life?. The new Mini Well light is mechanically enhanced for strength and longevity. It is 2 inches in diameter and designed for flush-mount installation directly into any surface. The new tempered mineral glass protective lens is 2X thicker to resist even higher pressure. This easy-to-hide luminaire needs only a 1.219-inch diameter cavity for installation. This small, yet impressive mini well light is suitable for: Up Lighting, Pavers, Driveways, Archways, Alcoves, Columns, Fencing, Gazebos, Flag Poles, Mail Boxes and so much more. It is also available in our full range of True LED Color Light Output. Built to last, we offer the greatest and most reliable 20-year warranty in the industry. Be amazed with our quality standard of excellence and our extremely competitive pricing.

While many fixtures are manufactured in foreign countries, Garden Light LED proudly builds all LED products in our Tampa, Florida factory. Garden Light LED fixtures are the product of intense collaboration and are engineered, designed, and assembled in the United States, allowing us to maintain and control the purity of the Garden Light LED standard.
a_fixture_for_life_logo
Garden Light LED has stayed ahead of the curve by engineering and manufacturing A Fixture for Life, its line of select LED fixtures that are adaptable in design and designed to be upgraded with LED technology that doesn’t even exist yet.

Efficacy

LED technology has high efficacy. Which provides lower energy/power consumption protecting our natural resources. ENVIRONMENTALLY CONSCIOUS PRODUCTS. GREENER ENERGY RESOURCES ARE KEY TO THE PLANET’S WELL-BEING.

Built in the USA

Garden Light LED is Investing in America! All electronic assemblies are manufactured in the US. All low voltage transformers and LED fixtures are built at our facility in Tampa, FL USA. As part of our commitment to made in America products Garden Light LED has proudly tripled our production staff bringing needed jobs to American workers.

UL1838

Garden Light LED 15V transformers and LED luminaries are certified for compliance with UL1838 – Low Voltage Landscape Lighting Systems to ensure products meet or exceed industry standards for residential and commercial applications.

LED Light, Perfected

Our proprietary mixing processes achieves 3000K CCT Warm White range with a minimum CRI of 80 to produce the highest quality and consistency of light available today. Multiple beam angles, Full-definition, high-efficiency optics, total internal reflection (TIR) technology, no hot spots, no color separation and no sharp edges.

LED Life Expectancy

Rated for greater than 60,000 hours of life, or greater than 20 years, ensuring a consistent, long-life light output per TM-21 data.

Isolated Drive System

Drive system is physically separate, when feasible, to remove heat associated with the light engine from the driver, and allows field upgradeability and maintenance of fixture. Drive system maintains a constant DC current for driving the LEDs even with variable and changing input voltages. All Garden Light LED drivers include a surge protection device.

Thermo-Guard Stake

Strong, durable, quick access stake serves as a protective housing for the isolated drive system, and creates the ideal operational environment. Drive system can be upgraded (to increase light output, for example) without removing the stake from the ground or pulling up wire. Other mounting option available.

Durability

All LED luminaries with a painted finish are cnc-machined from solid 6061 aluminum. All LED luminaries with a raw finish are cnc-machined from solid C230 or C360 brass.

True LED Color

Luminaries with colored light output use LEDs that actually emit those colors as opposed to the use of color filters and films. Available colors are: Warm White, Amber, Blue, Royal Blue, Green and Red. Not all colors are available for all SKUs. (PURE).

Automation and Control

In order to provide the widest range of outdoor lighting opportunities, various LED luminaires have been tested and certified by Crestron to exhibit smooth, wide-range dimming on Crestron controllers. More information can be found on the Crestron website. Then select: Manufacturer – Garden light LED. Garden light fixtures have also been installed in other manufacturers control systems successfully; Lutron systems and control four.
MODEL: MWL MINI WELL LIGHT HP- NEW ENHANCEMENT

APPLICATION:
• Up light, Shadowing, Wall Wash, Silhouette, Architectural Accents

CONSTRUCTION:

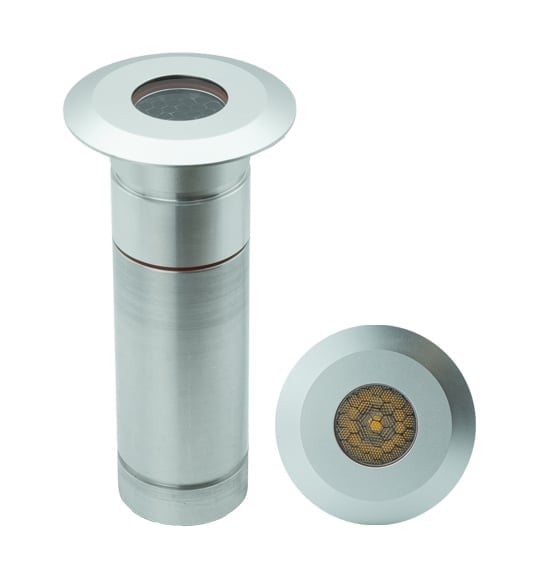

• 6061 Aluminum – Clear Anodized (SSA Model)

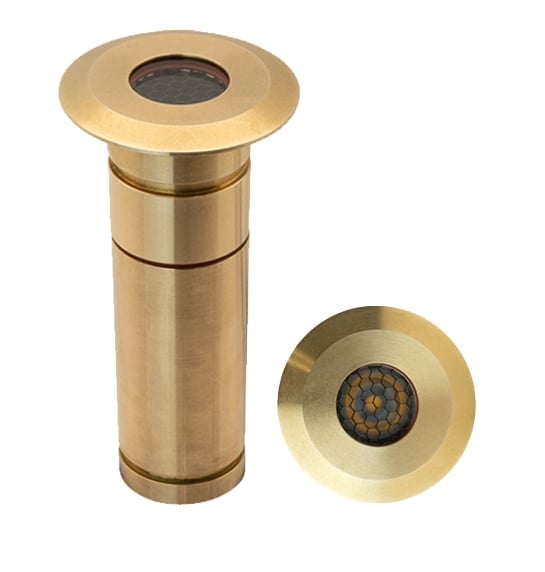

• High Performance C360 Solid Brass (BR Model)
• 2X Thicker Tempered Mineral Glass Protective Lens

LED LIFE EXPECTANCY (TM-21 DATA):
• Greater than 60,000 hours (greater than 20 years at 8 hours per day)

DRIVER SYSTEM:
• Internal Driver constructed with advanced electronics

INPUT VOLTAGE RANGE:
• 10.5 to 18 Volts AC or DC

DELIVERED LUMENS (3000K): IES FILES AVAILABLE UPON REQUEST
• 4.6 VA- 122 lm

INSTALLATION AND HARDWARE:
• LV180 Ground Stake included
• All stainless steel hardware

LEAD WIRES:
• ULECC 18 AWG Tinned Copper Wire
• 46 inch length

ELECTRONICS WARRANTY:
• 20 Years

CERTIFICATION:
• UL1838 Low Voltage Landscape Lighting

POWER CONSUMPTION/AVAILABLE MODELS:
• See Power Consumption / Model Availability Table

AVAILABLE FINISHES:
• Stainless Aluminum (SSA) • C360 Solid Brass (BR)

Mini Well Light HP SERIES INSTALLATION INSTRUCTIONS

Save these instructions for future reference.

Follow all NEC guidelines and local electrical codes.

Download Installation PDF
