Mini Wall Washer in Architectural Bronze

MWW | Mini Wall Washer

finish

wattage

optics

color temp

Clear

Quantity

Optional Add-Ons

Mini Wall Washer Shroud Black

This shroud cover is designed specifically for our Mini Wall Washer, effectively preventing glare and blocking visible light output, allowing for subtle, focused illumination without distraction.

Add one for each fixture added to cart

+ per fixture

Trident Shield Insulated Stake

Upgrade to our premium 317 stainless steel Trident Shield Stake for maximum stability in demanding soil conditions. An integrated polycarbonate threaded insert electrically isolates the fixture from the stainless steel stake, helping reduce the effects of ground-induced surges. Compatible with all 1/2-14 NPS fixtures and S2/S3 mounting systems.

Spike Length

Upgrade each fixture with a Trident Shield Stake

per fixture

SKU MWW Categories Outdoor Landscape Lighting, Wall Washers and Flood Lights Tags LED, wall washer

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Wall Washers / Mini

Mini Wall Washer

Compact 1.50" LED wall washer with a 120° wide-angle flood optic for signage, entrances, boundaries, textured walls, and architectural accent lighting.

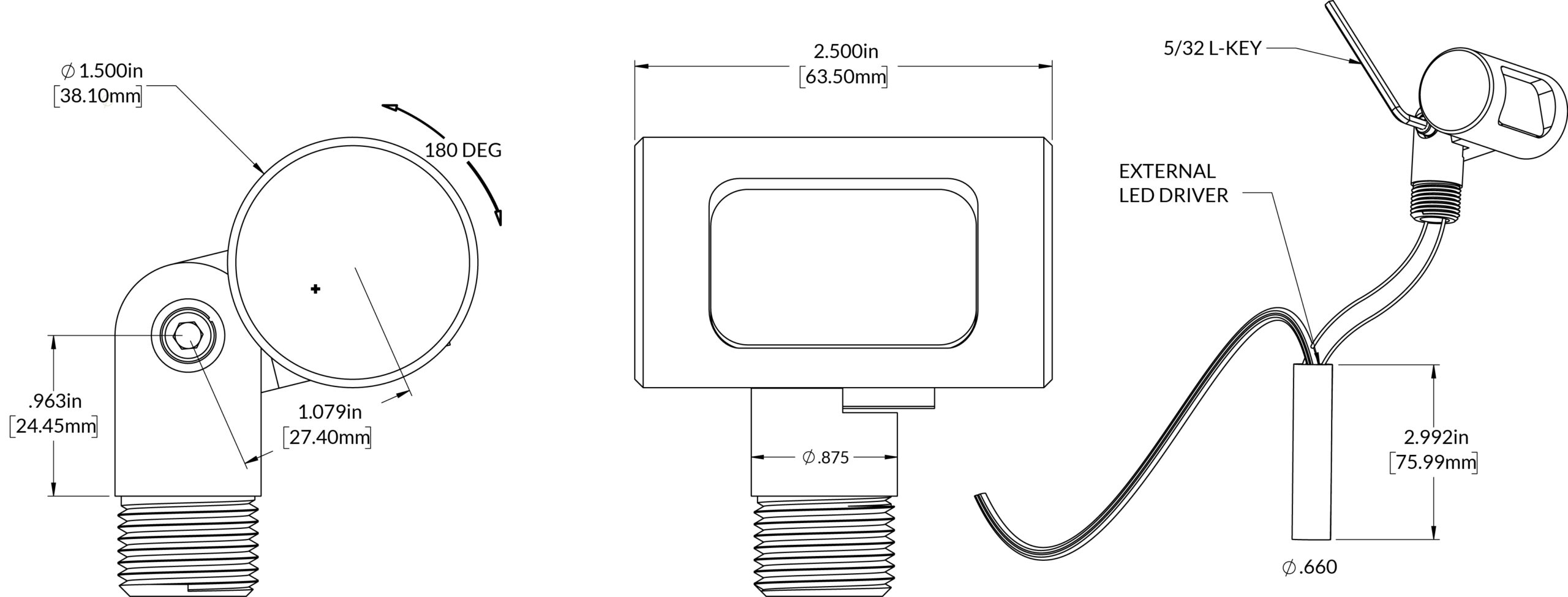

Dimensions & Mounting

Compact 1.50" housing with 180° adjustment.

Includes LV180 stake and mounts with 1/2"-14 NPS fittings. Compatible with Garden Light LED surface, tree, and extension mounting accessories.

Built In / Ships From
Tampa, Florida

Light Engine
U.S.-built LED, external encapsulated driver

Beam Spread
120° wide-angle flood

Mounting Options
LV180 stake included; surface, tree, and extension mounts available

Output
270 lm

Power
2W

Optics
120° Flood

Certifications & Ratings
ETL | IP67

Downloads

Spec SheetPDF

Install GuidePDF

IES FilesZIP

IES FilesPDF ZIP

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

Wide, even illumination from a compact source.

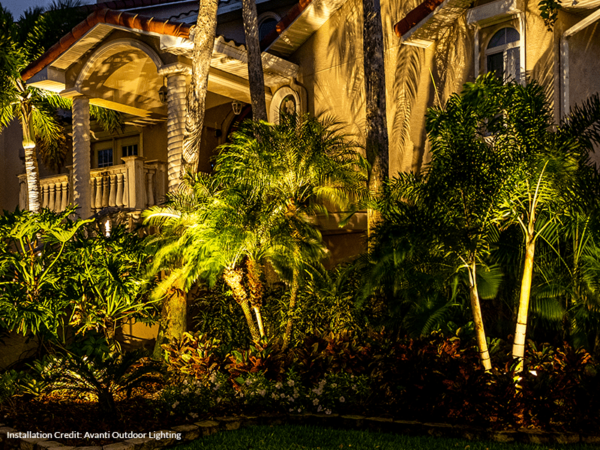

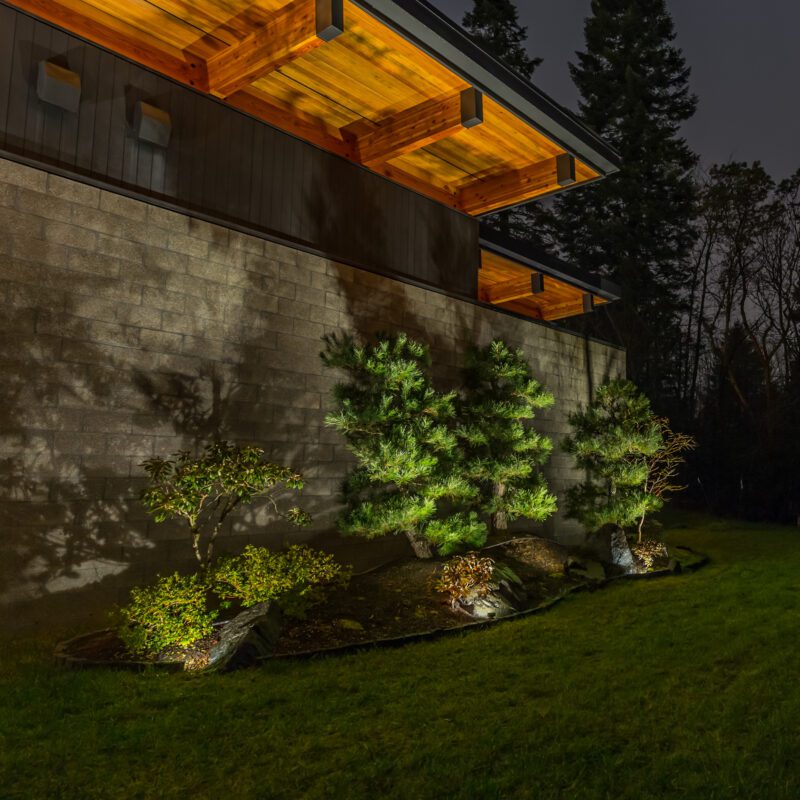

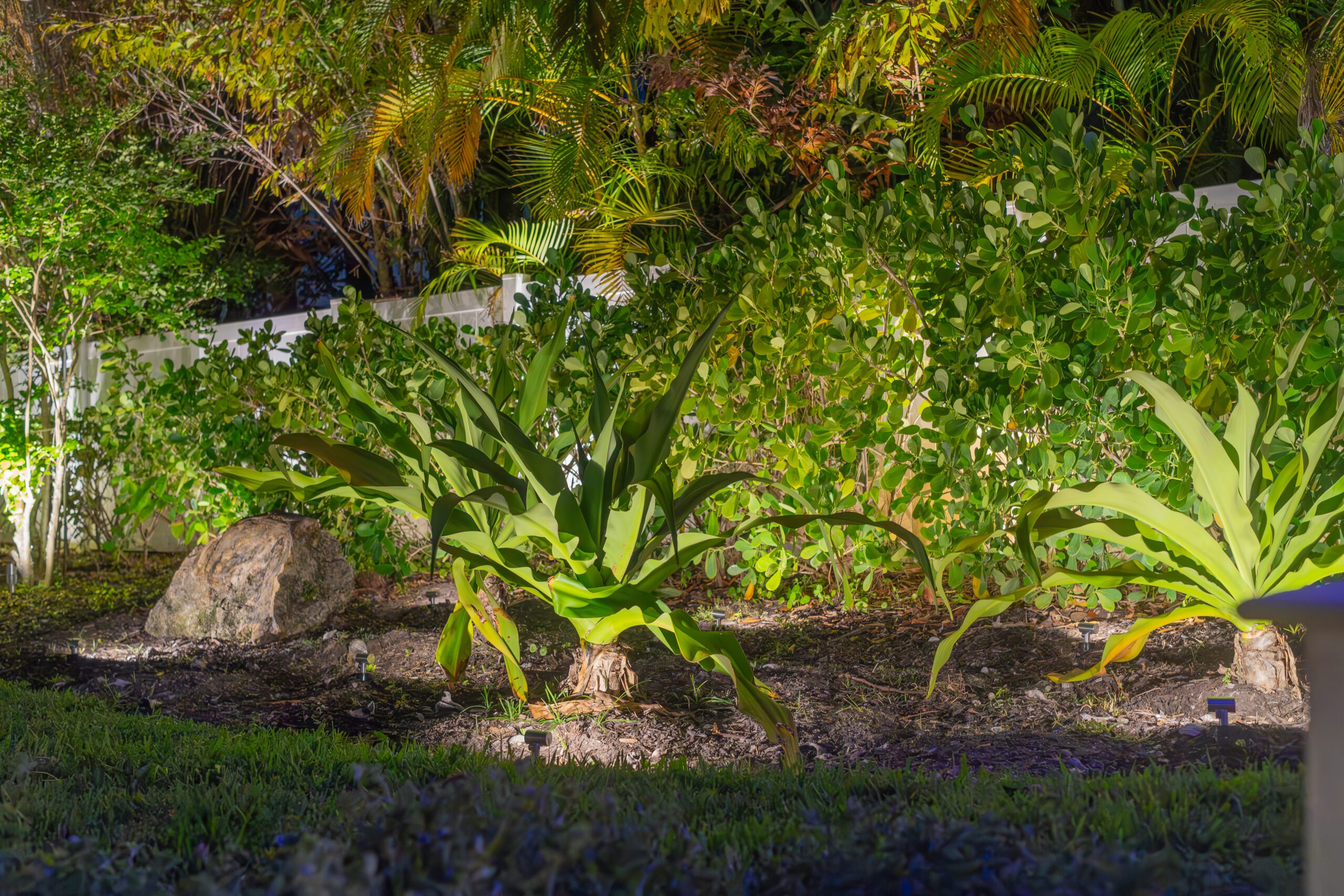

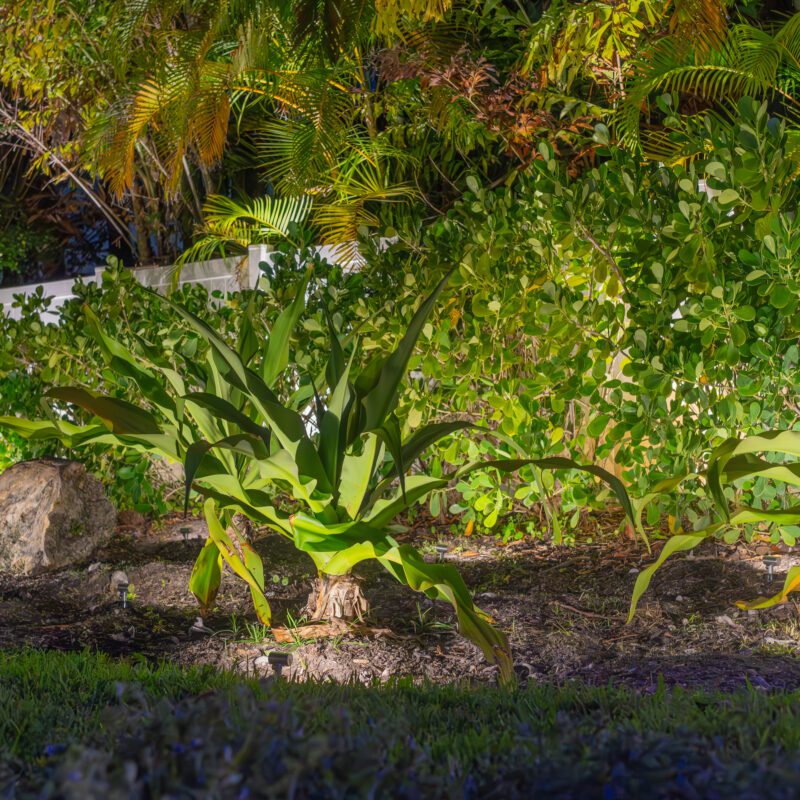

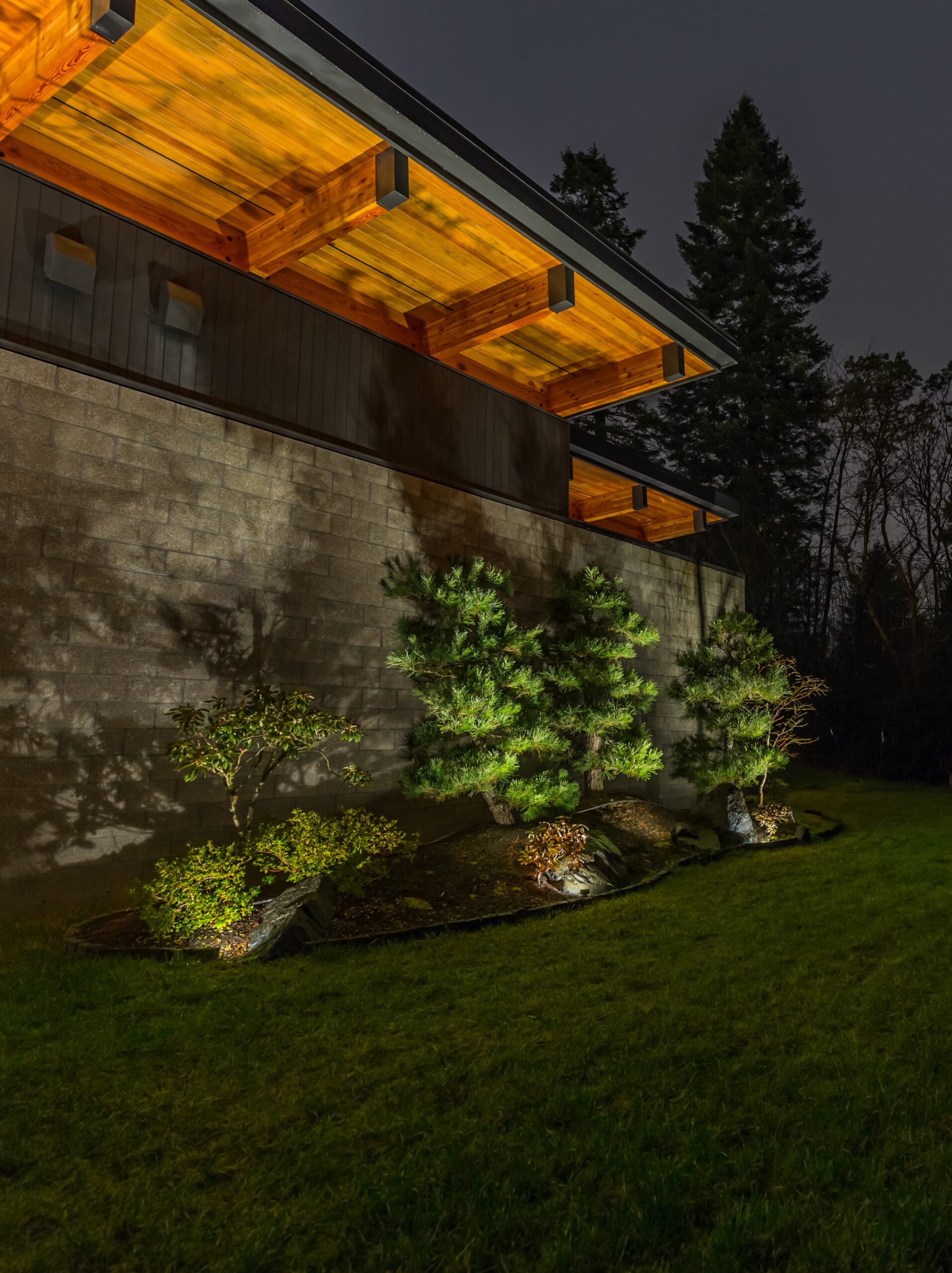

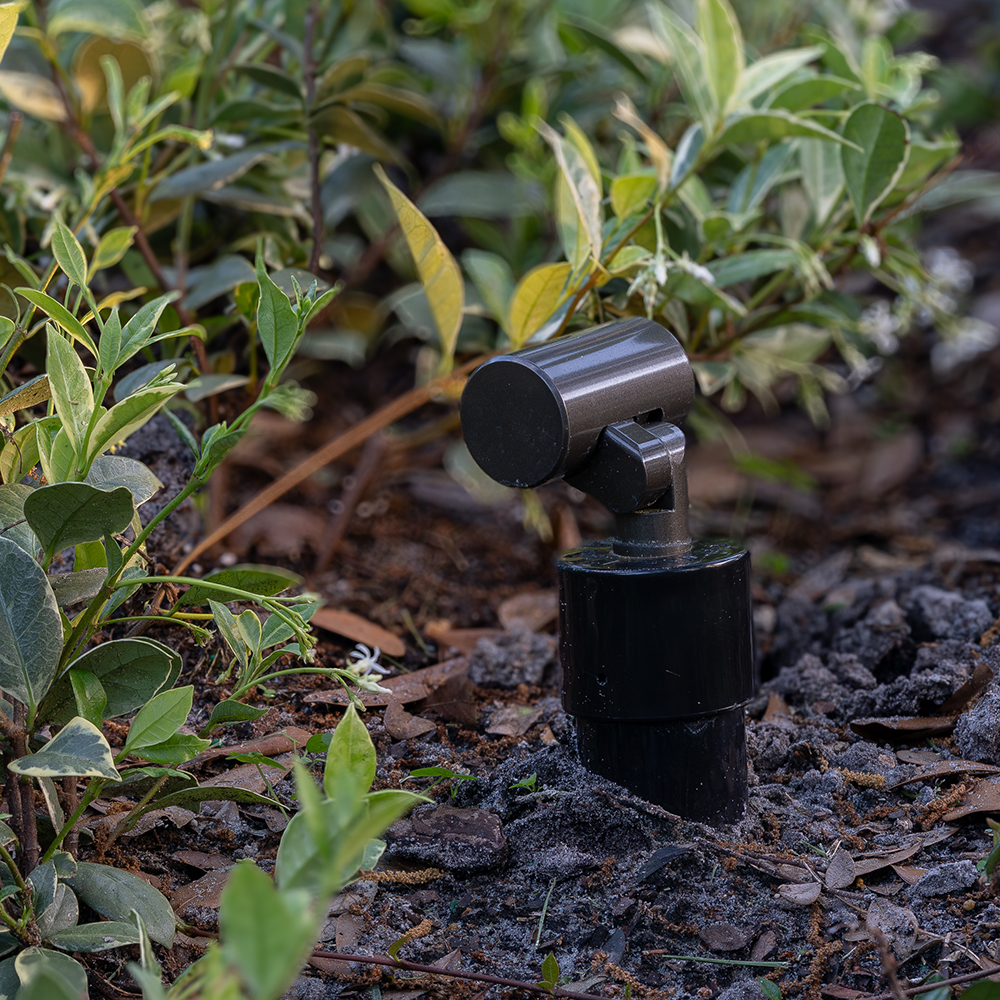

Mini Wall Washer illuminating a textured wall — MWW Installed in garden bed

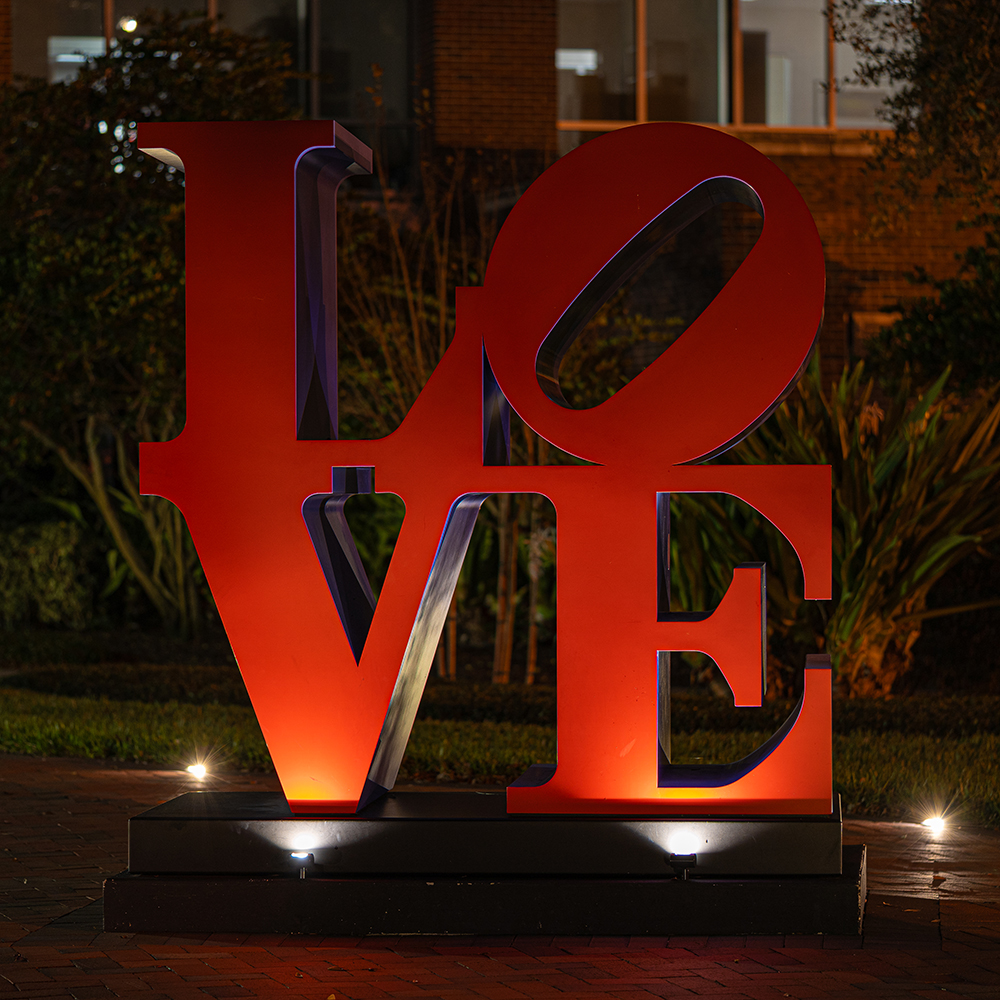

Mini Wall Washer illuminating signage or an entry feature — Signage and entry accents

Best For

Signage, property entrances, boundaries, risers, textured walls, shadowing, silhouettes, and architectural accents where a compact source needs to stay out of sight.

Build

6061-T6 aluminum or C360 brass with 316 stainless hardware, external weatherproof driver, adjustable knuckle, and built-in surge protection.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.

Complete the System

MWW | Mini Wall Washer

finish

wattage

optics

color temp

Clear

Quantity

Optional Add-Ons

Mini Wall Washer Shroud Black

This shroud cover is designed specifically for our Mini Wall Washer, effectively preventing glare and blocking visible light output, allowing for subtle, focused illumination without distraction.

Add one for each fixture added to cart

+ per fixture

Trident Shield Insulated Stake

Spike Length

Upgrade each fixture with a Trident Shield Stake

per fixture

SKU MWW Categories Outdoor Landscape Lighting, Wall Washers and Flood Lights Tags LED, wall washer

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Wall Washers / Mini

Mini Wall Washer

Compact 1.50" LED wall washer with a 120° wide-angle flood optic for signage, entrances, boundaries, textured walls, and architectural accent lighting.

Dimensions & Mounting

Compact 1.50" housing with 180° adjustment.

Includes LV180 stake and mounts with 1/2"-14 NPS fittings. Compatible with Garden Light LED surface, tree, and extension mounting accessories.

Built In / Ships From
Tampa, Florida

Light Engine
U.S.-built LED, external encapsulated driver

Beam Spread
120° wide-angle flood

Mounting Options
LV180 stake included; surface, tree, and extension mounts available

Output
270 lm

Power
2W

Optics
120° Flood

Certifications & Ratings
ETL | IP67

Downloads

Spec SheetPDF

Application Examples

Wide, even illumination from a compact source.

Best For

Signage, property entrances, boundaries, risers, textured walls, shadowing, silhouettes, and architectural accents where a compact source needs to stay out of sight.

Build

6061-T6 aluminum or C360 brass with 316 stainless hardware, external weatherproof driver, adjustable knuckle, and built-in surge protection.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.
