The REV | REVolutionary Spotlight

Quantity

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Revolutionary Series / Directional Accent

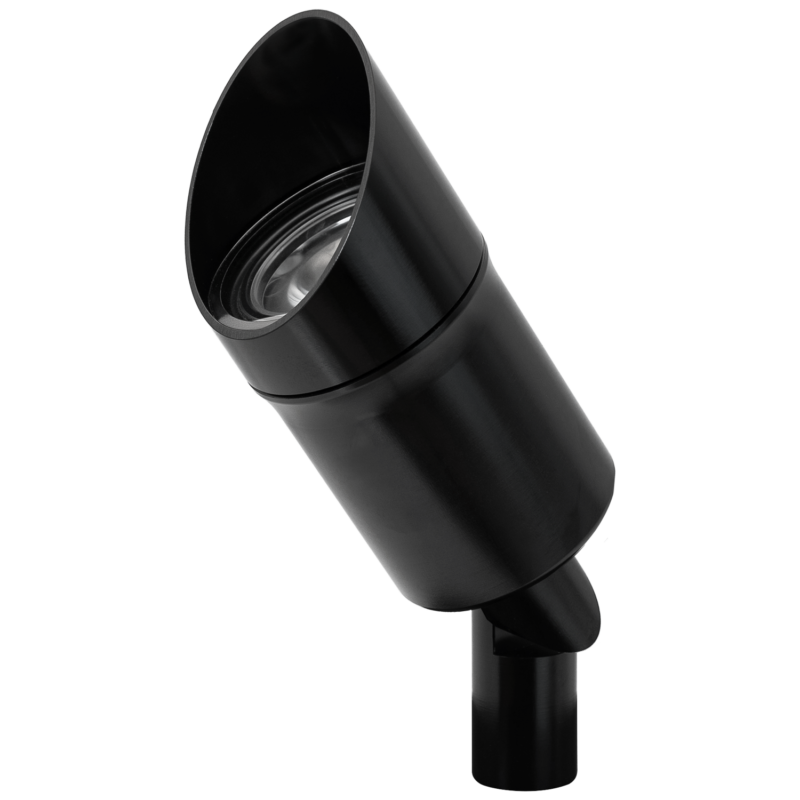

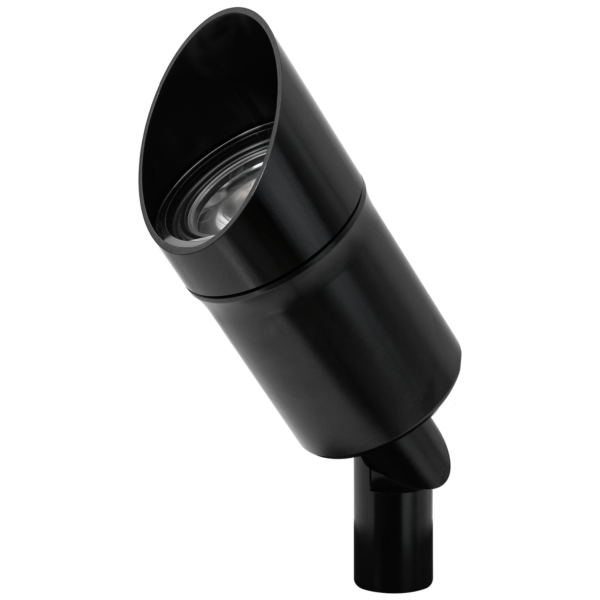

REV Spotlight

Flagship 2.375" integrated LED spotlight with patented XRB-Drive serviceability, precision optics, and Lock-N-Load shroud control for professional uplighting and architectural accent work.

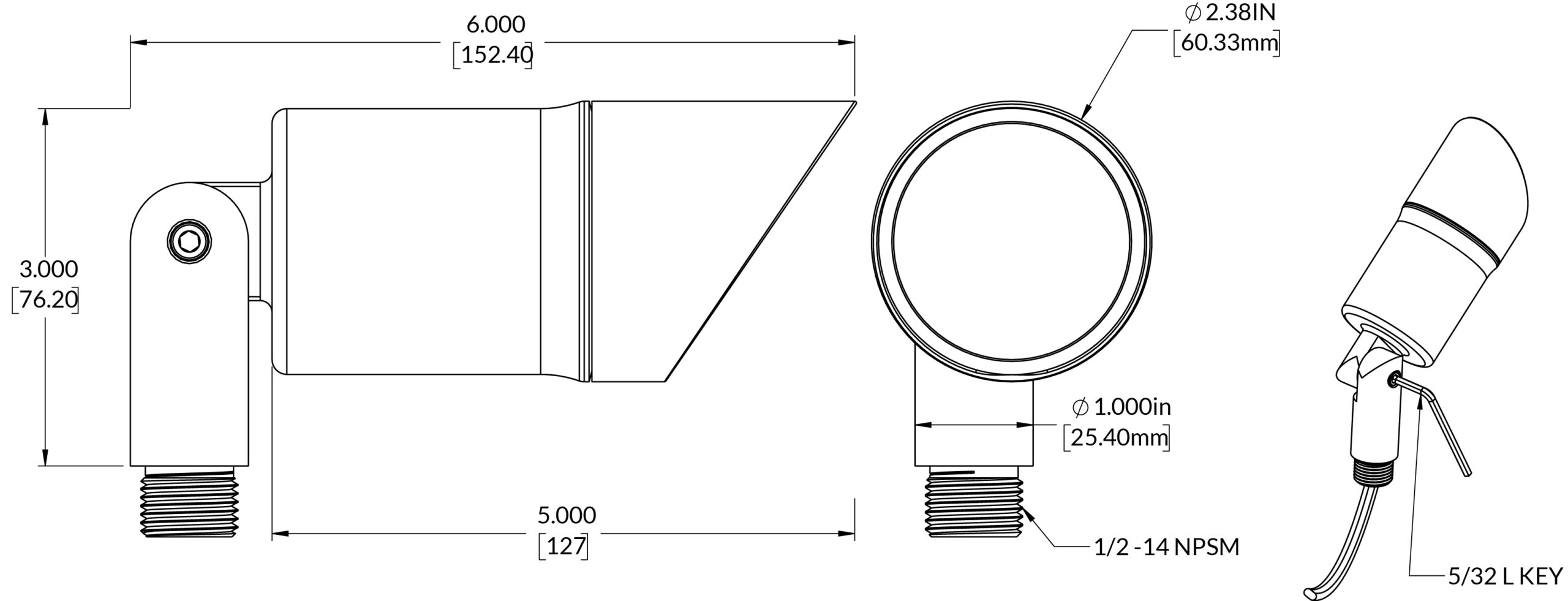

REV Spotlight dimension drawing with fixture diameter and mounting details
Dimensions & Mounting

2.38" body with 1/2″-14 NPS threaded mounting.

The REV mounts with 1/2"-14 NPS threaded fittings and is compatible with Garden Light LED ground, surface, tree, and extension mounting accessories. Ground stake included.

Built In / Ships From
Tampa, Florida
Light Engine
Field-replaceable XRB-Drive
Beam Control
Interchangeable 25°, 40°, and 60° optics
Mounting Options
LV130 Ground stake included; surface, tree, and extension mounts available

Output
260-633 lm
Power
3W-7W
Optics
25° / 40° / 60°
Certifications & Ratings
ETL | IP66
Downloads

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Exploded view of the REV spotlight showing the shroud, lens, O-rings, optic, XRB-Drive module, and fixture body
XRB-Drive / Lock-N-Load System

Designed to service the parts that matter.

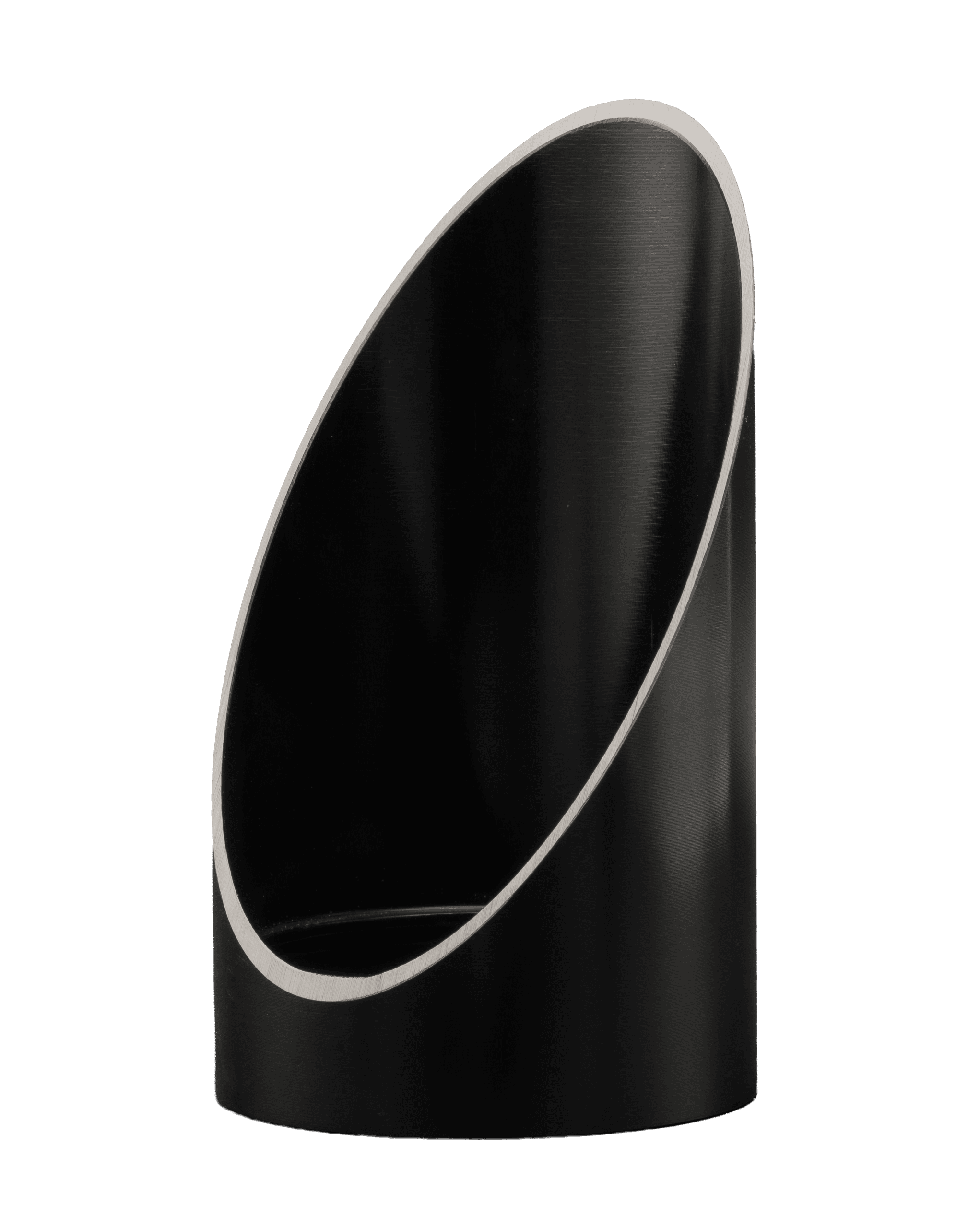

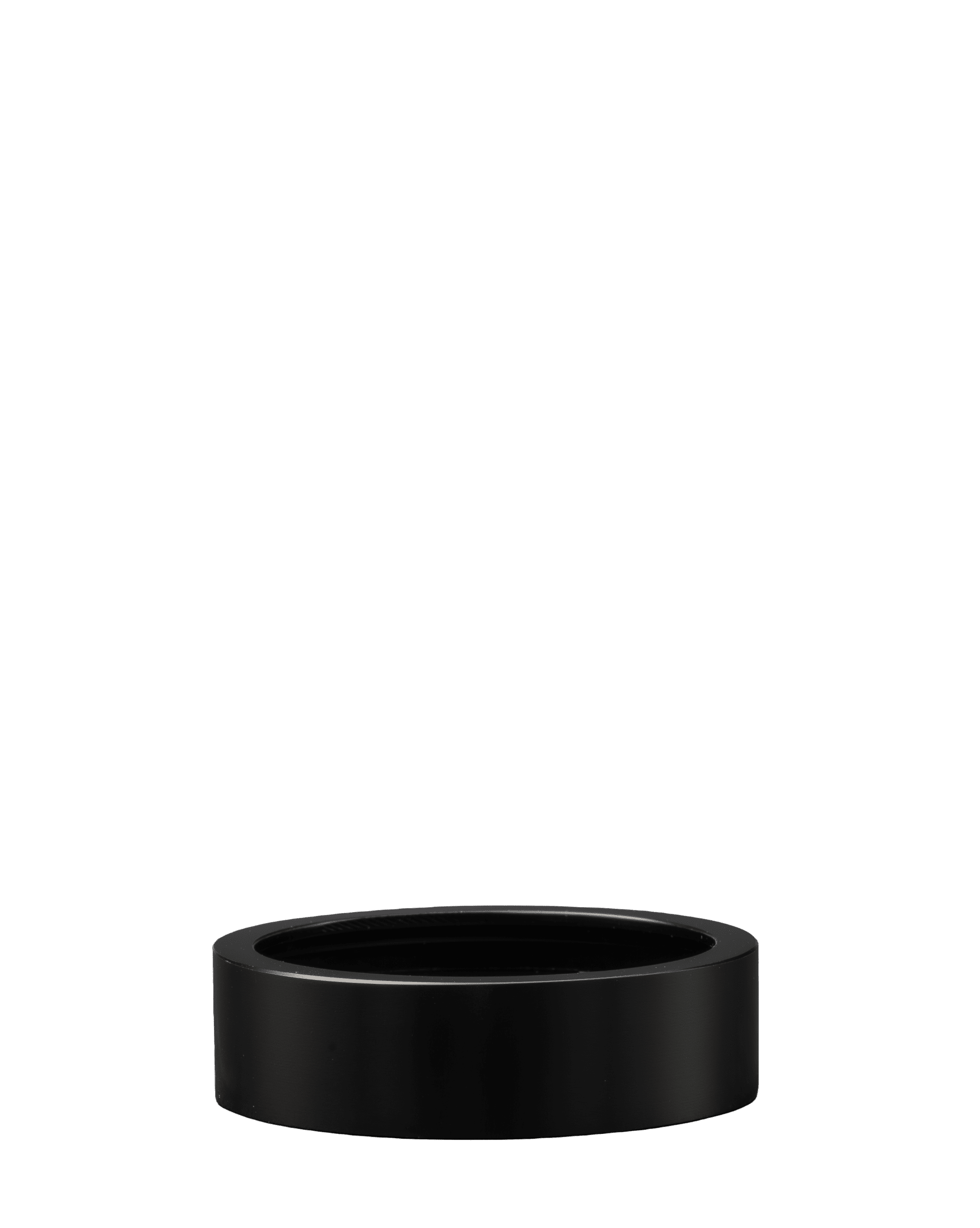

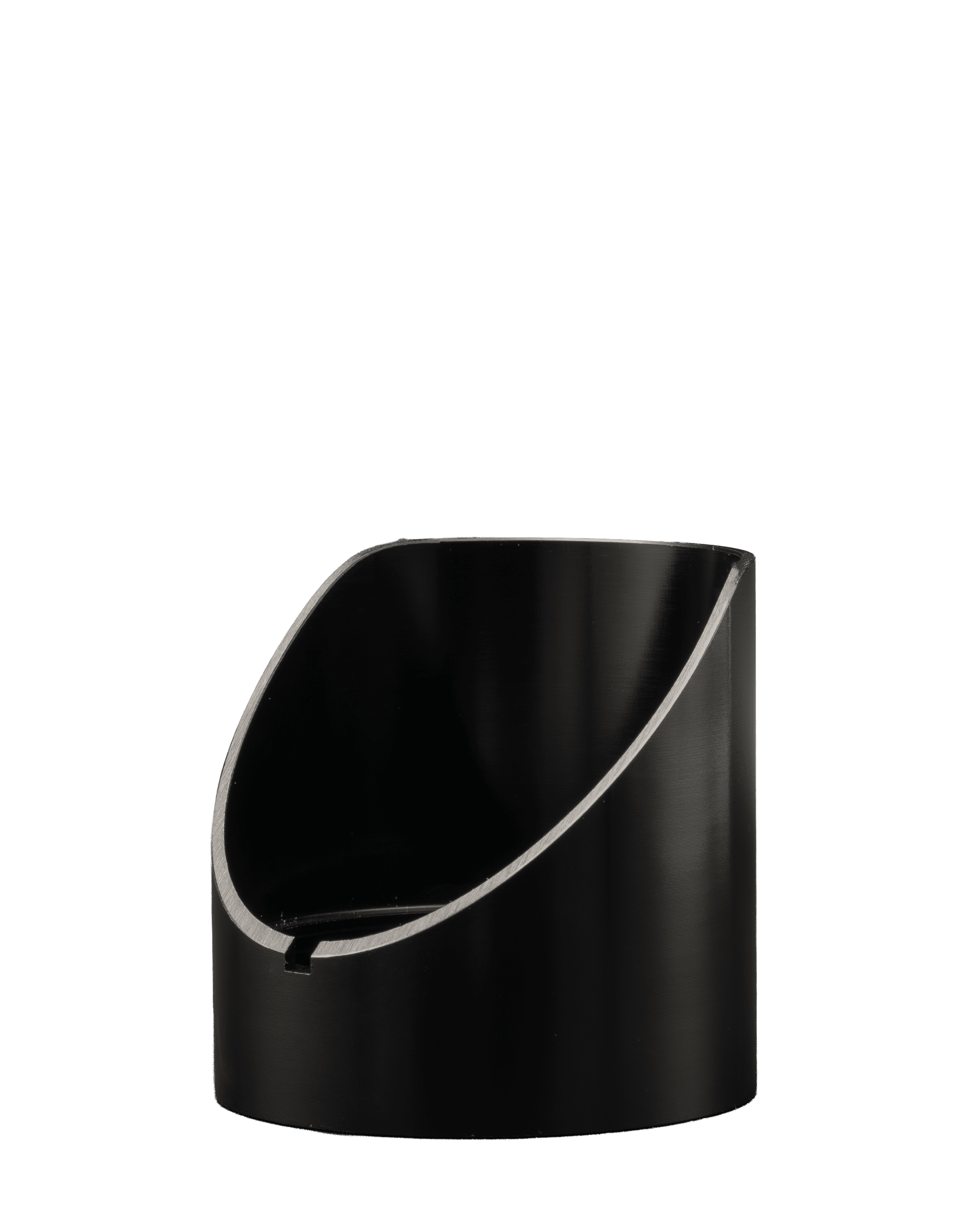

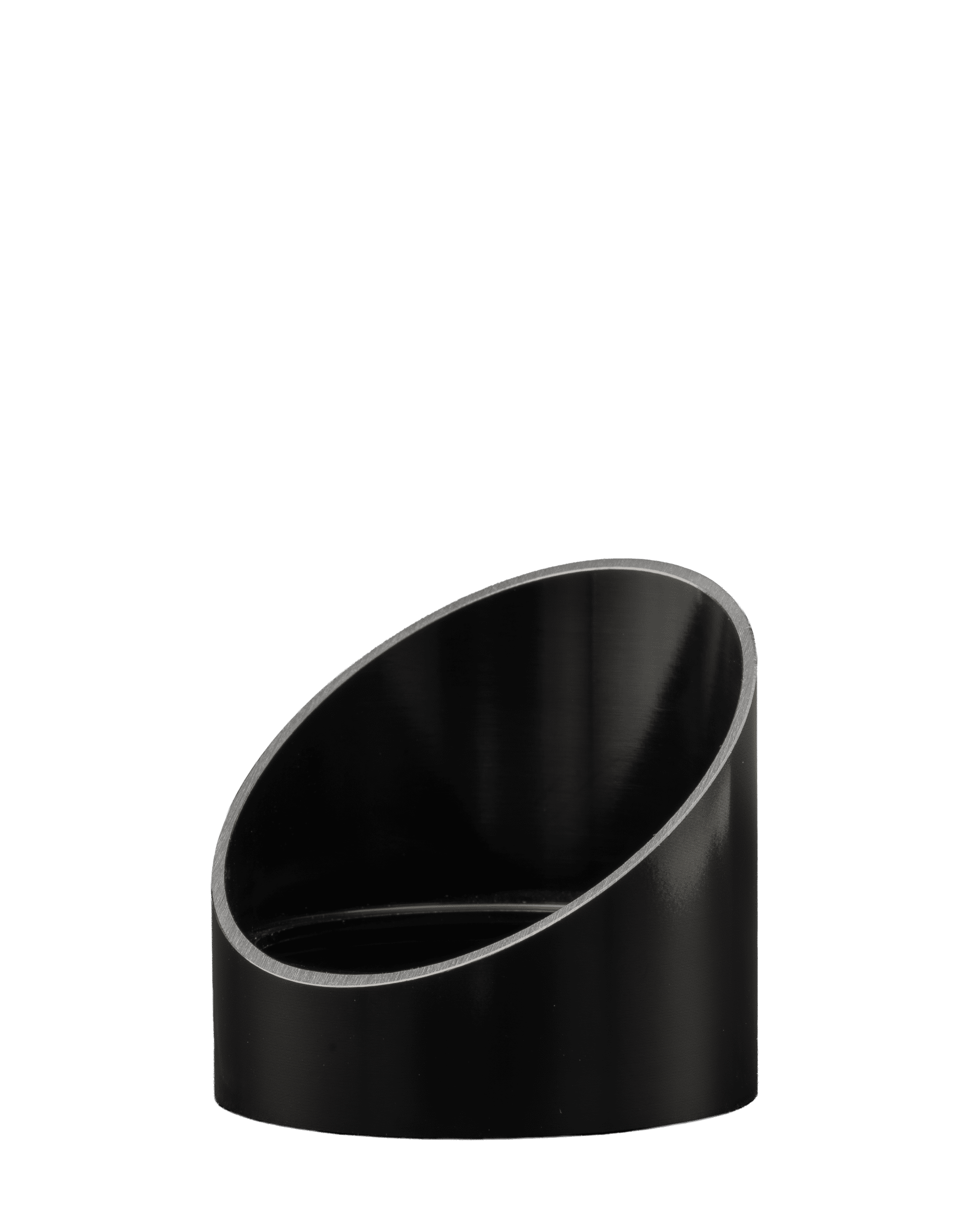

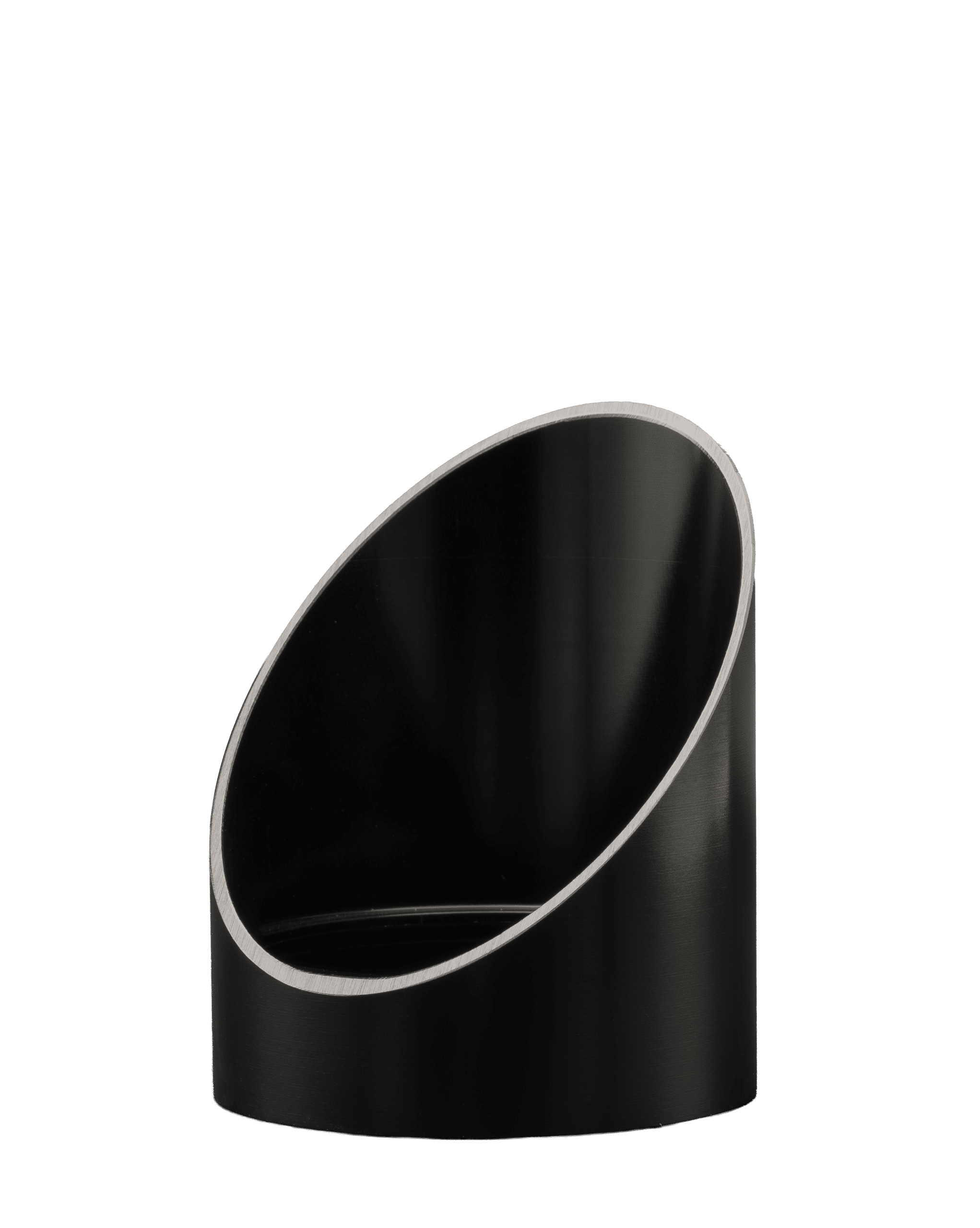

The REV uses a patented quick-connect XRB-Drive, removable lens, replaceable O-rings, interchangeable optics, and swappable Lock-N-Load shrouds so the fixture can be maintained in the field without rewiring or removing the body.

Application Examples

Premium uplighting with controlled beam options.

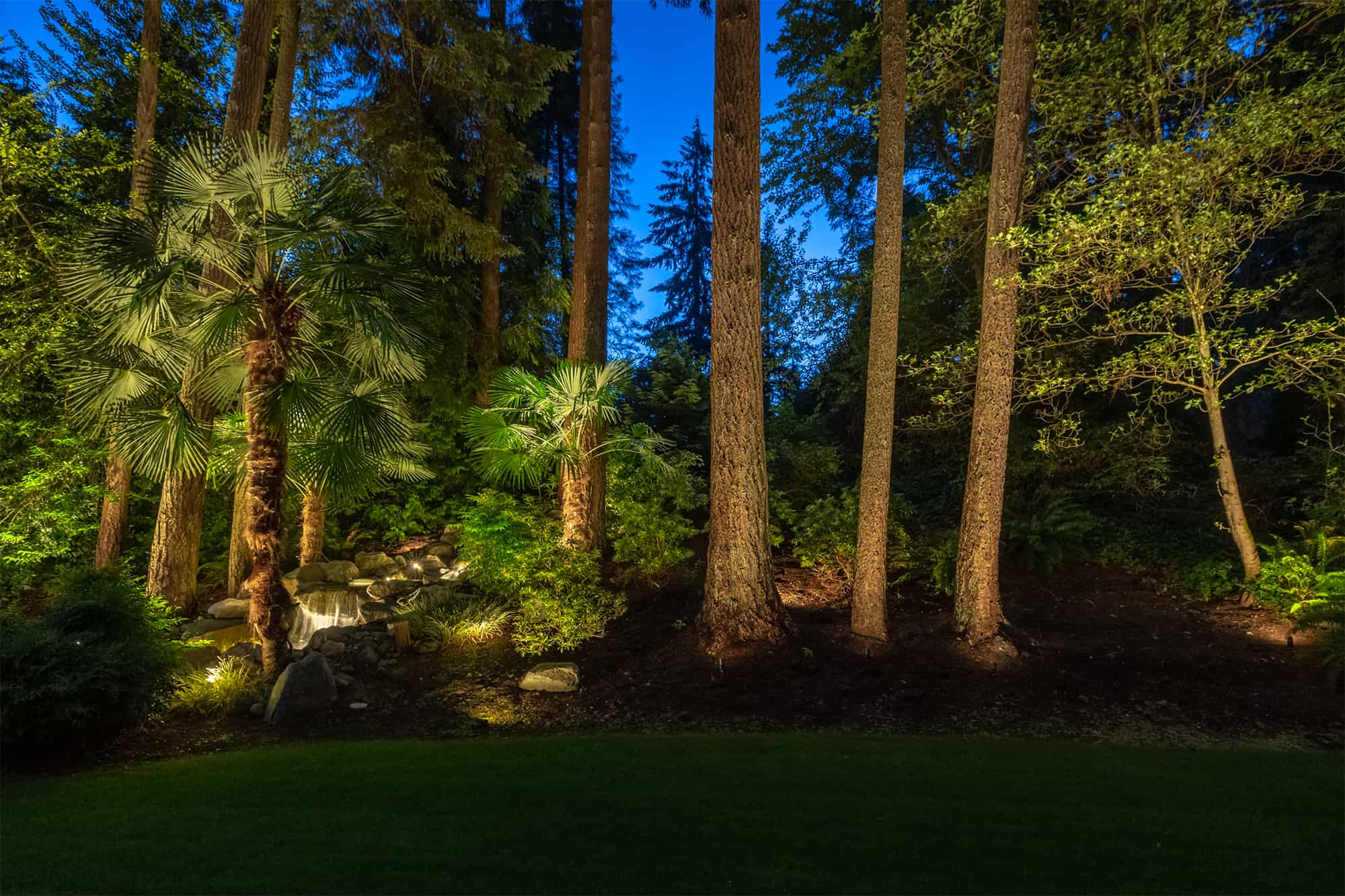

REV Spotlight uplighting a tree canopy

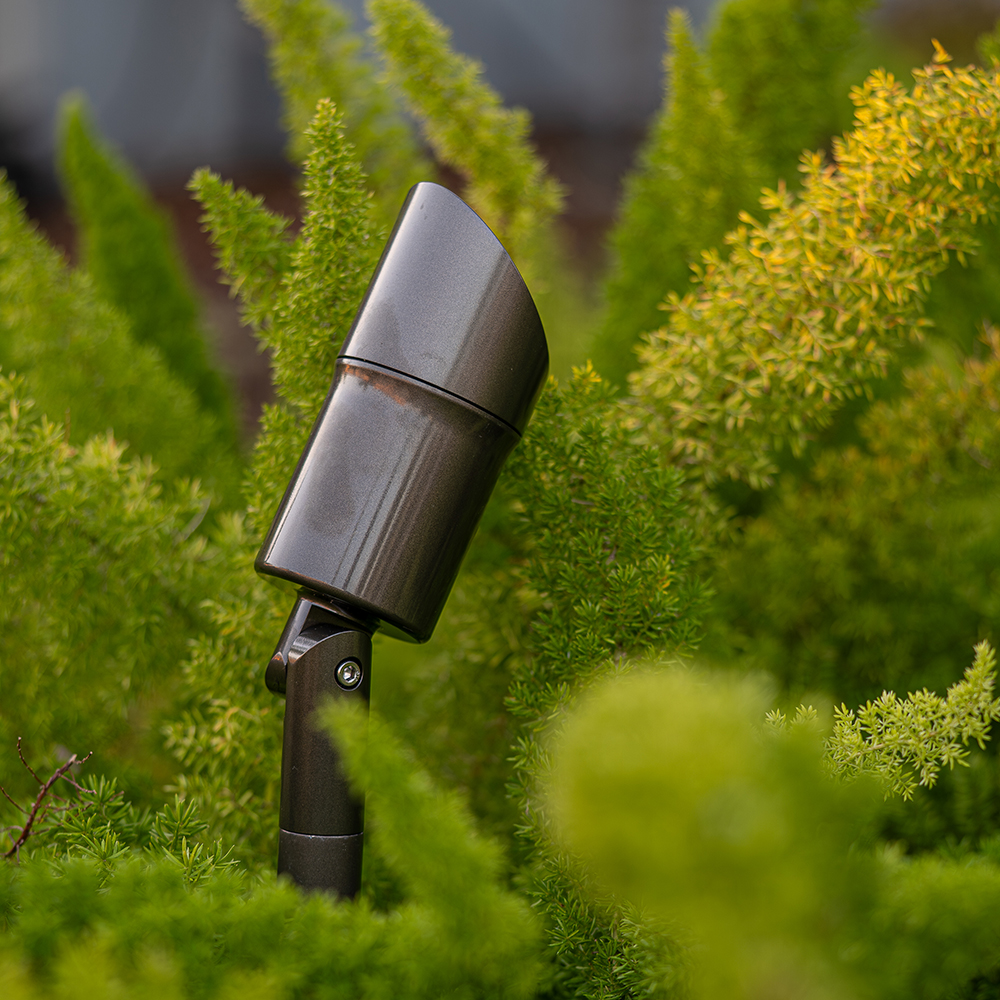

The REV spotlight installed in foxtail fern bed

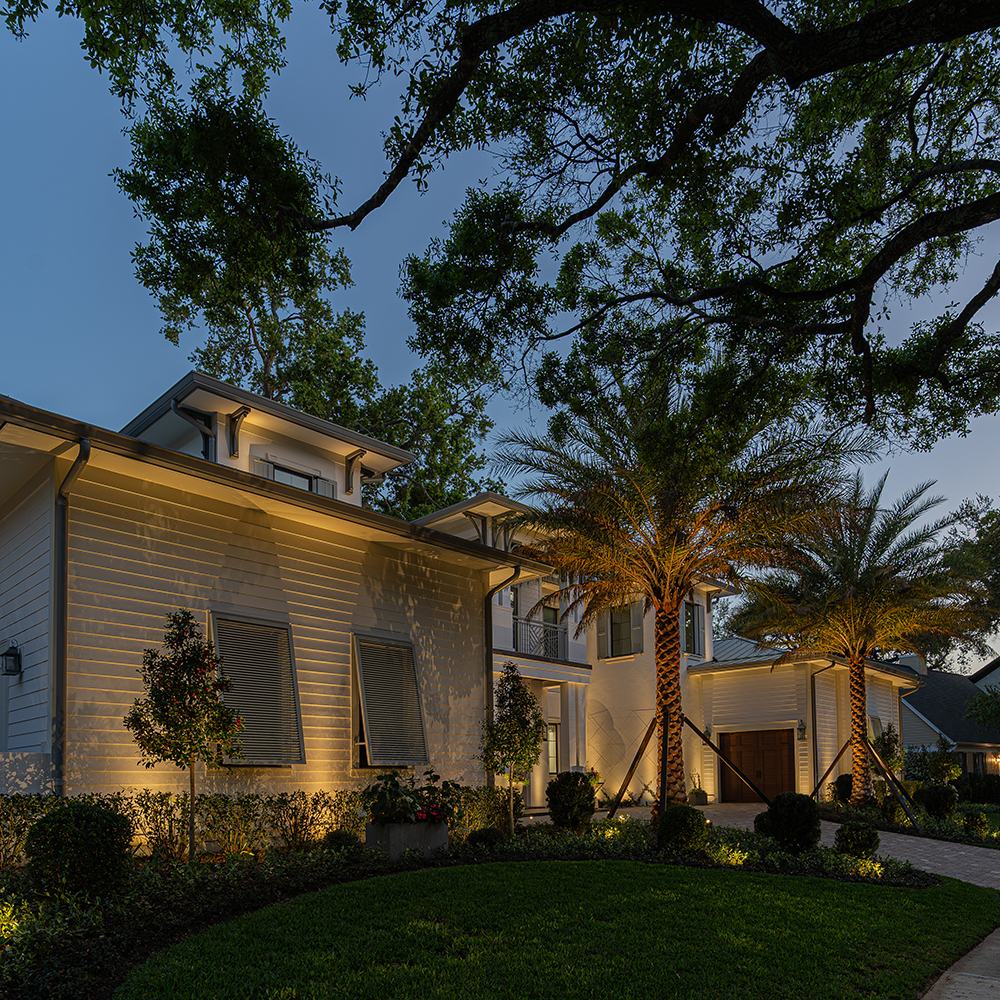

REV Spotlight highlighting architectural columns or textured surfaces
Architectural accents

Best For

Premium uplighting, highlighting, columns, trees, medium-scale plants, textured walls, and architectural accent lighting. Built for uplighting; downlighting builds are available upon request.

Build

CNC-machined 6061-T6 aluminum with 316 stainless hardware, built-in surge protection, passive thermal management, and tool-free field serviceability.

Availability

3000K stocked. 2700K available by order. Standard fixtures are non-dimmable; dimmable configurations are available upon request.
