Wall Washer in Black
Wall Washer in Architectural Bronze
Wall Washer in Stainless Aluminum
Wall Washer in Brass
WW | Wall Washer - Image 5
WW | Wall Washer - Image 6
WW | Wall Washer - Image 7

WW | Wall Washer

Quantity
Optional Add-Ons

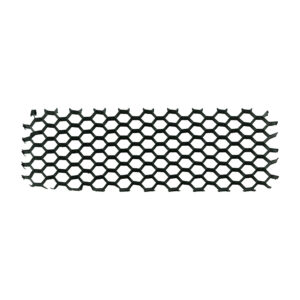

Honey Comb Louver For Wall Washer
Factory-Installed Honeycomb Louver
Aluminum honeycomb louver designed to reduce glare and diffuse light. When selected, the louver is factory-installed to maintain its IP66 waterproof rating and warranty.
+ per fixture
SKU WW Categories , Tags ,

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Log In to Your Account
Become a Dealer

Wall Washers / Large

Wall Washer

Full-size integrated LED wall washer with a wide 120° flood optic for signage, property entrances, textured walls, and architectural surfaces.

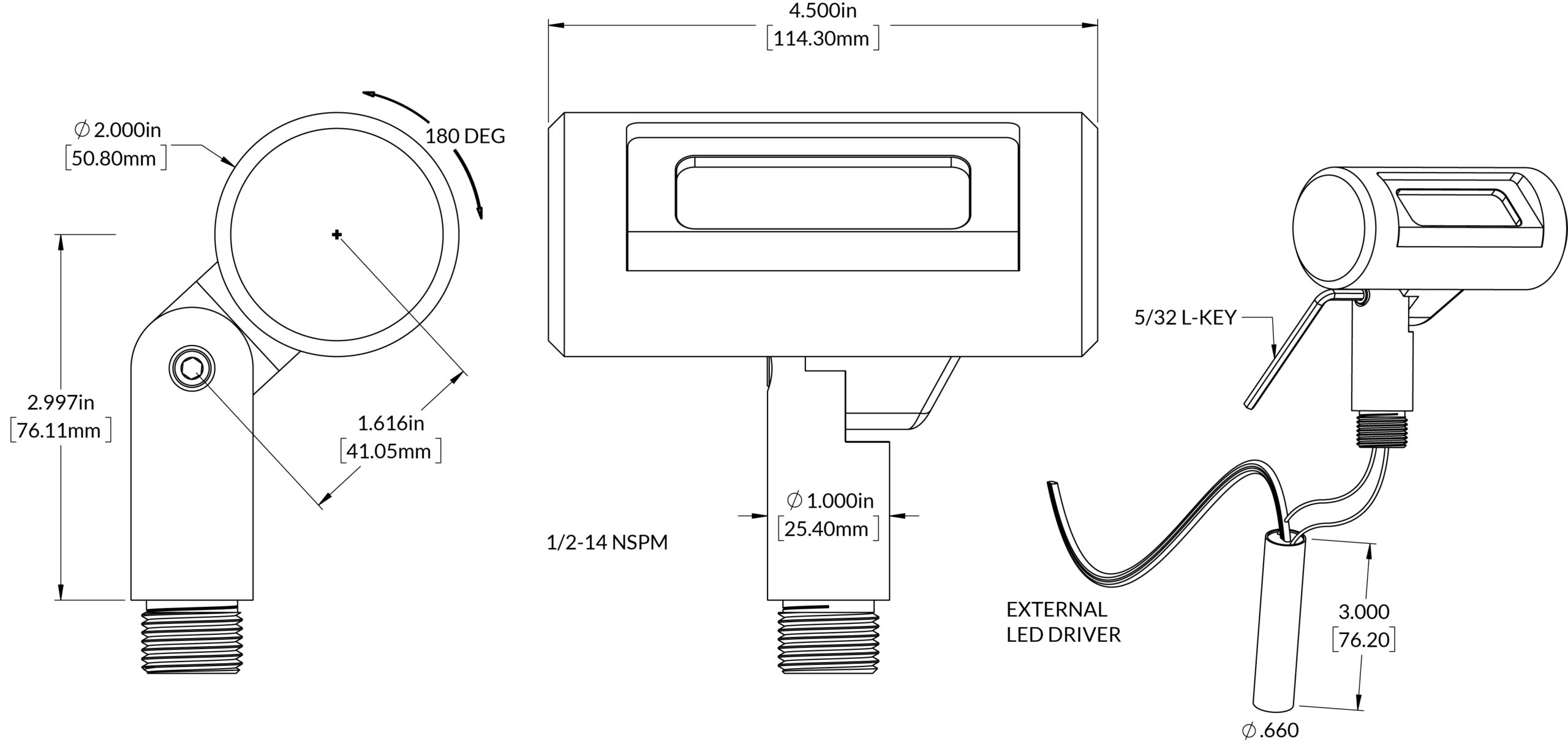

Wall Washer dimension drawing
Dimensions & Mounting

2.00″ diameter housing with 180° adjustment.

Includes LV180 stake and mounts with 1/2″-14 NPS fittings. Compatible with Garden Light LED surface, tree, and extension mounting accessories.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated LED, field-serviceable
Beam Spread
120° wide flood
Mounting Options
LV180 stake included; surface, tree, and extension mounts available
Output
175-727 lm
Power
2W-9W
Optics
120° Flood
Certifications & Ratings
ETL | IP67
Downloads


Spec SheetPDF


Install GuidePDF


IES FilesZIP


IES FilesPDF ZIP

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

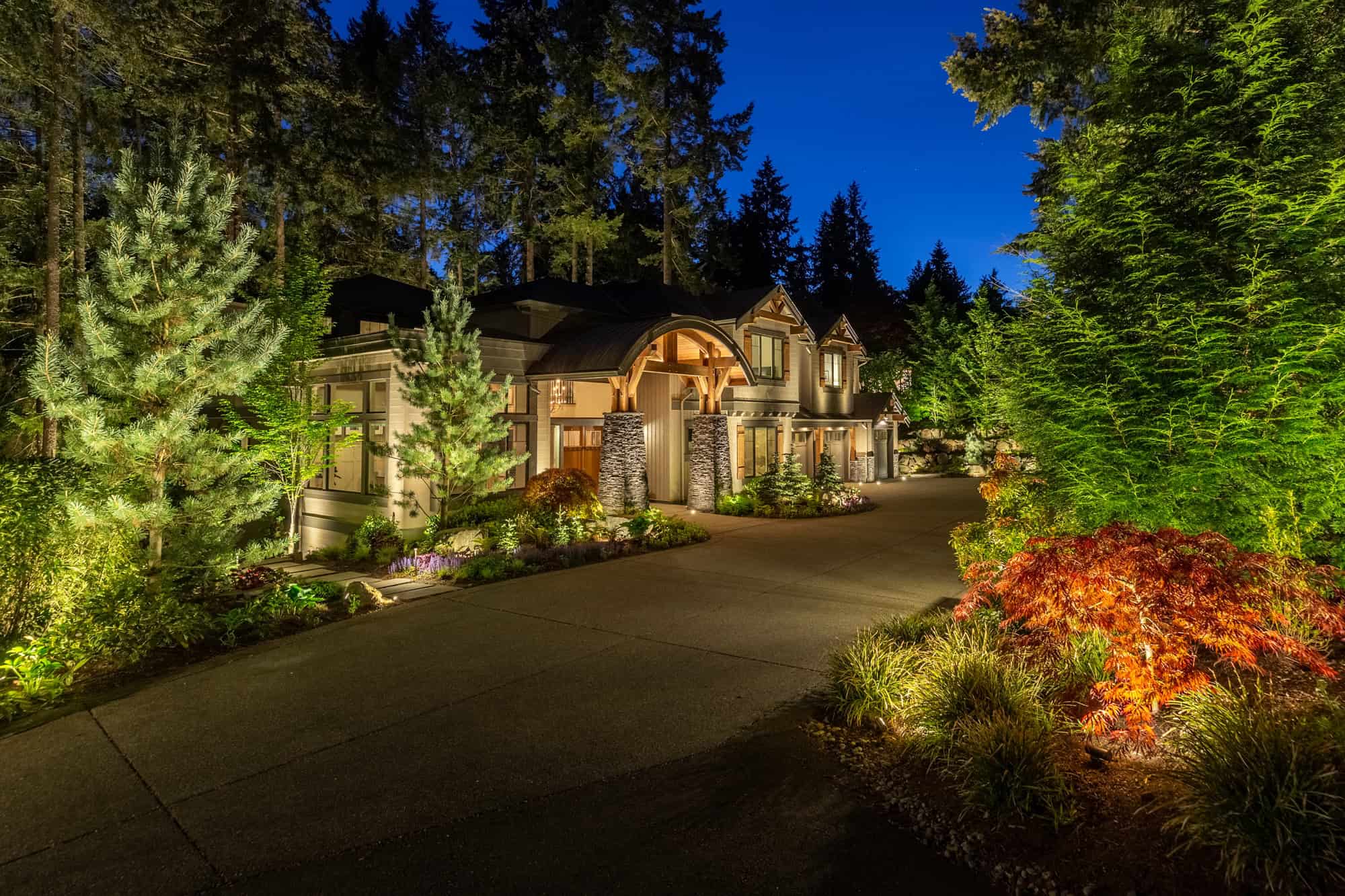

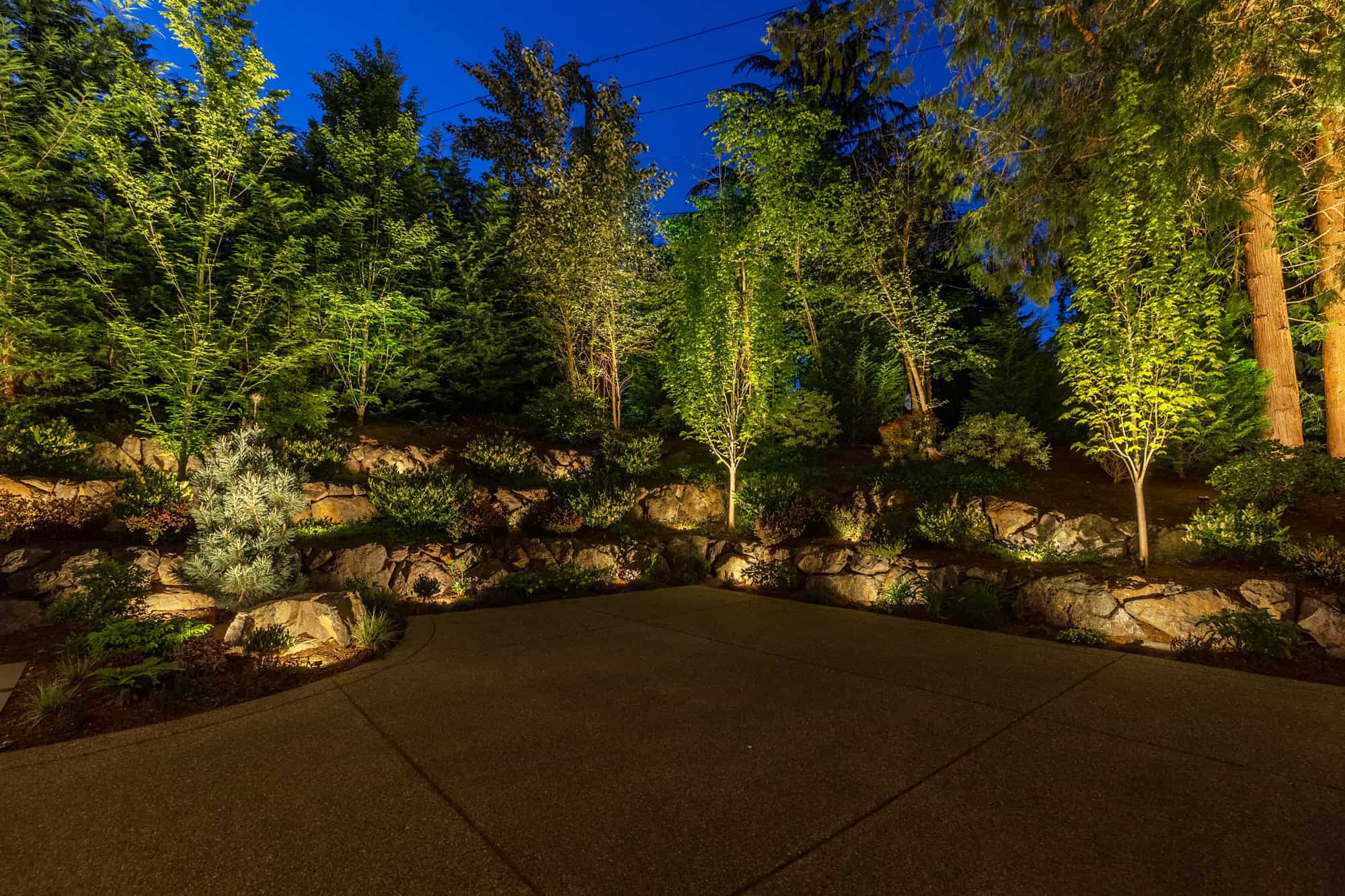

Application Examples

Wide, even illumination for landscape and architectural surfaces.

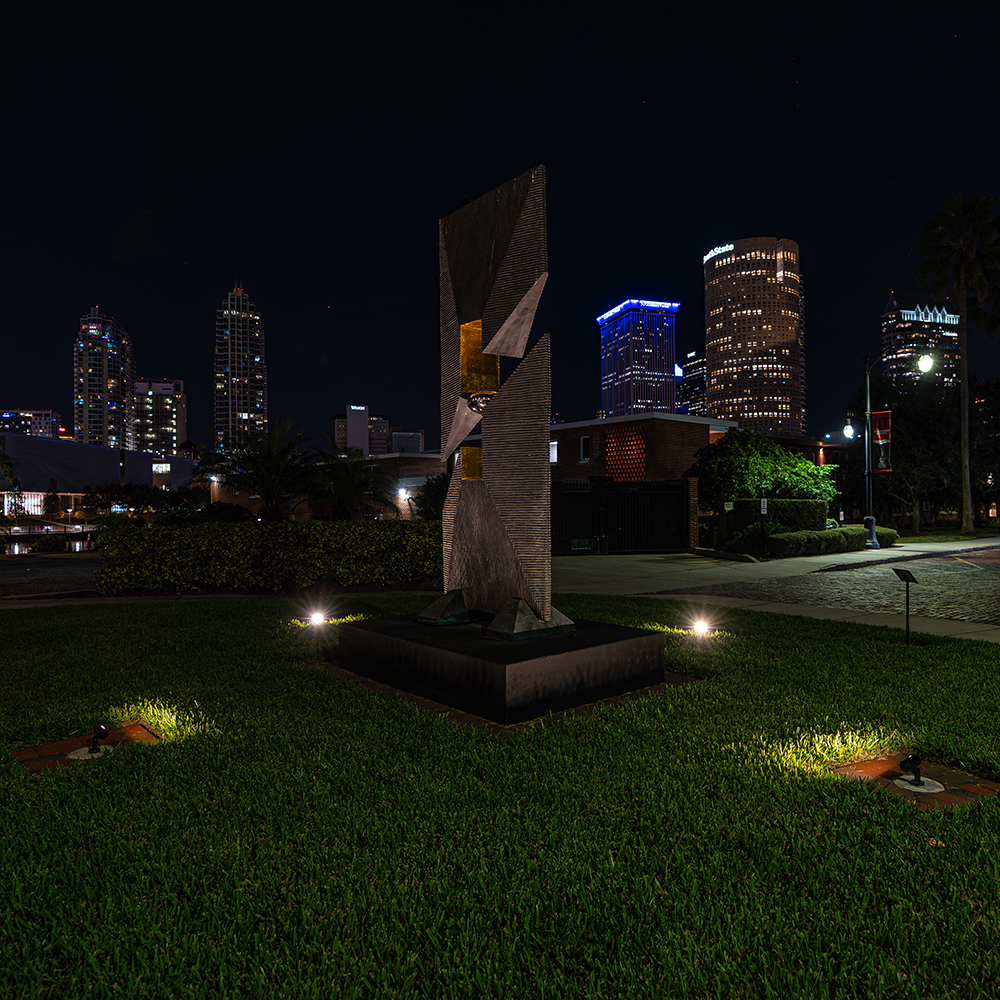

Wall Washer illuminating a public art sculpture and surrounding landscape
Public art and sculpture uplighting

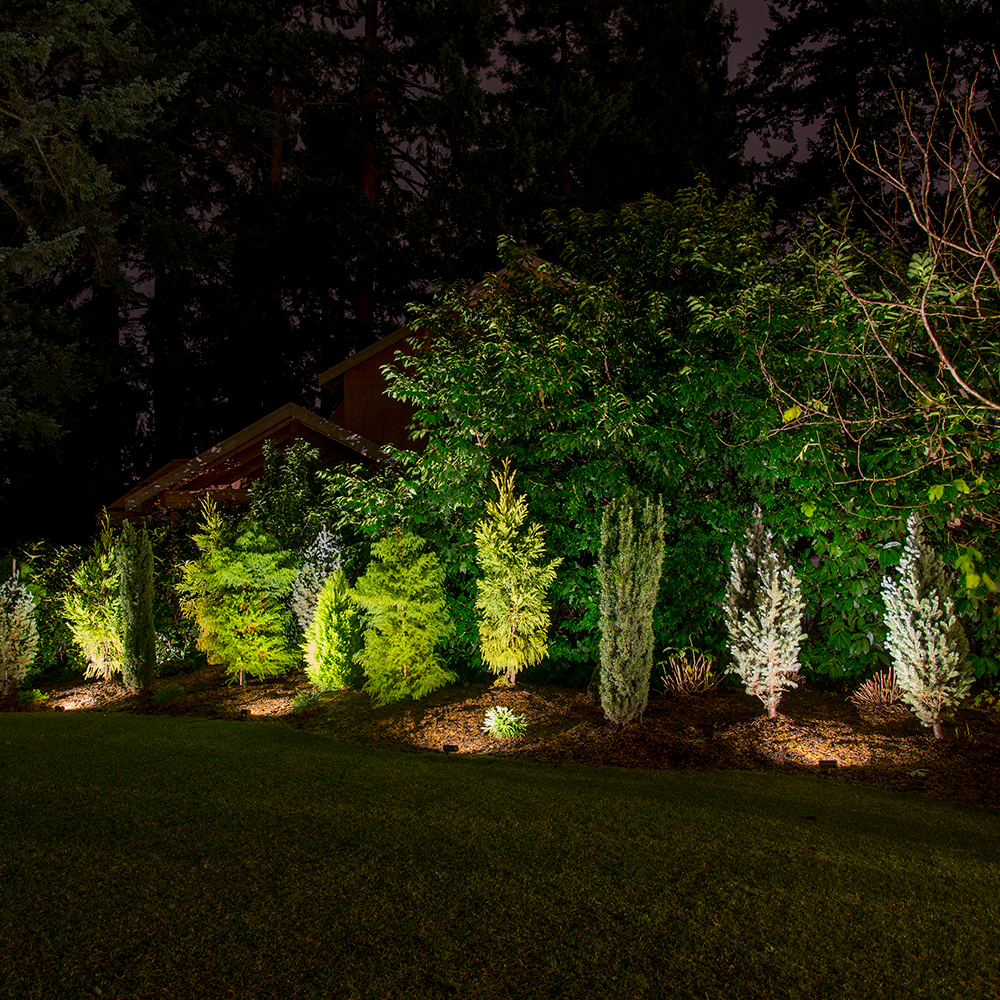

Wall Washer creating broad illumination across layered shrubs and small trees
Layered planting bed illumination
Best For

Signage, property entrances, textured walls, structures, and wide architectural accent lighting.
Build

6061-T6 aluminum or C360 brass with 316 stainless hardware and built-in surge protection.
Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.
