Micro Series / Specialty Light

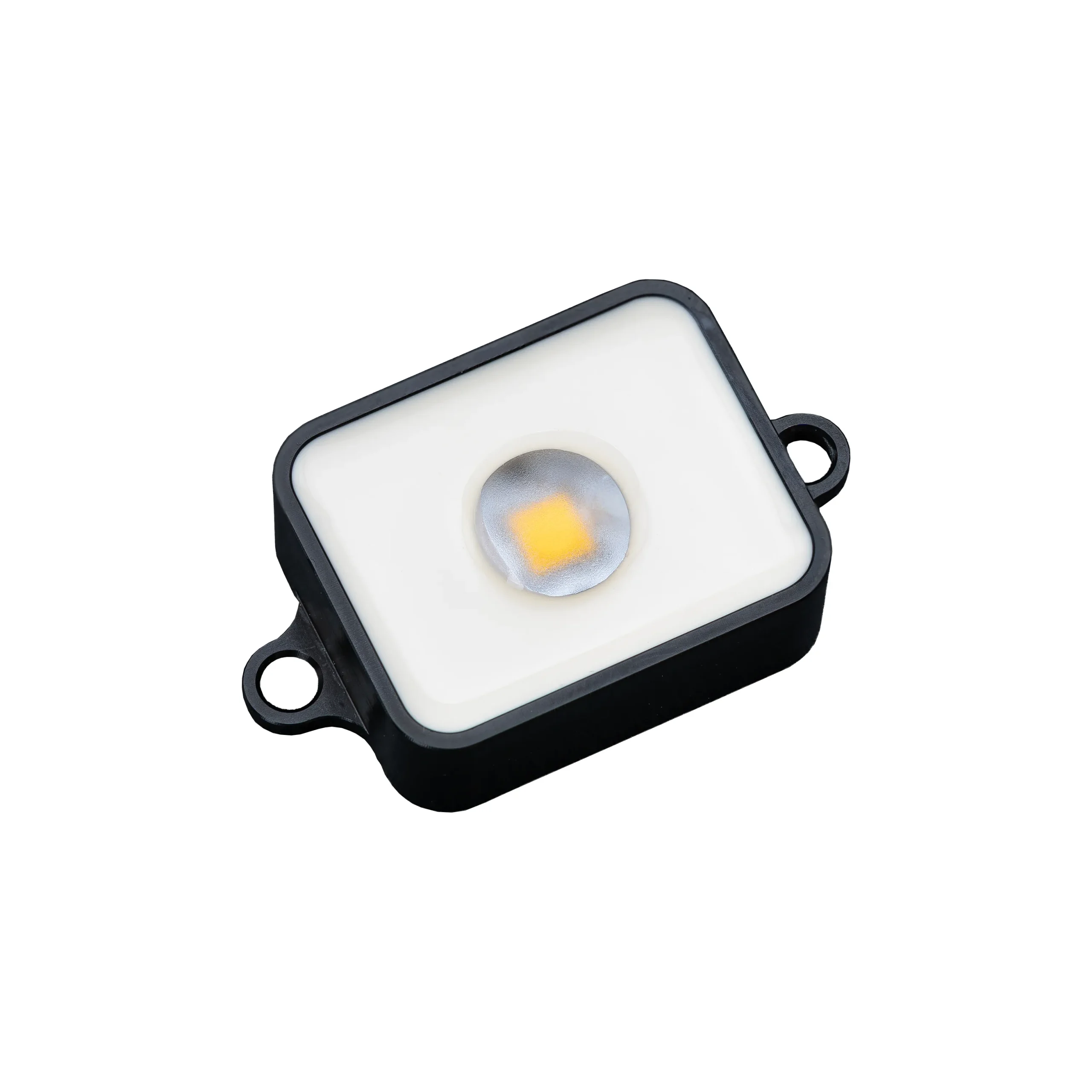

MM RAIL Micro Max Rail

Ultra-compact 2W Micro Max Rail specialty light built for narrow rails, ledges, trim, posts, and tight architectural details where standard side tabs can crowd the install surface.
MM RAIL Micro Max Rail dimension drawing
Dimensions & Mounting

1.25" x 1.00" x 0.56" housing with rail-friendly side tabs.

Unlike the standard MM15-II, the MM RAIL places its mounting holes along the longer 1.25" side. That leaves the 1.00" side clear, making it easier to install on narrow rails, ledges, beams, and trim while keeping the fixture body tight to the detail.

Built In / Ships From
Tampa, Florida
Light Engine
U.S.-made LED and driver
Mounting Advantage
Side-mounted tabs for narrow rails and trim
Beam Spread
120° wide-angle, no lateral bias
Output
84 lm
Power
2W
Optics
120° Wide
Certifications & Ratings
ETL | IP67
Micro Series Guide

Which Micro Series fixture is right for your application?

Compare beam patterns, mounting styles, outputs, and fixture sizes across the Micro Series before choosing the best fit for tight architectural details, steps, ledges, railings, and specialty accent work.

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Best For
Narrow rails, handrails, ledges, beam faces, trim, posts, step returns, benches, shelves, gazebos, outdoor kitchens, and tight details where the standard MM15-II mounting tab orientation is not the best fit. Luminaire must not be subjected to direct sunlight.
Build
CNC-machined 6061-T6 aluminum with marine-grade black anodized finish, 316 stainless hardware, fully potted IP67 housing, built-in surge protection, and 90" 22 AWG tinned copper lead wire.
Installation Fit
Use MM RAIL when the fixture needs to sit on a narrow 1.00" edge. Mounting holes run along the longer 1.25" side and use #6/M4 fasteners through 0.150" holes.
Availability
5-7 Day Build Time.
