MM15-II | Micro Max

Quantity

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Micro Series / Specialty Light

MM15-II Micro Max

Ultra-compact 1W LED specialty light for railings, ceiling beams, walkways, decks, gazebos, planters, fire pits, benches, and tight architectural details.

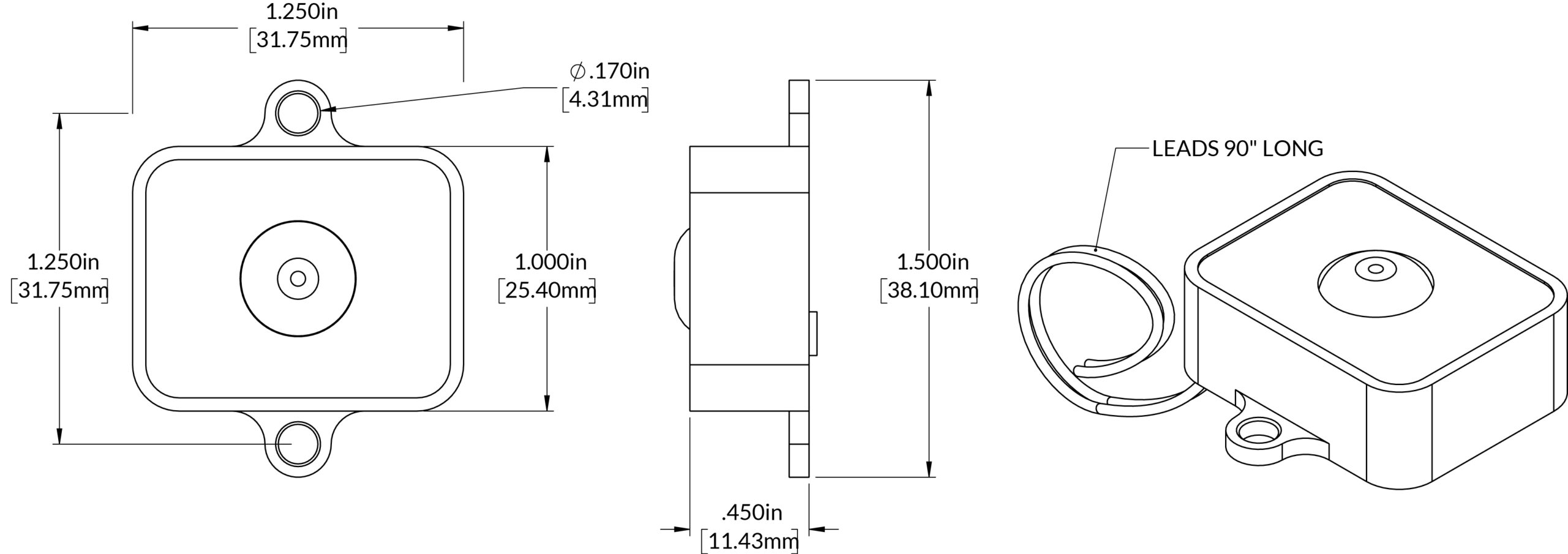

Micro Max dimension drawing
Dimensions & Mounting

1.25" x 1.00" x 0.56" micro housing.

Integrated machined dual mounts use 0.170" holes with #8/M4 fasteners. Includes 90" 22 AWG tinned copper lead wire for concealed, close-detail installation.

Built In / Ships From
Tampa, Florida
Light Engine
U.S.-made LED and driver
Beam Spread
120° wide-angle, no lateral bias
Mounting Options
Integrated dual mounts; front and full shields available

Output
84 lm
Power
1W
Optics
120° Wide
Certifications & Ratings
ETL | IP67
Downloads

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

Small-scale accent lighting for tight architectural details.

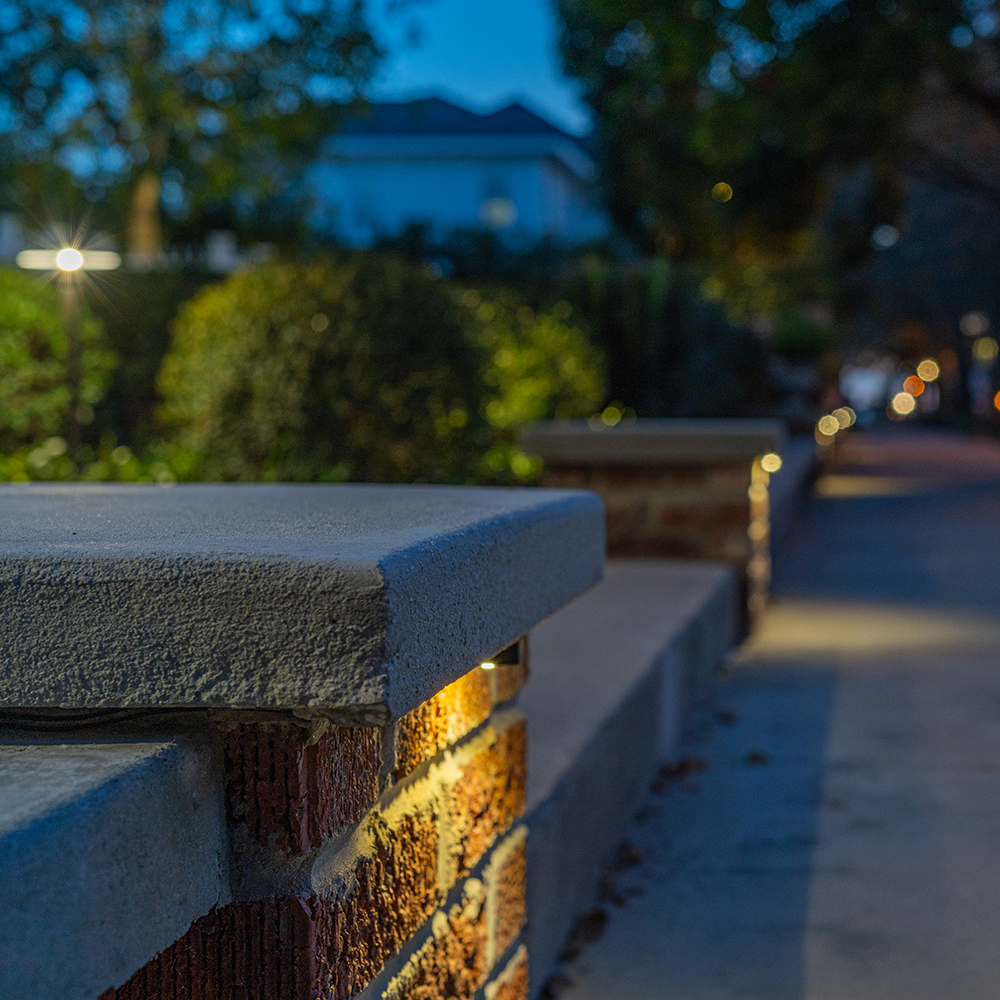

Micro Max installed for compact exterior accent lighting

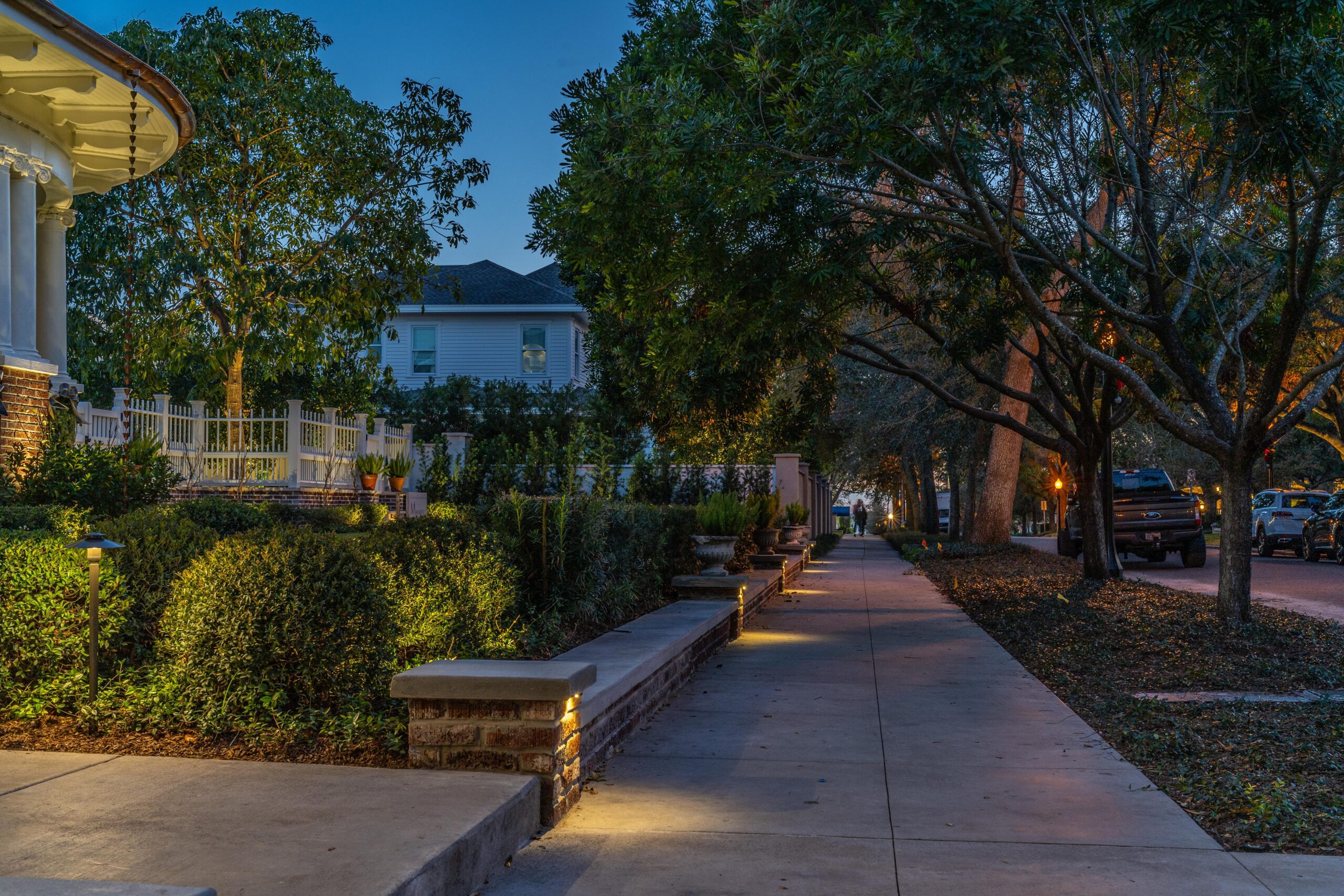

Exterior detail lighting

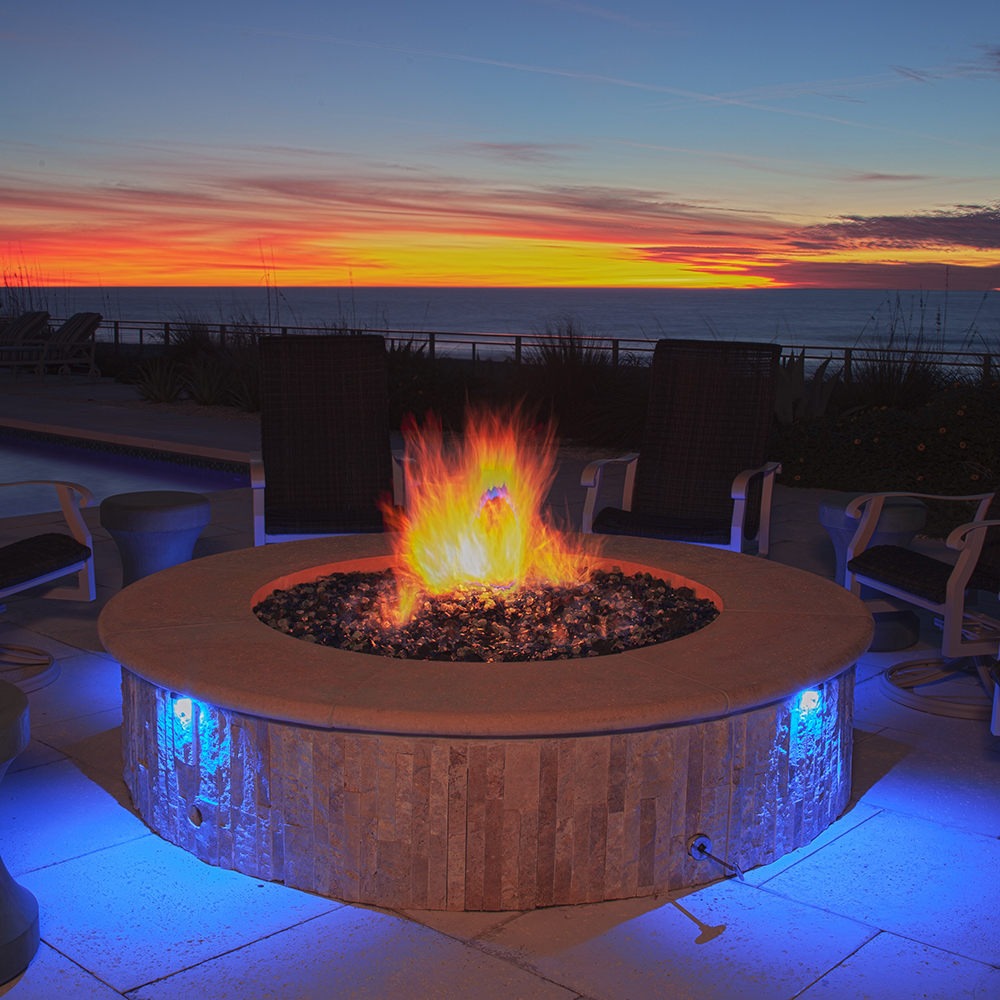

Micro Max used for low-profile landscape and architectural accent lighting
Low-profile accent lighting

Best For

Railings, ceiling beam downlighting, walkways, decks, gazebos, statues, planters, lanais, fences, fire pits, benches, and other tight details. Luminaire must not be subjected to direct sunlight.

Build

CNC-machined 6061-T6 aluminum or C360 brass with 316 stainless hardware, fully potted IP67 housing, built-in surge protection, and optional front or full glare shields.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.
