MS | Mini Spotlight with Knuckle

Quantity

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Mini Series / Directional & Accent

MS Mini Spotlight with Knuckle

Compact 1.125" integrated LED spotlight with an adjustable knuckle for tight-space uplighting, wall grazing, planter accents, and architectural detail work.

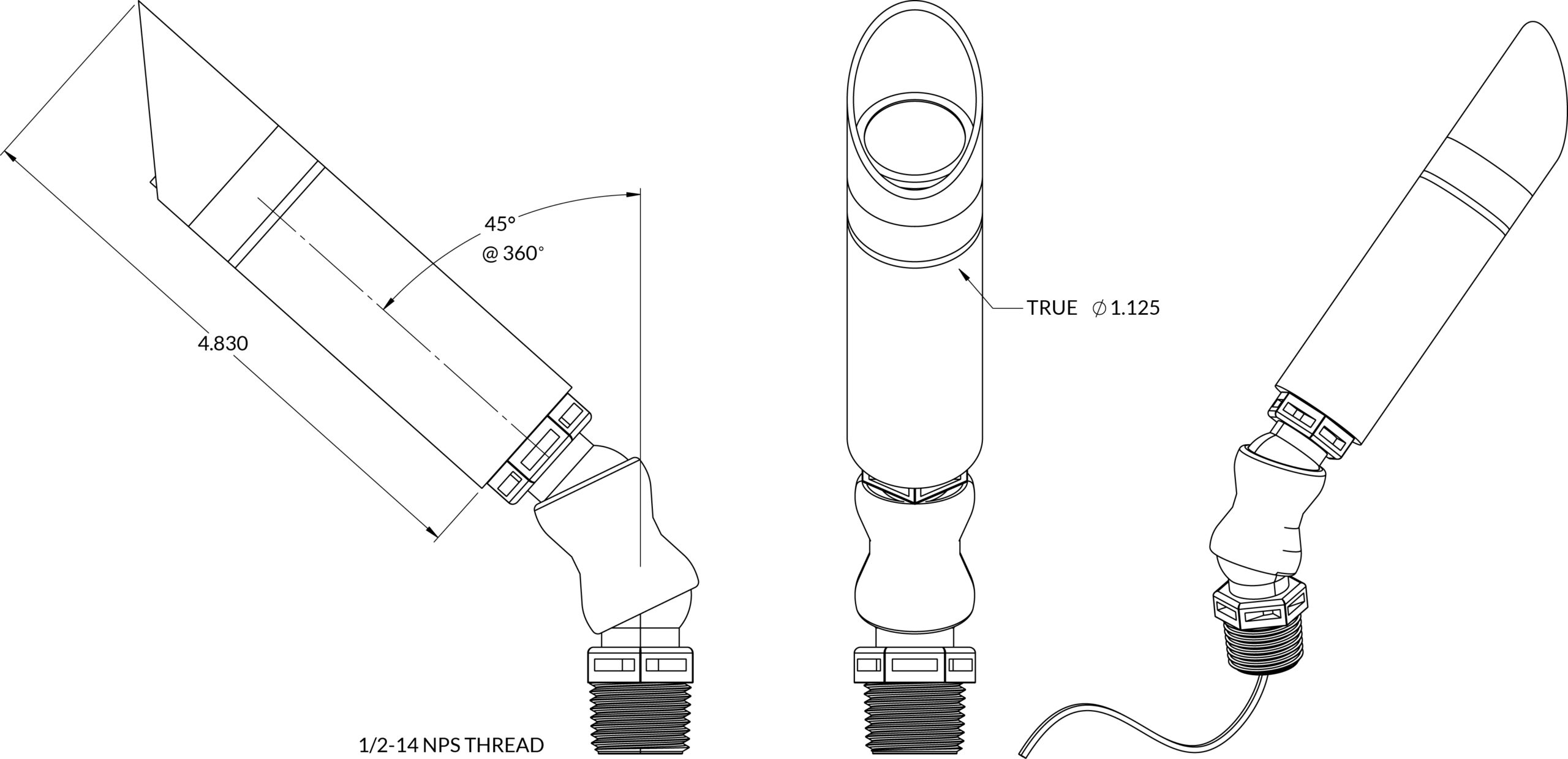

MS Mini Spotlight with Knuckle dimension drawing
Dimensions & Mounting

1.125" mini spot with a compact adjustable knuckle.

The knuckle gives installers vertical and horizontal aiming control in tight mounting locations. Mounts with 1/2"-14 NPS fittings and works with Garden Light LED ground, surface, tree, and extension mounting accessories.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated, field serviceable
Beam Control
Interchangeable optics
Mounting Options
Adjustable knuckle; ground, surface, tree, and extension mounts available

Output
140-170 lm
Power
2W
Optics
12° / 25° / 40° / 60°
Certifications & Ratings
ETL | IP66
Downloads

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

Precise aiming for compact architectural and landscape details.

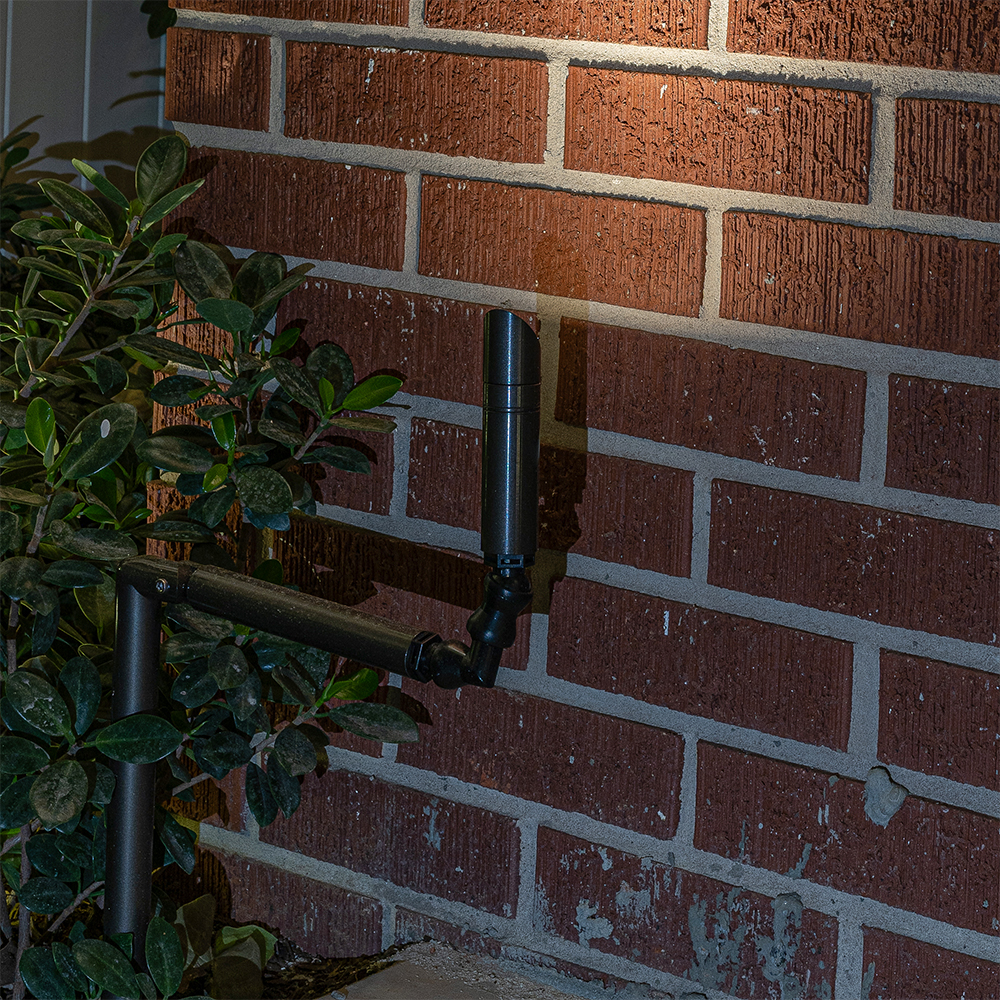

MS Mini Spotlight with Knuckle mounted near a brick wall for tight architectural accent lighting
Tight brick-wall accent lighting

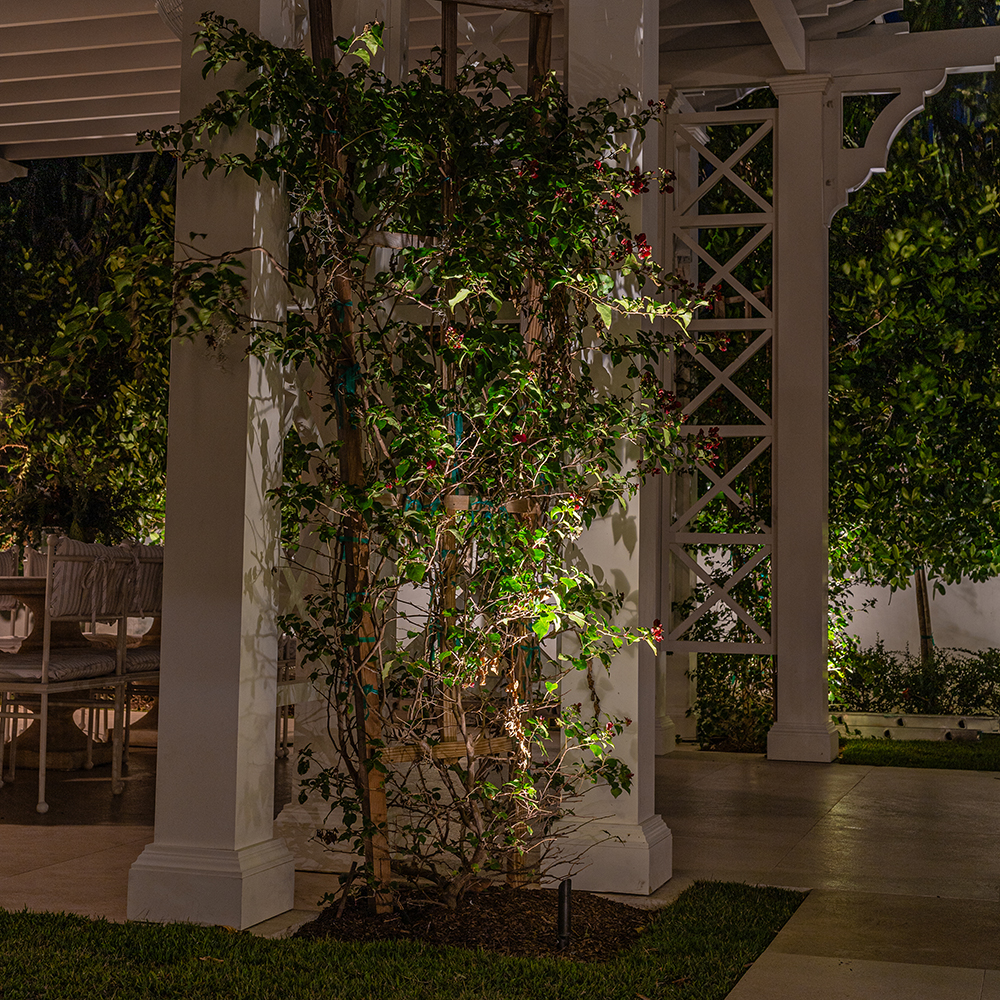

MS Mini Spotlight with Knuckle used for compact planting and column accent lighting
Planting and column accent lighting

Best For

Tight-space uplighting, wall grazing, trellises, pavilions, planters, small trees, columns, architectural features, and mounting locations where the beam needs fine adjustment.

Build

6061-T6 aluminum or C360 brass with 316 stainless hardware, adjustable knuckle, built-in surge protection, serviceable LED module, and optional factory-installed hex louver for glare control.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days.
