Mini Spotlight with Leg in Architectural Bronze
Mini Spotlight with Leg in Black
Mini Spotlight with Leg in Stainless Aluminum
Mini Spotlight with Leg in Brass
MSL | Mini Spotlight with Leg - Image 5
MSL | Mini Spotlight with Leg - Image 6
MSL | Mini Spotlight with Leg - Image 7

MSL | Mini Spotlight with Leg

Quantity
Optional Add-Ons
S1 Plastic Swivel in Black
Mini LED Light Mounting Swivel

The Mini LED Light Mounting Swivel adds adjustable aiming to compatible Garden Light LED Mini Series fixtures. It provides approximately 95° of vertical tilt and 45° of horizontal rotation, making it easy to fine-tune beam direction after installation.

Mini LED Light Mounting Swivel - Black
Black (BLK)
Mini LED Light Mounting Swivel - White
White (WHT)

Features:

  • Compatible with Garden Light LED Mini Series fixtures.
  • Approximately 95° vertical tilt and 45° horizontal rotation.
  • Allows precise fixture aiming after installation.
  • Available in Black (BLK) and White (WHT) finishes.
  • Ideal for surface mounting on walls, eaves, pergolas, and architectural features.
per fixture
Mini Universal Mounting Base
Mini Universal Mounting Base
Available in Architectural Bronze (AB) and Black (BLK) 2.375" Diameter x 1" H Die-cast aluminum mounting base for use in place of a stake, for hard surface mounting applications.
per fixture
SKU MSL Categories , Tags , ,

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Log In to Your Account
Become a Dealer

Mini Series / Directional & Accent

MSL Mini Spotlight with Leg

Compact 1.125" integrated LED spotlight for small-scale uplighting, water features, planters, tight landscape details, and architectural accent work.

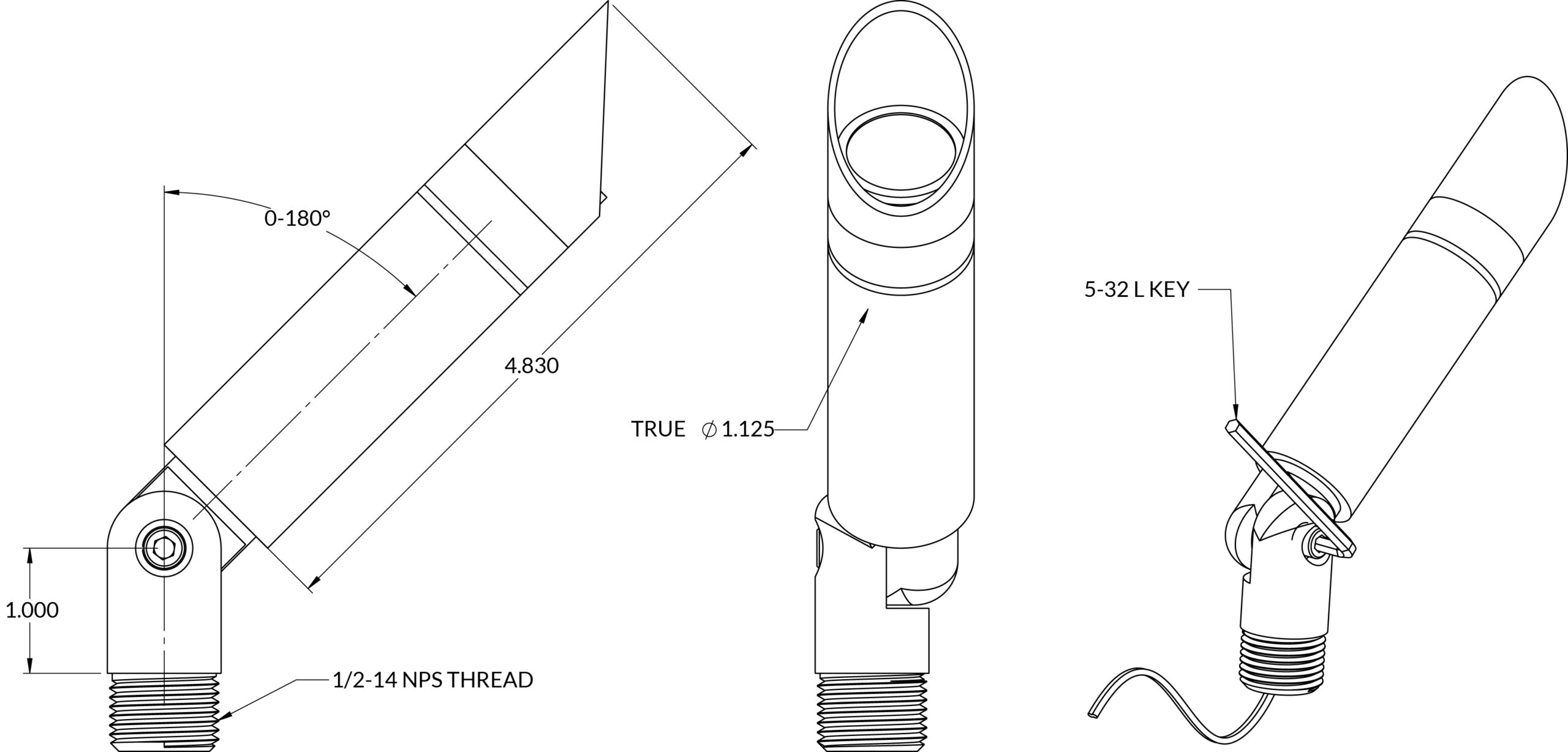

MSL Mini Spotlight with Leg dimension drawing
Dimensions & Mounting

1.125" diameter mini spot with 0-180° aiming.

Includes LV130 stake and mounts with 1/2"-14 NPS fittings. Compatible with Garden Light LED ground, surface, tree, and extension mounting accessories.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated, field serviceable
Beam Control
Interchangeable optics
Mounting Options
LV130 stake included; surface, tree, and extension mounts available

Output
140-170 lm
Power
2W
Optics
12° / 25° / 40° / 60°
Certifications & Ratings
ETL | IP66
Downloads


Spec SheetPDF


Install GuidePDF


IES FilesZIP


IES FilesPDF ZIP

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

Small fixture scale with precise accent-lighting control.

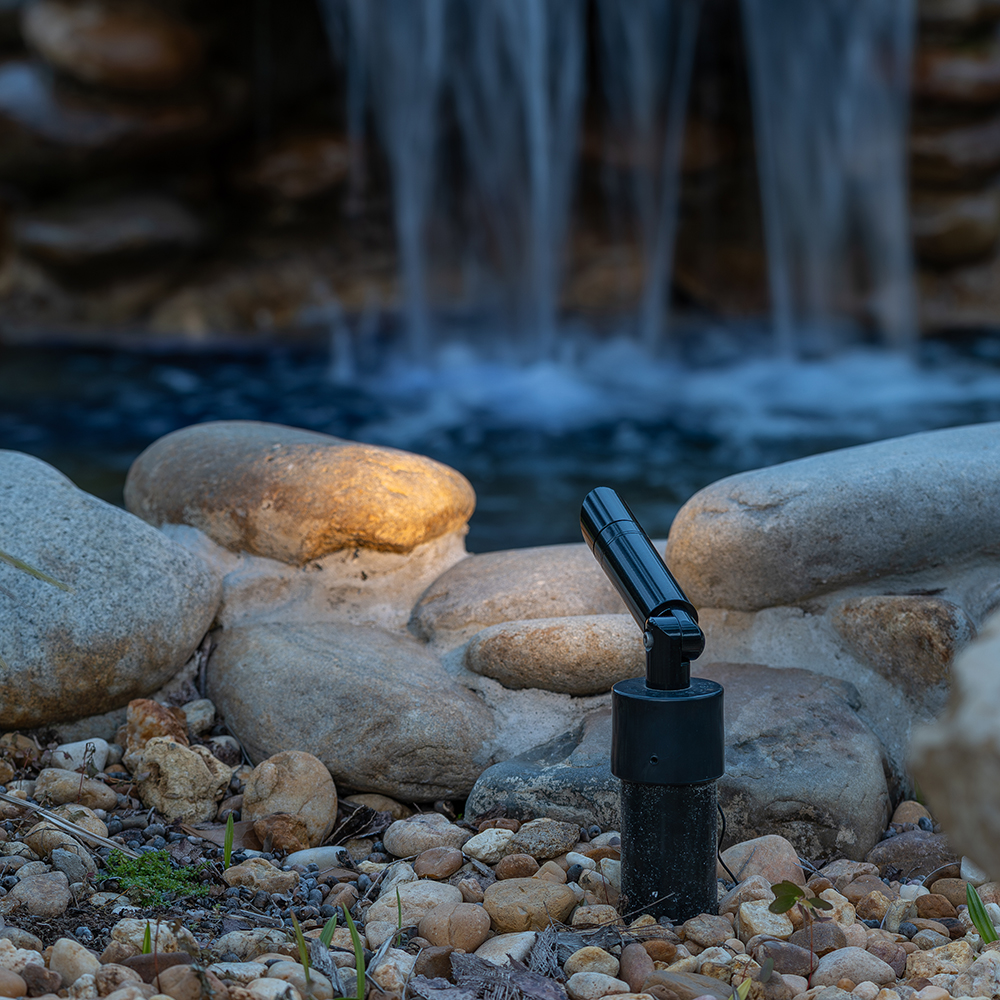

MSL Mini Spotlight with Leg installed near a rock waterfall edge
Waterfall edge accent lighting

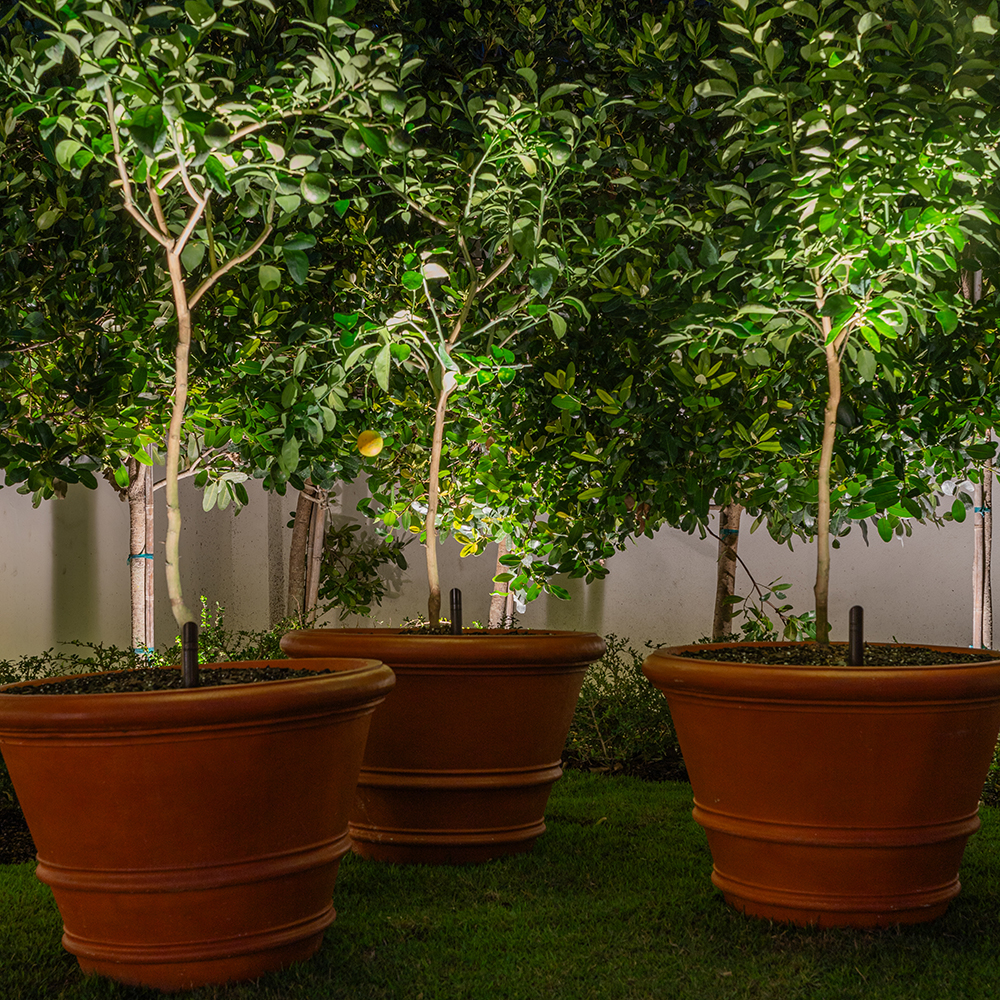

MSL Mini Spotlight with Leg used for planter and small tree uplighting
Planter and small-tree uplighting

Best For

Water features, planters, small trees, specimen plantings, low garden accents, tight architectural details, and compact uplighting applications.

Build

6061-T6 aluminum or C360 brass with 316 stainless hardware, built-in surge protection, serviceable LED module, and optional factory-installed hex louver for glare control.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days.

Complete the System
