DL15-II | Mini Deck Light

Quantity
SKU DL15-II Categories , Tags , ,

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Deck Lights / Mini

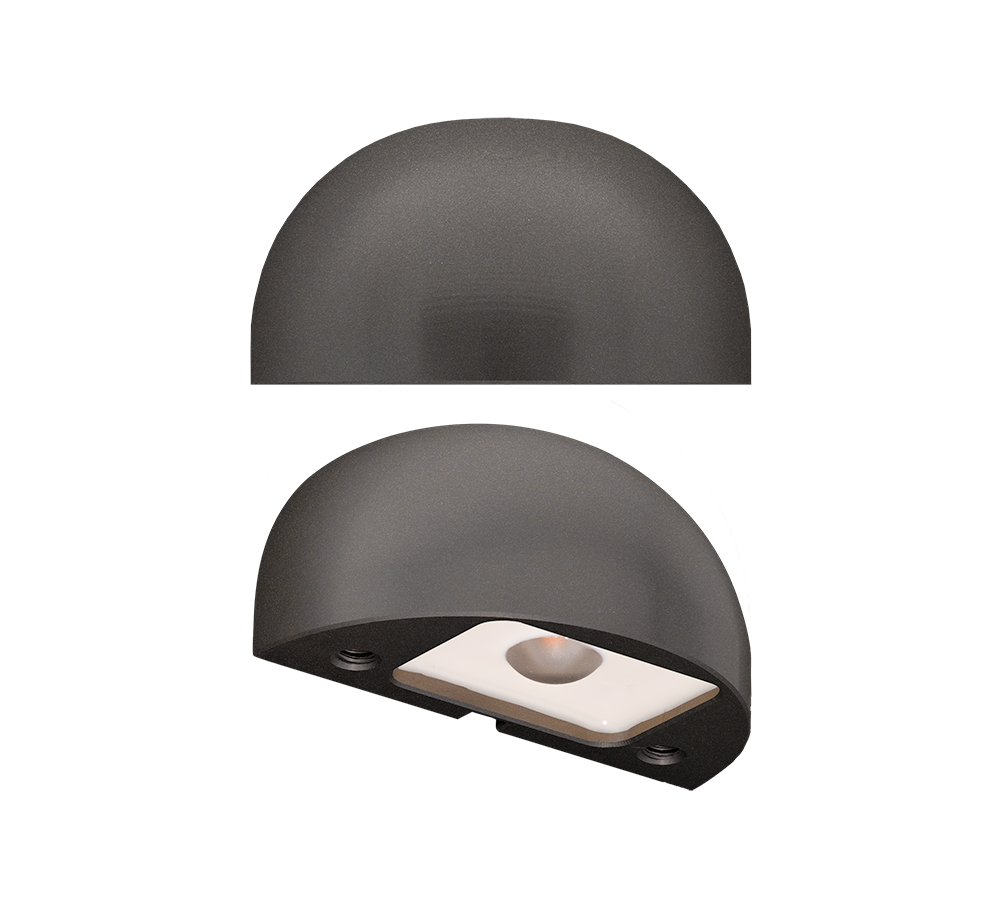

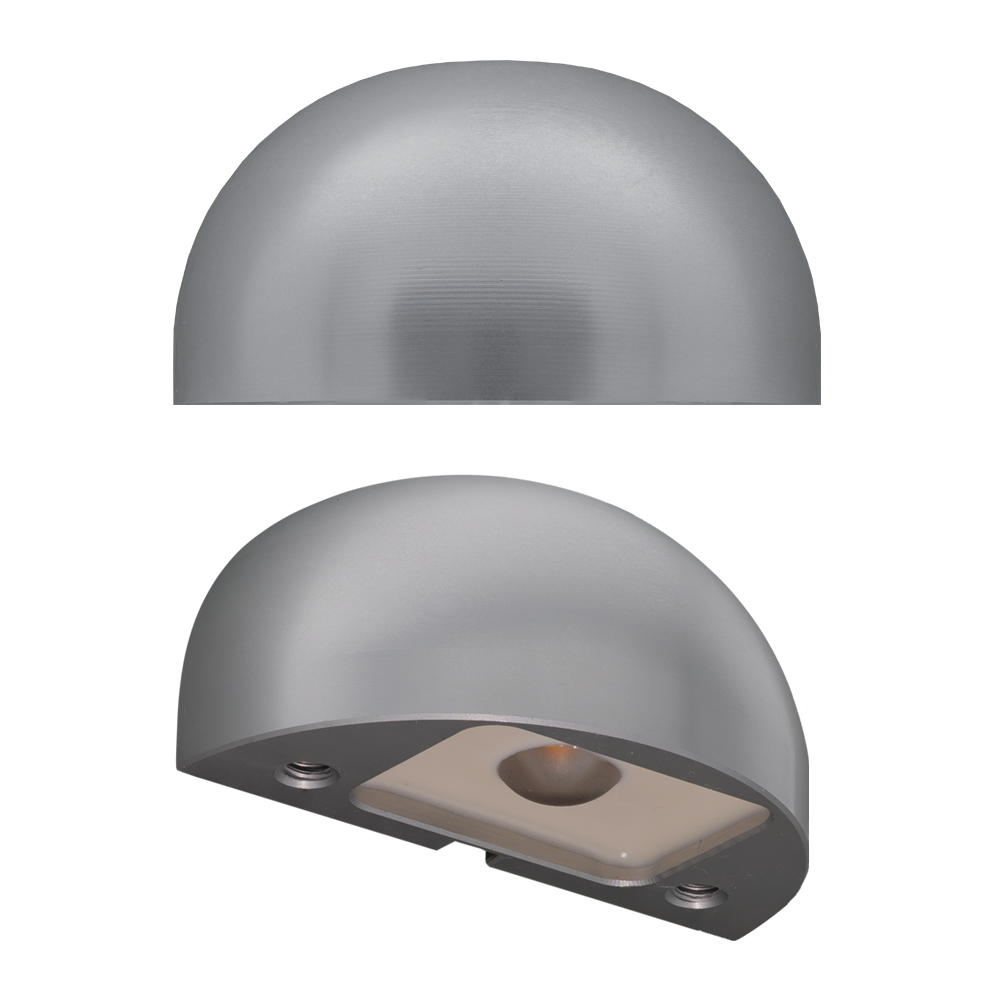

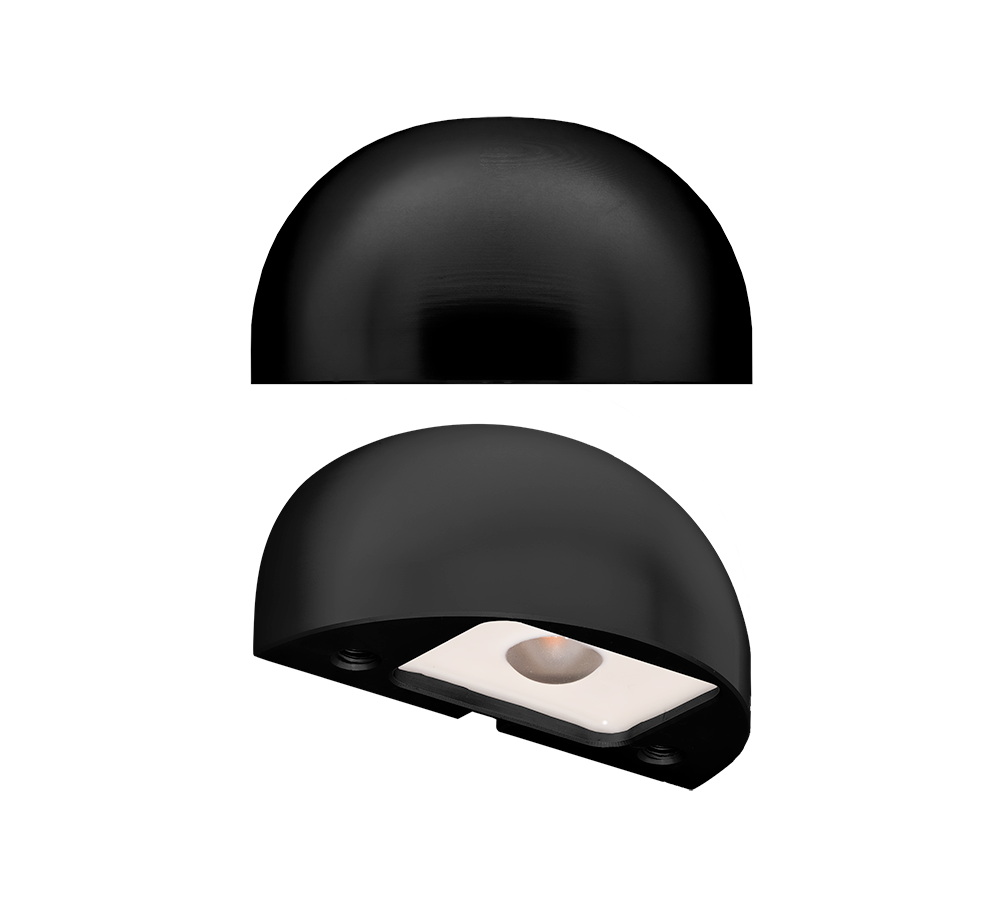

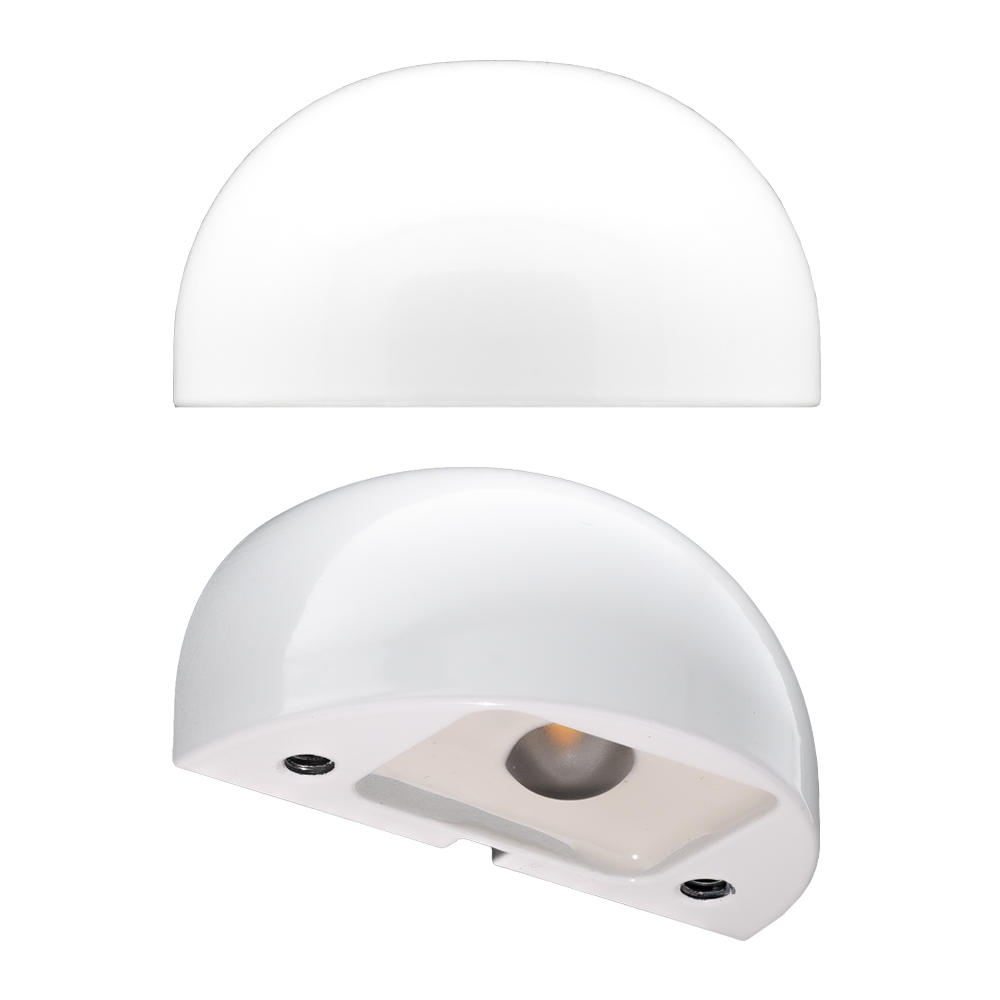

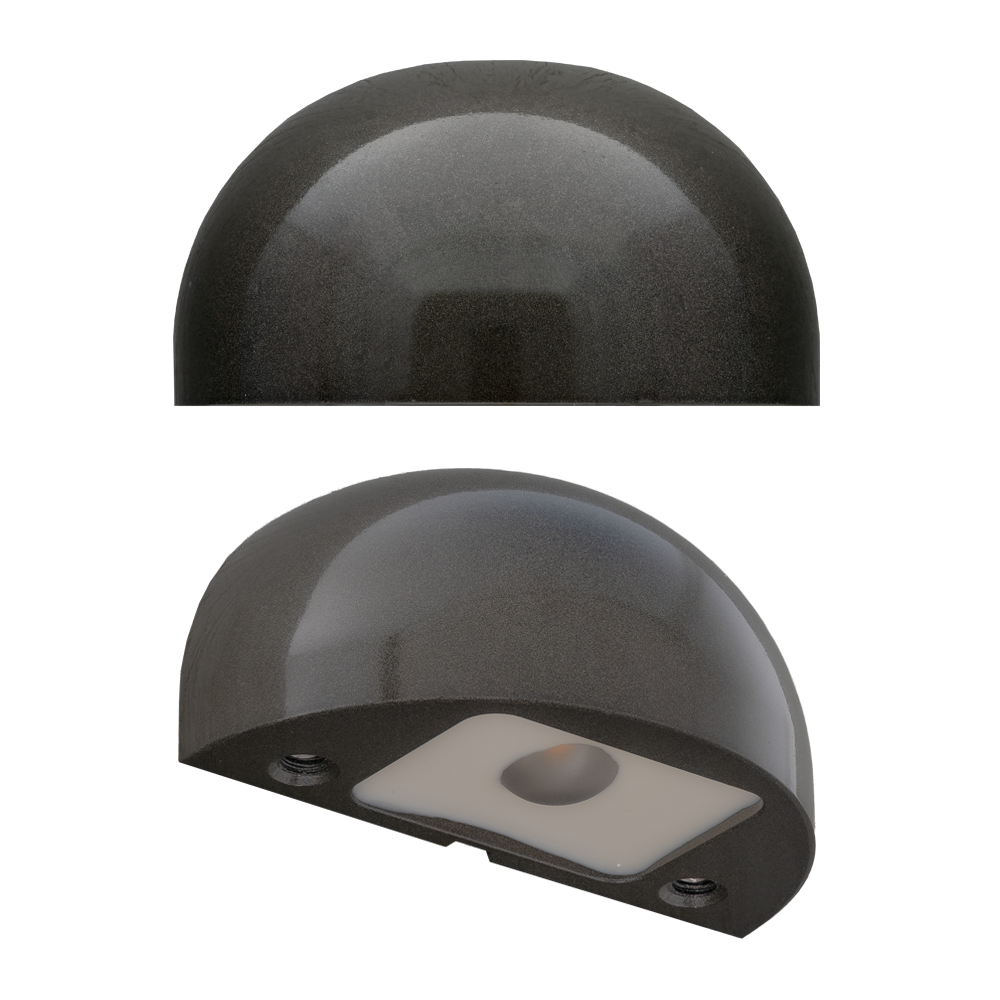

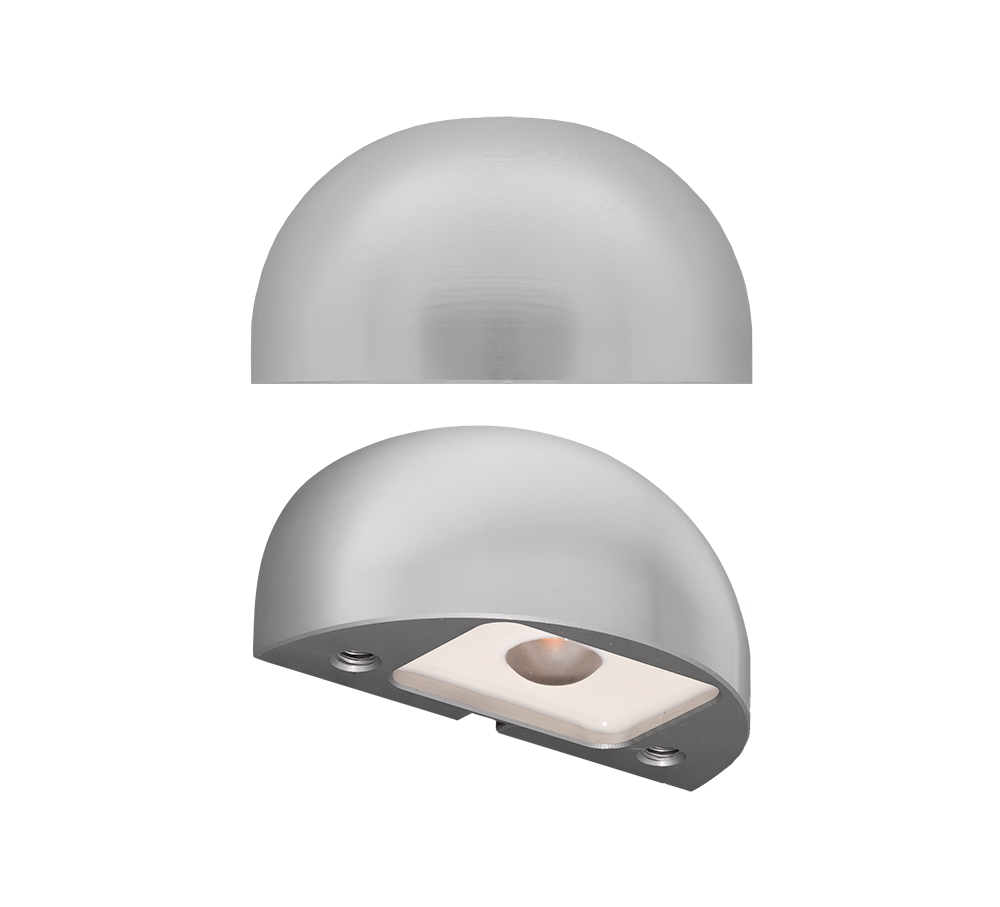

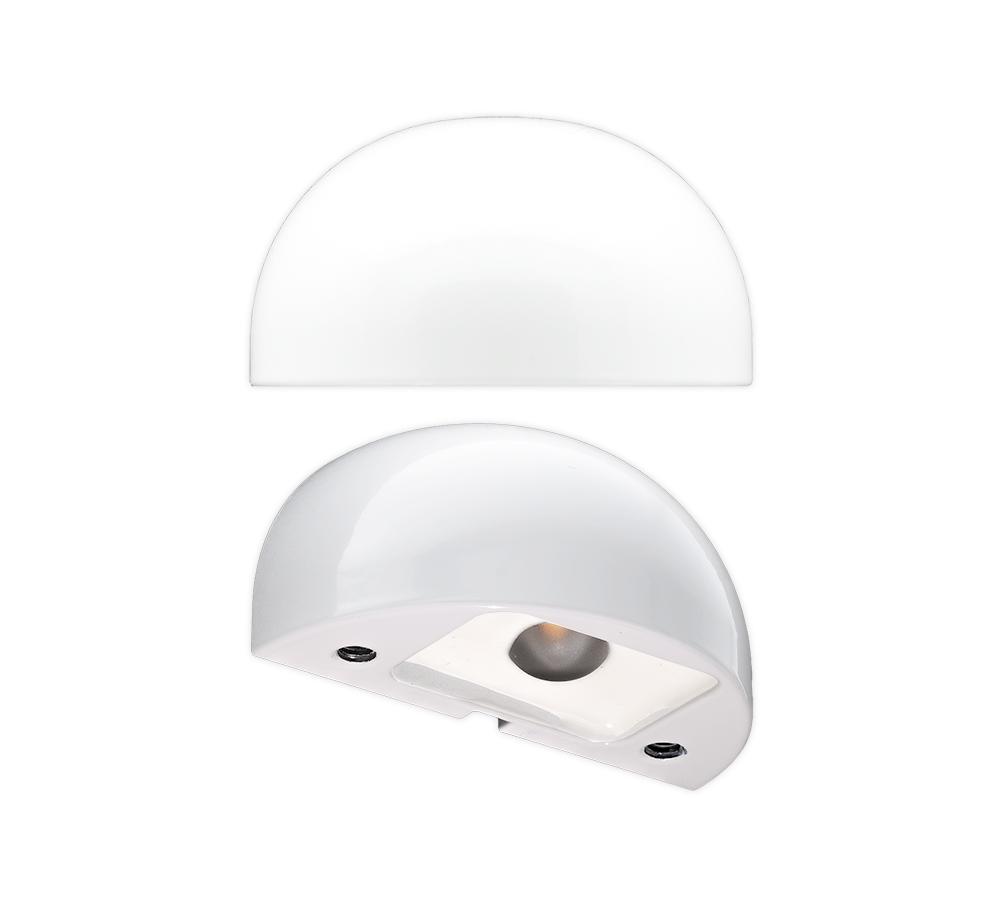

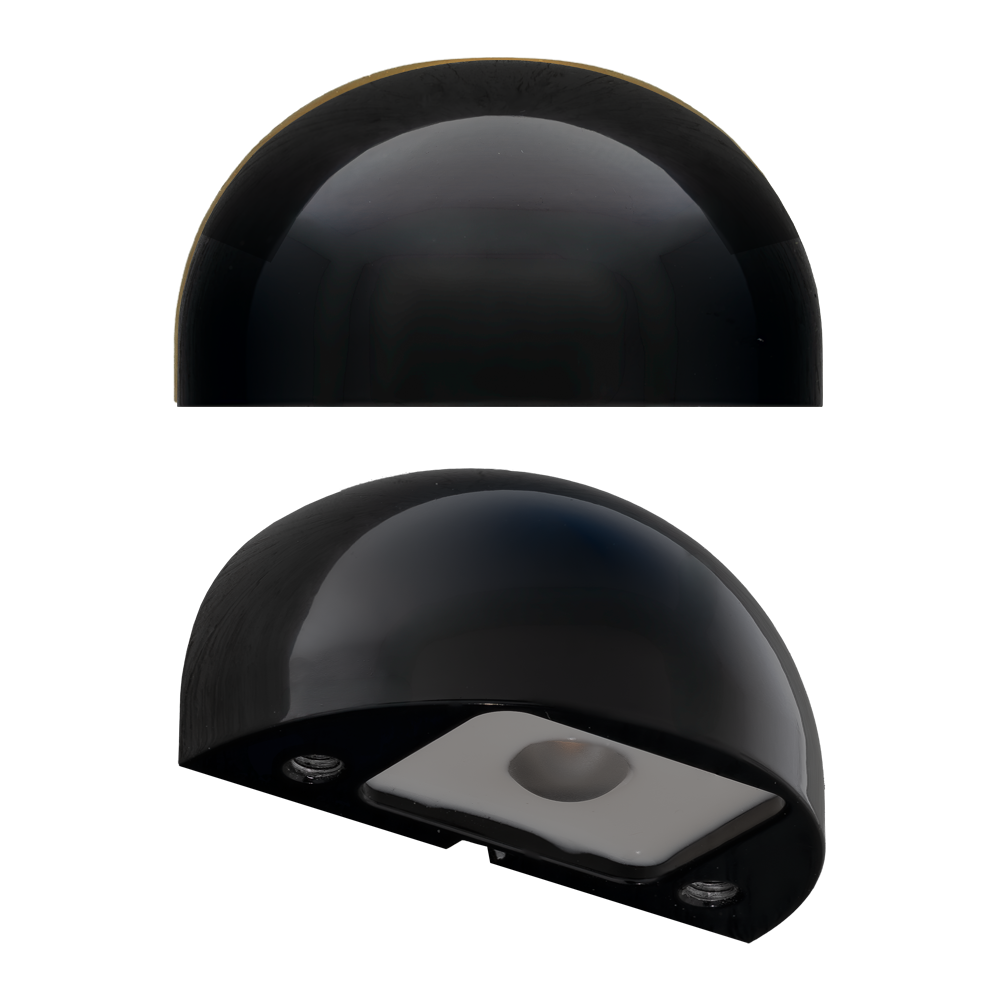

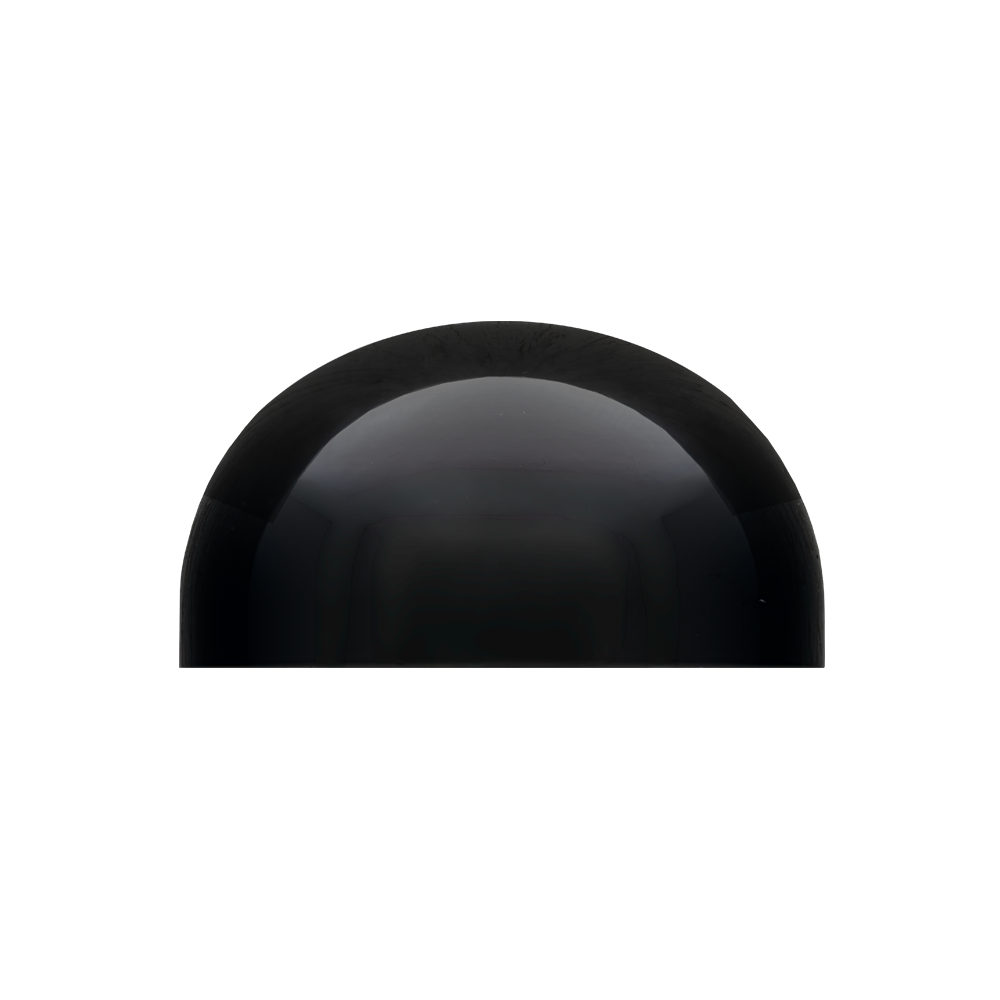

DL15-II Mini Deck Light

Compact 1W integrated LED deck light for railings, posts, stairs, fences, docks, retaining walls, and discreet safety lighting.

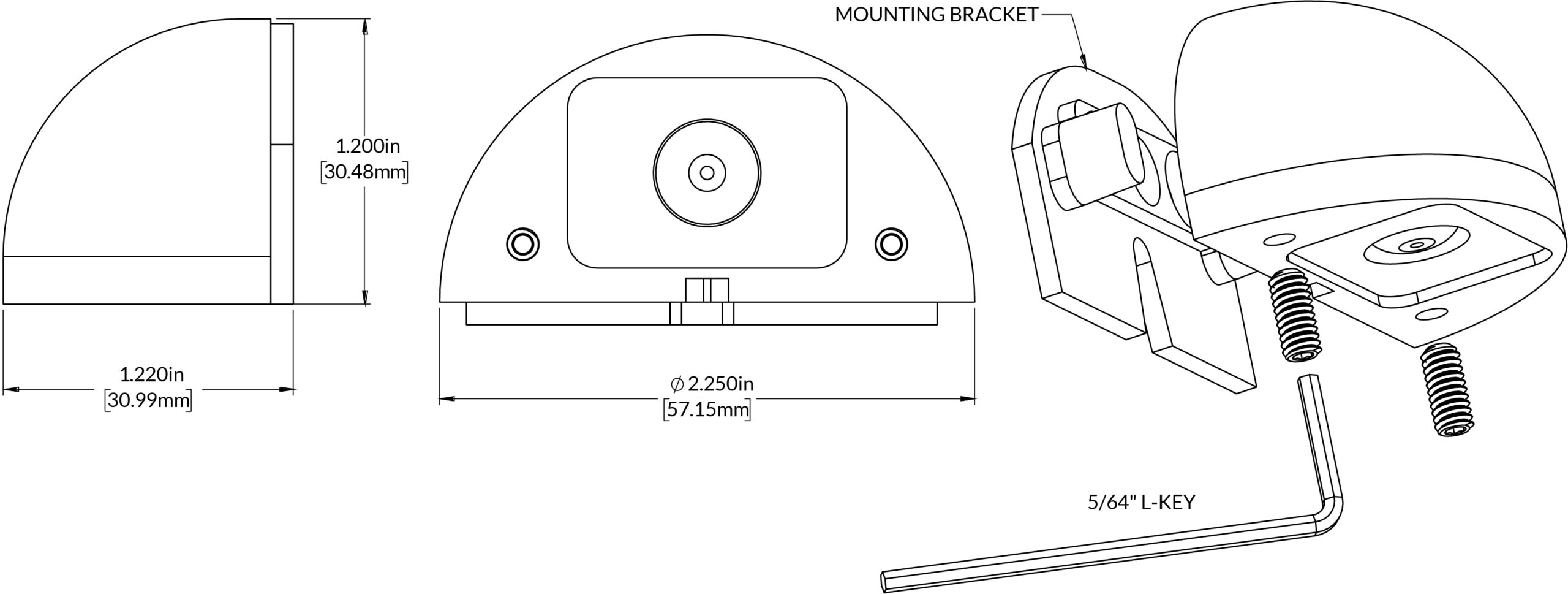

DL15-II Mini Deck Light dimension drawing
Dimensions & Mounting

Low-profile deck light with concealed bracket mounting.

Measures 1.220" x 2.250" x 1.200" and includes an ABS mounting bracket with #6 x 3/4" stainless fasteners. Optional 0.5" and 1.0" shrouds are available for additional glare control.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated, U.S.-made LED and driver
Beam Spread
120° wide-angle beam
Mounting Options
ABS bracket included; small and large shrouds available

Output
85 lm
Power
1W
Optics
120° Wide
Certifications & Ratings
ETL | IP67
Downloads

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

Discreet safety lighting for decks, stairs, docks, and outdoor walls.

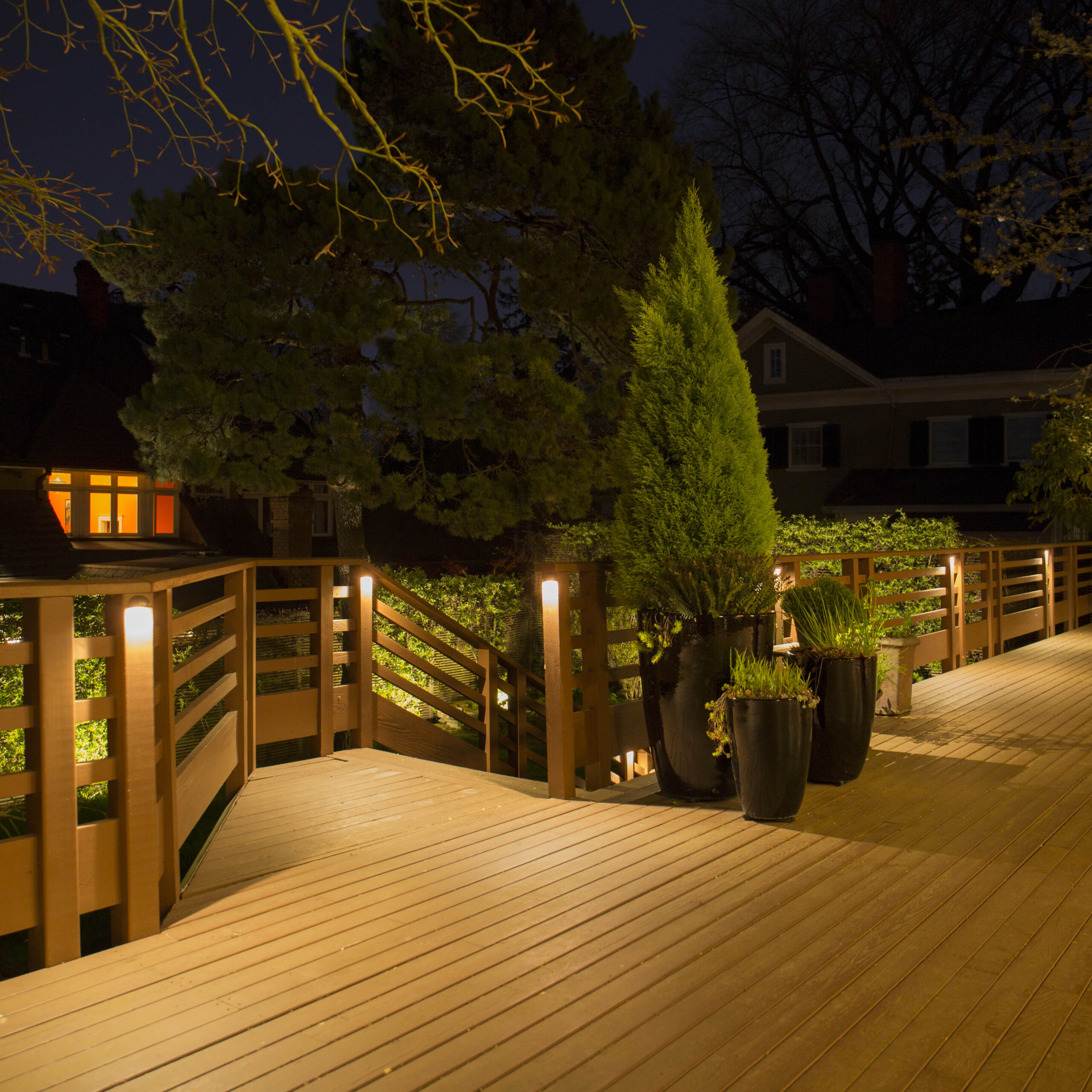

DL15-II Mini Deck Lights illuminating a deck railing and stair area
Deck railing and stair safety lighting

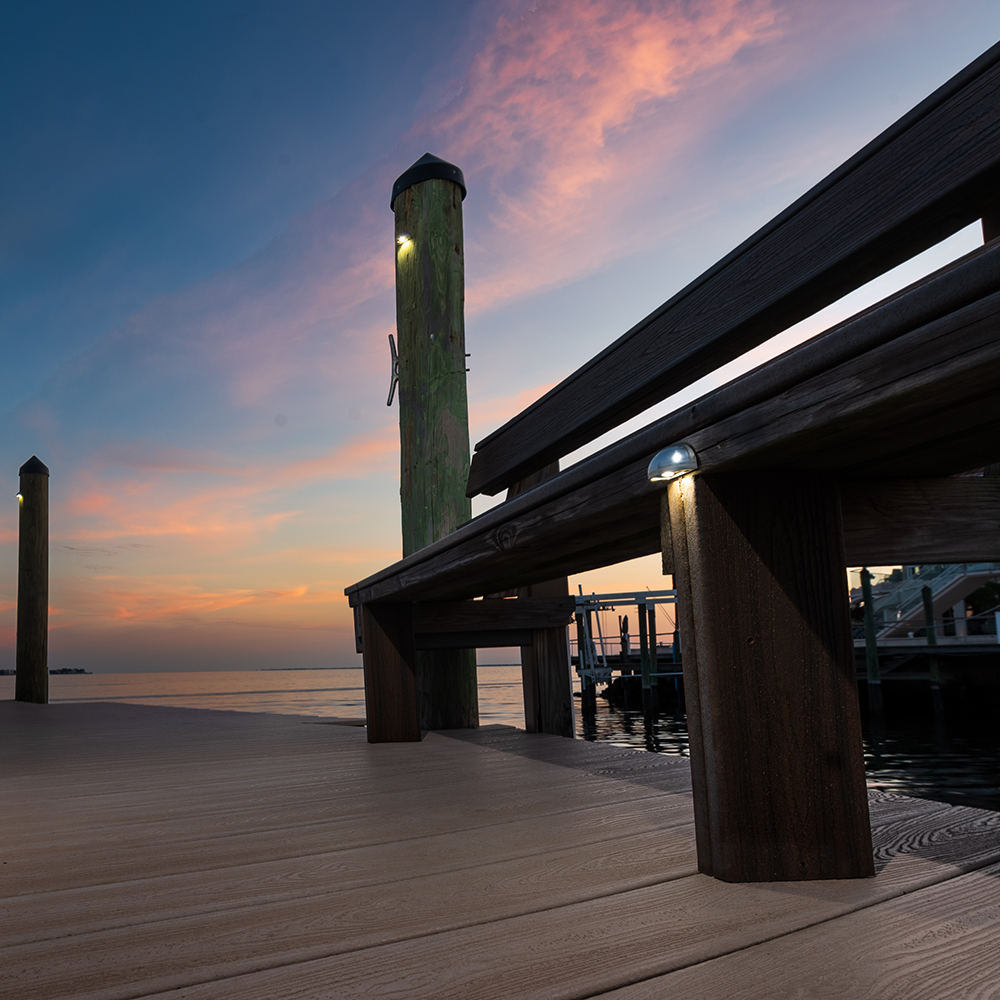

DL15-II Mini Deck Lights mounted on dock posts near the water
Waterfront dock post lighting

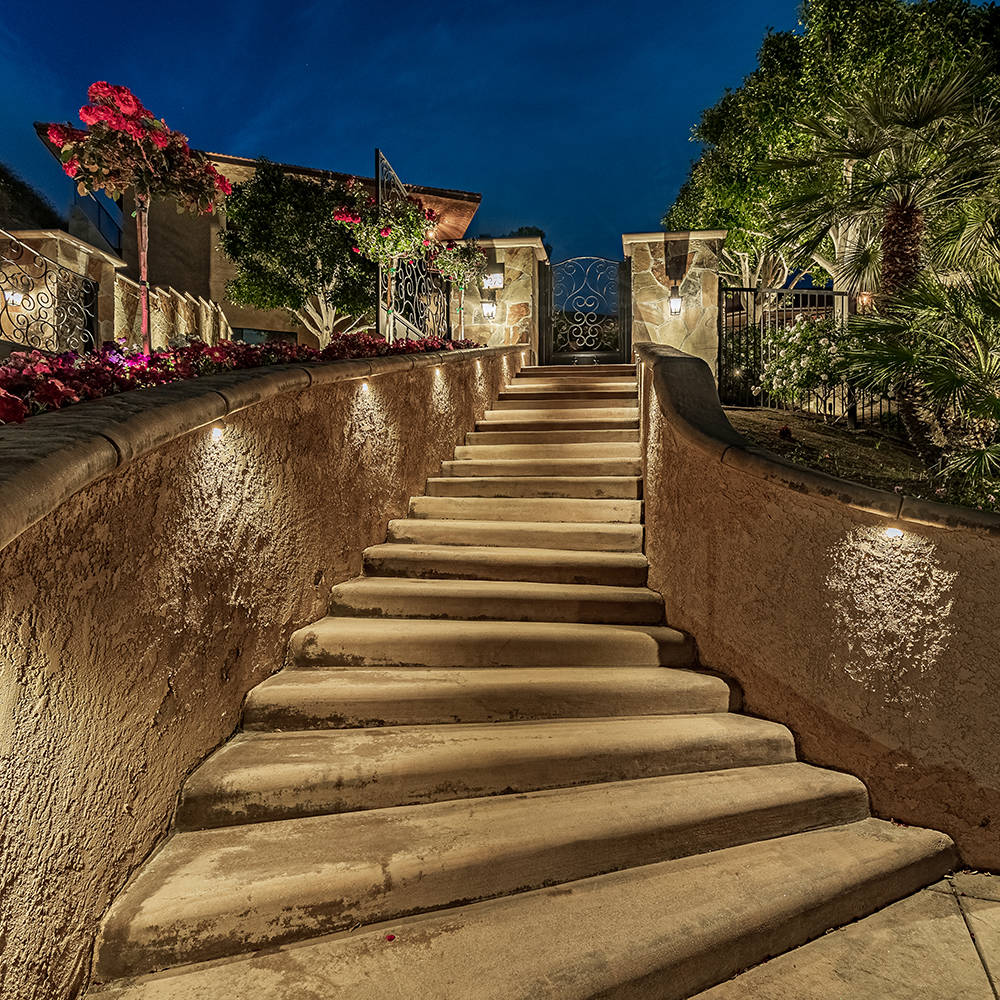

DL15-II Mini Deck Lights illuminating a stairway and retaining walls
Stair and retaining-wall lighting

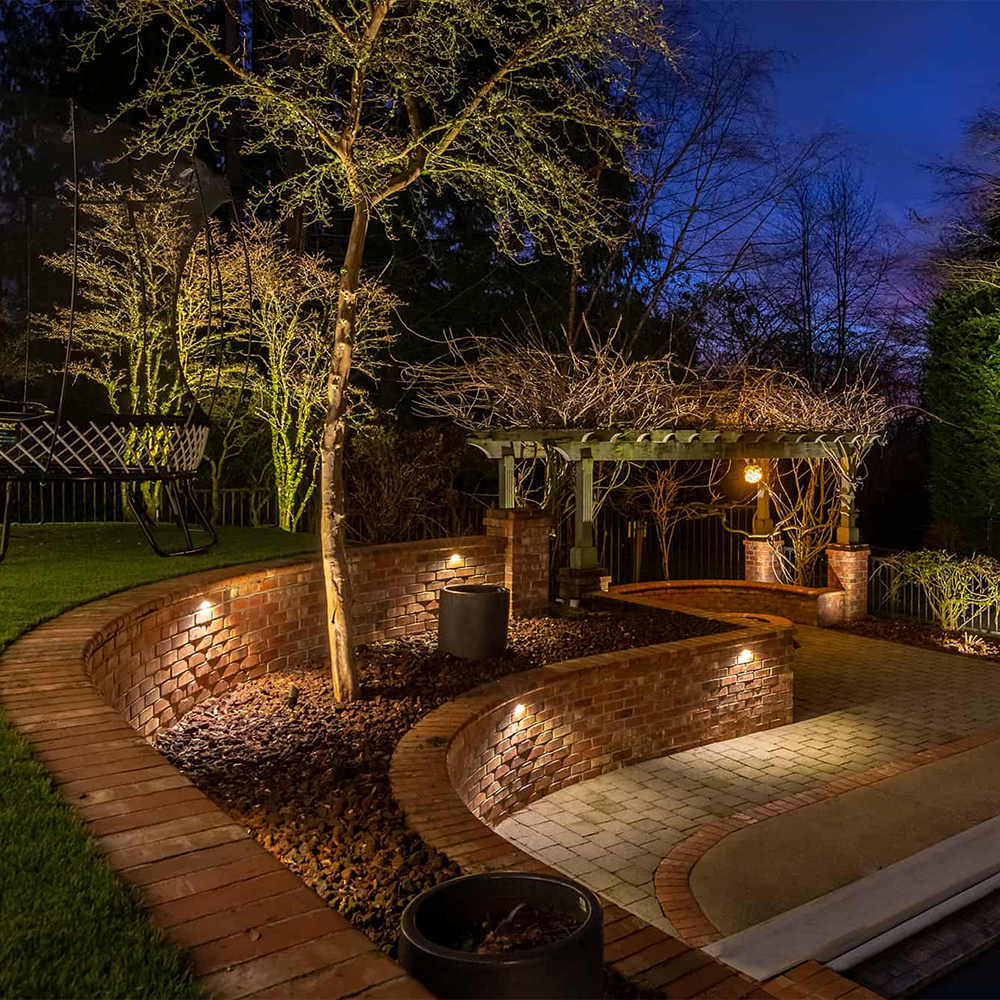

DL15-II Mini Deck Lights installed along curved brick garden walls
Garden wall and pathway accents

Best For

Decks, railings, posts, stairs, fences, docks, retaining walls, wall mounts, path edges, and discreet safety lighting where the fixture should stay visually quiet.

Build

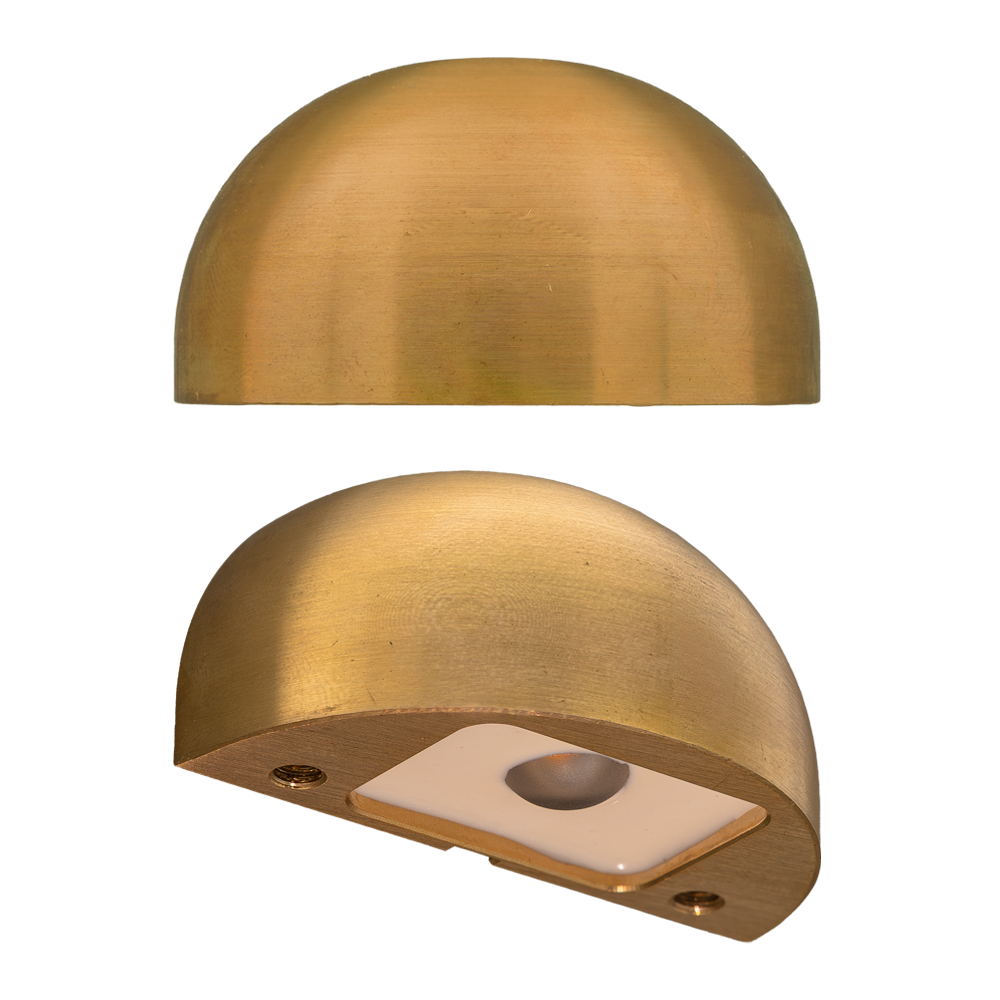

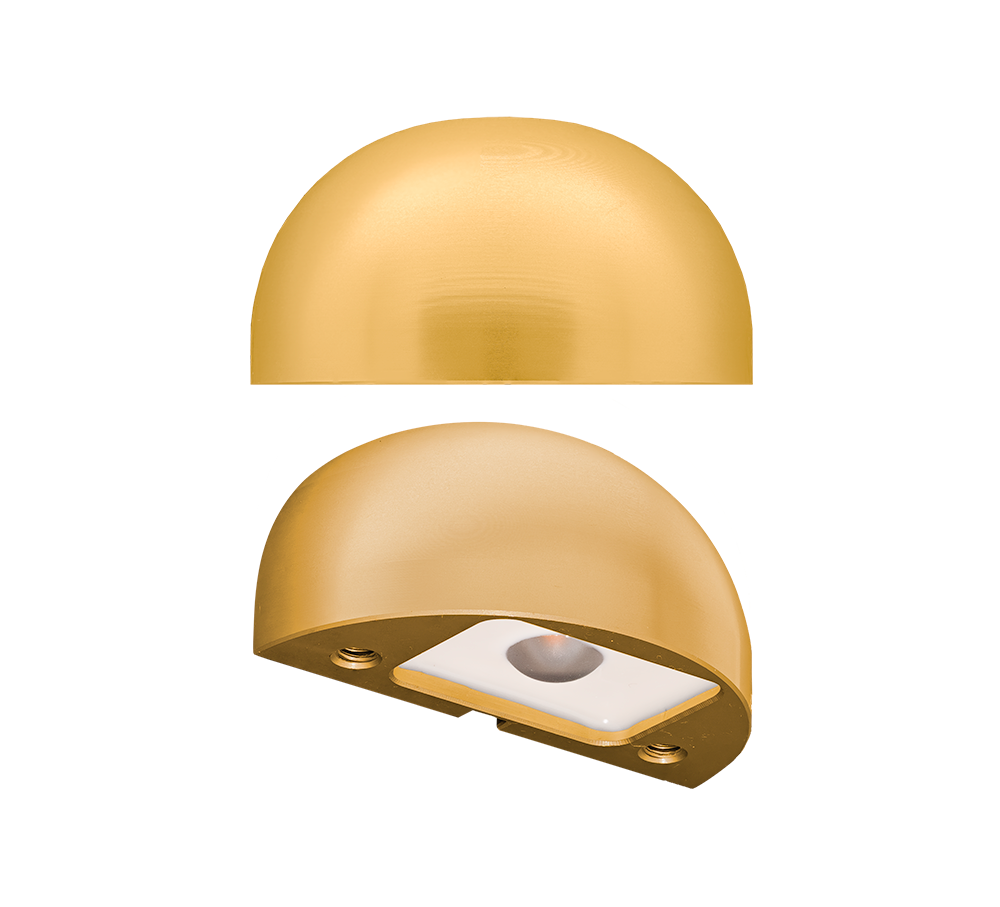

6061-T6 aluminum or C360 brass with 316 stainless hardware, fully potted IP67 housing, built-in surge protection, and U.S.-made light engine and driver.

Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time.
