S1 Saturn Halo Submersible Specialty Light in White
S1 Saturn Halo Submersible Specialty Light in Black
S1 Saturn Halo Submersible Specialty Light in Brass
S1 Saturn Halo Submersible Specialty Light in Stainless Steel
S1H | Saturn Halo (Submersible) - Image 5
S1H | Saturn Halo (Submersible) - Image 6
S1H | Saturn Halo (Submersible) - Image 7
S1H | Saturn Halo (Submersible) - Image 8

S1H | Saturn Halo (Submersible)

Quantity
SKU S1H Categories ,

View Pricing & Order Online

Pricing and online ordering are available to authorized dealers. Log in or request access to get started.

Log In to Your Account
Become a Dealer

Saturn Series / Halo Specialty Light

S1H Saturn Halo

Low-profile 1.75″ integrated LED halo light for water features, architectural accents, eaves, facades, columns, and tight surface-mount details.

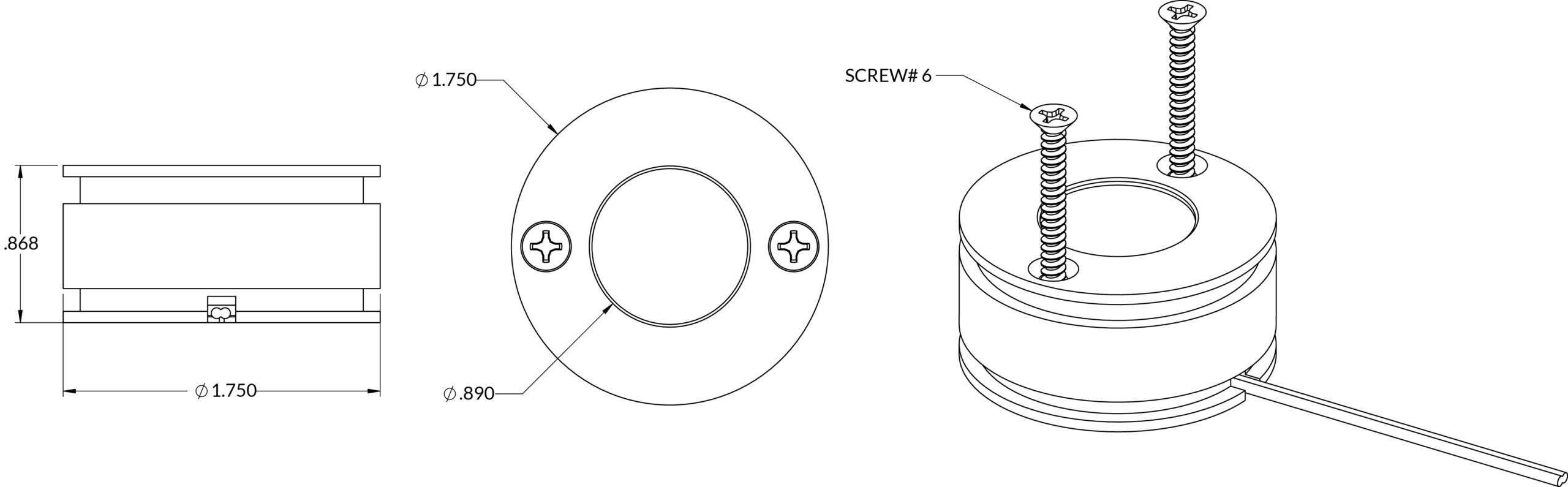

S1H Saturn Halo dimension drawing
Dimensions & Mounting

1.75″ diameter halo fixture under 1″ tall.

Integrated two-point mounting holes use #6 stainless flat-head screws. Optional S1 shroud adds glare control, and the UM swivel adds 95°/45° tilt for adjustable surface mounting.

Built In / Ships From
Tampa, Florida
Light Engine
Integrated, U.S.-made LED and driver
Beam Control
Interchangeable optics
Mounting Options
Two-point mount; shroud and swivel available
Output
161 lm
Power
2W
Optics
12° / 25° / 40° / 60°
Certifications & Ratings
ETL | IP68
Downloads


Spec SheetPDF


Install GuidePDF


IES FilesZIP


IES FilesPDF ZIP

Need a fixture variation outside our standard IES library? Use the request form for alternate wattages, color temperatures, optics, finishes, shrouds, louvers, lenses, or accessories that may affect photometric output. Submit one fixture variation per request. Standard turnaround is 3-5 business days.

Request IES File

Application Examples

A low-profile halo fixture for water, architecture, and outdoor living spaces.

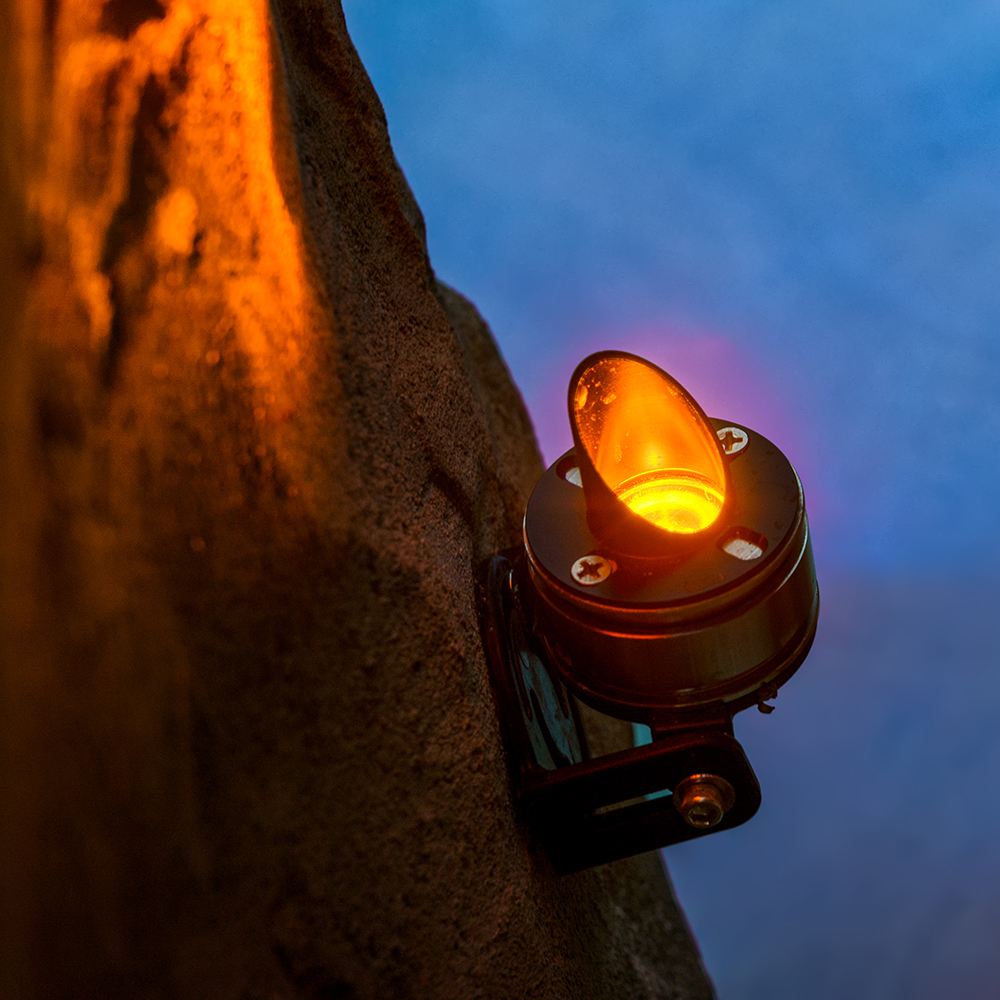

S1H Saturn Halo in amber mounted beside a rock water feature
Water-feature color accent

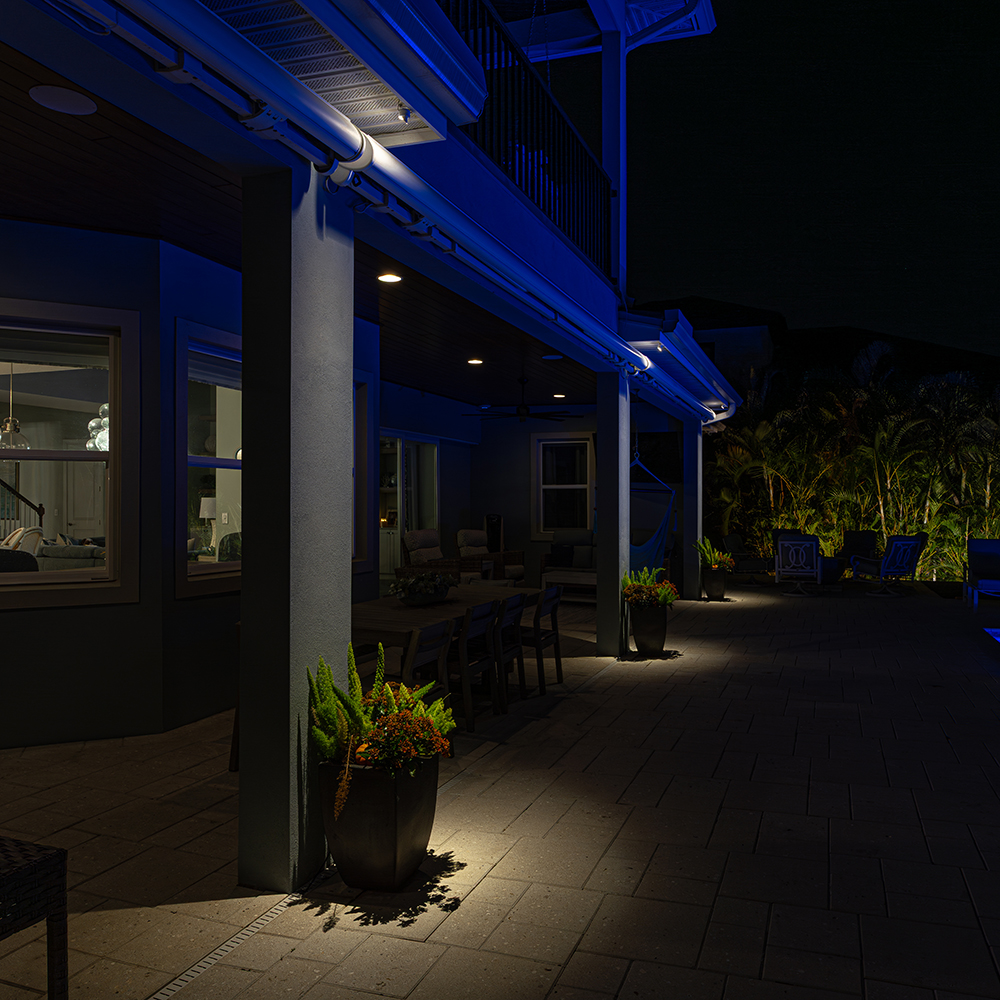

S1H Saturn Halo fixtures used for eave and facade lighting on a home

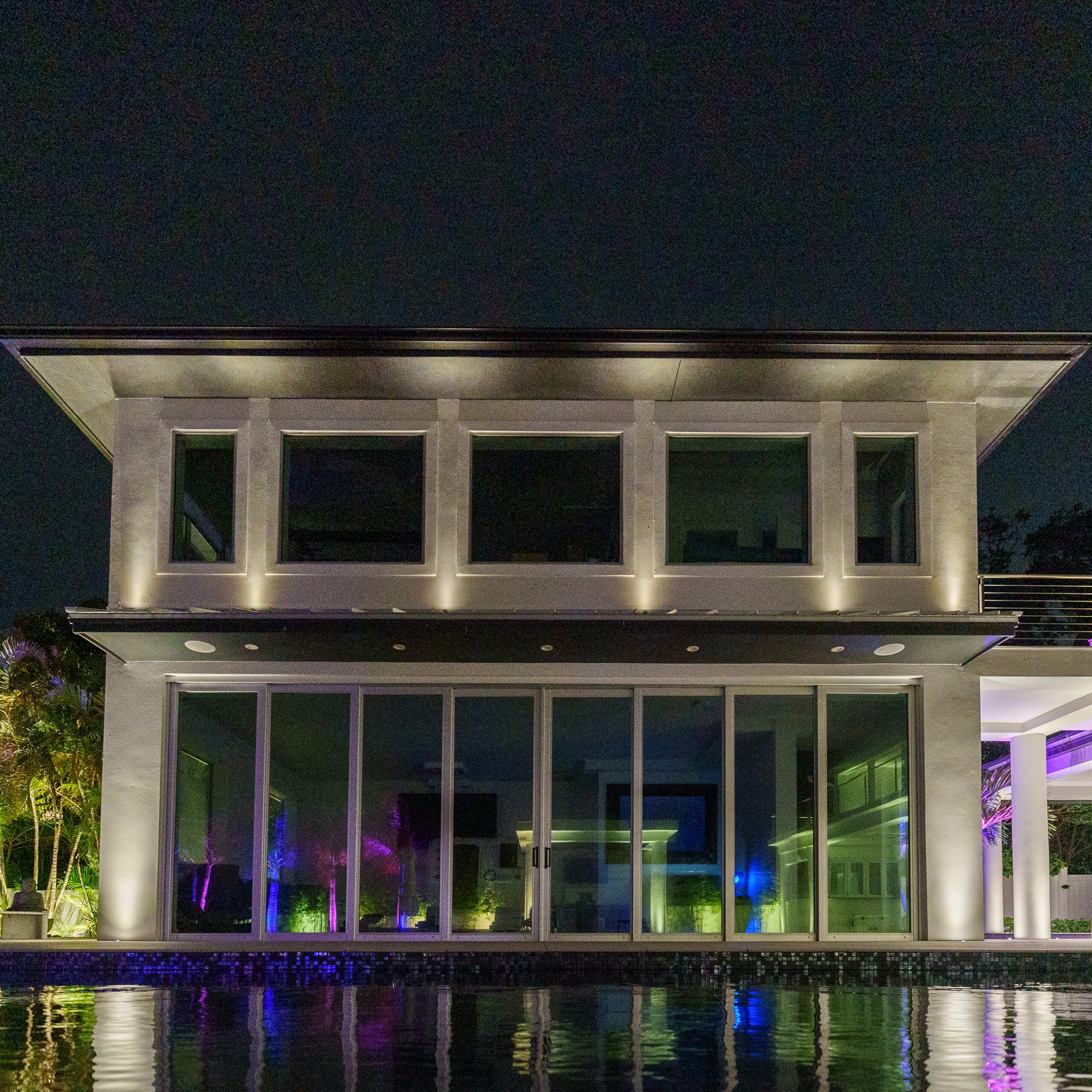

Eave and facade downlighting

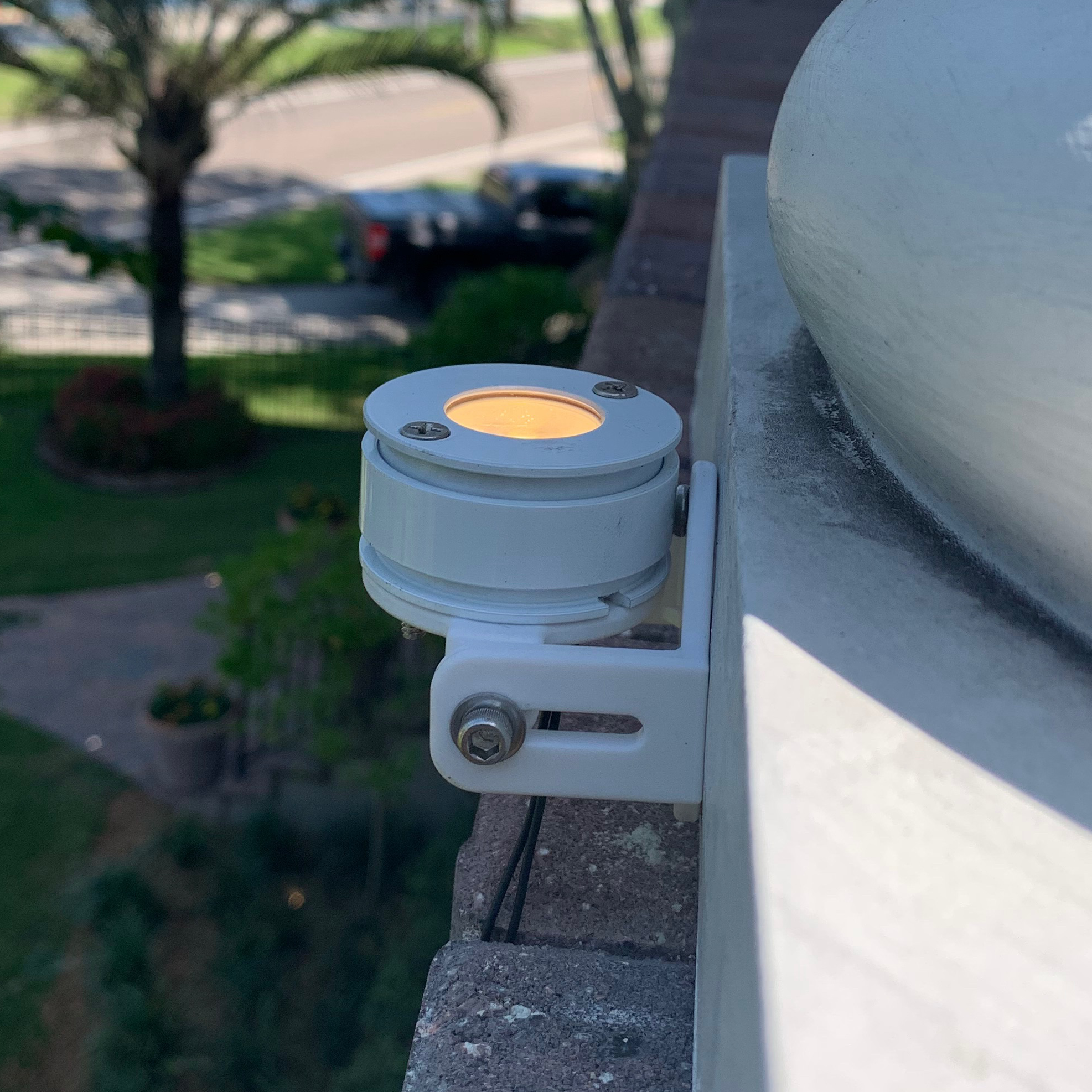

White S1H Saturn Halo mounted to an exterior architectural ledge
Swivel-mounted for second-story accent lighting

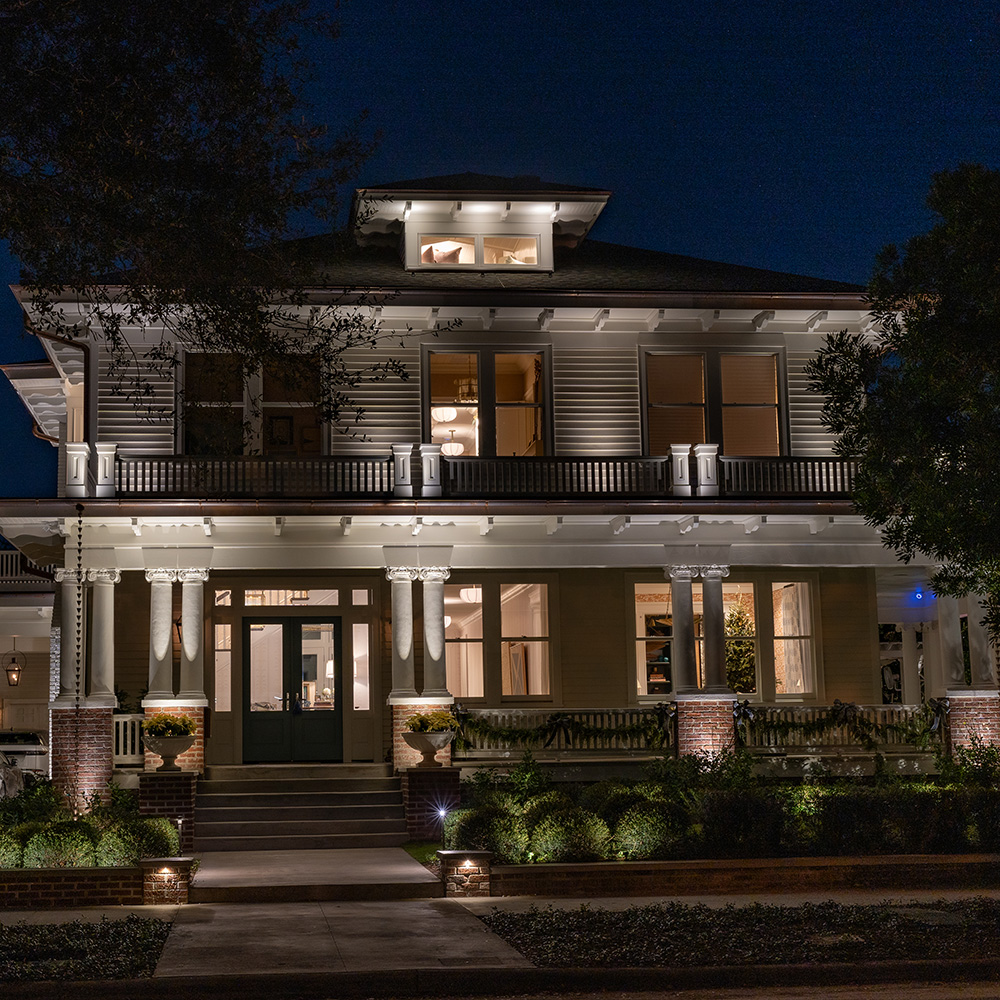

S1H Saturn Halo used for patio downlighting and blue accent lighting

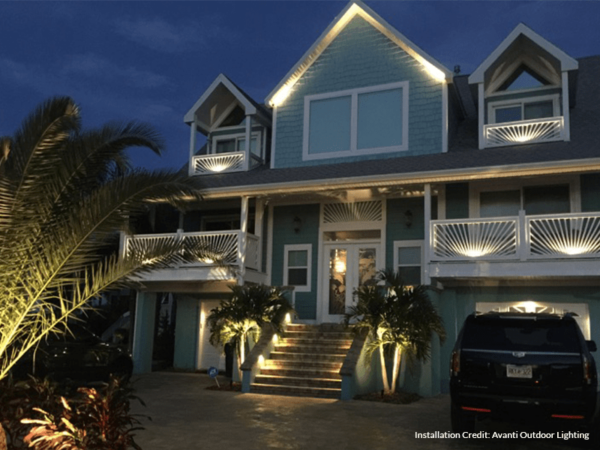

Second-story and dormer accent lighting
Best For

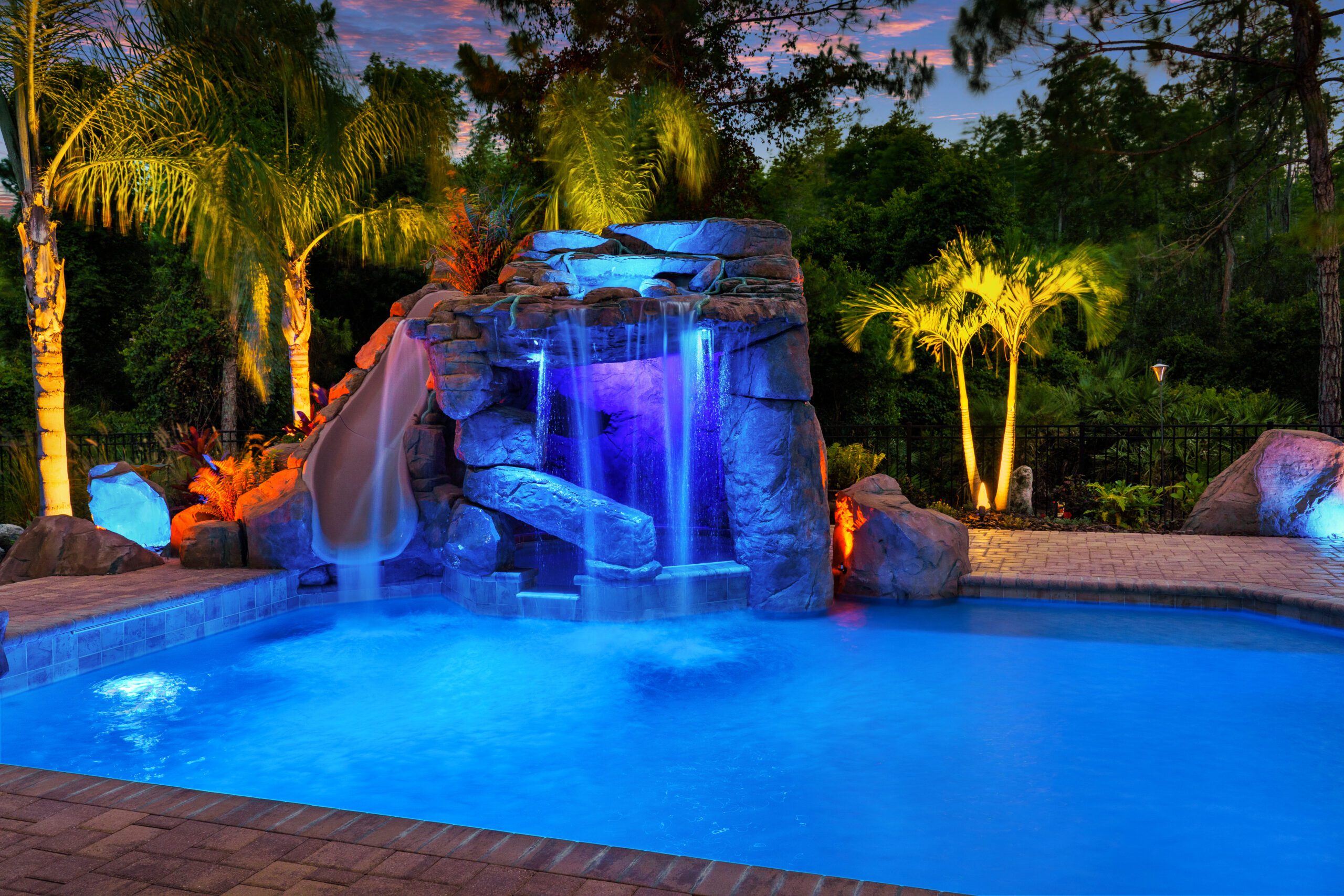

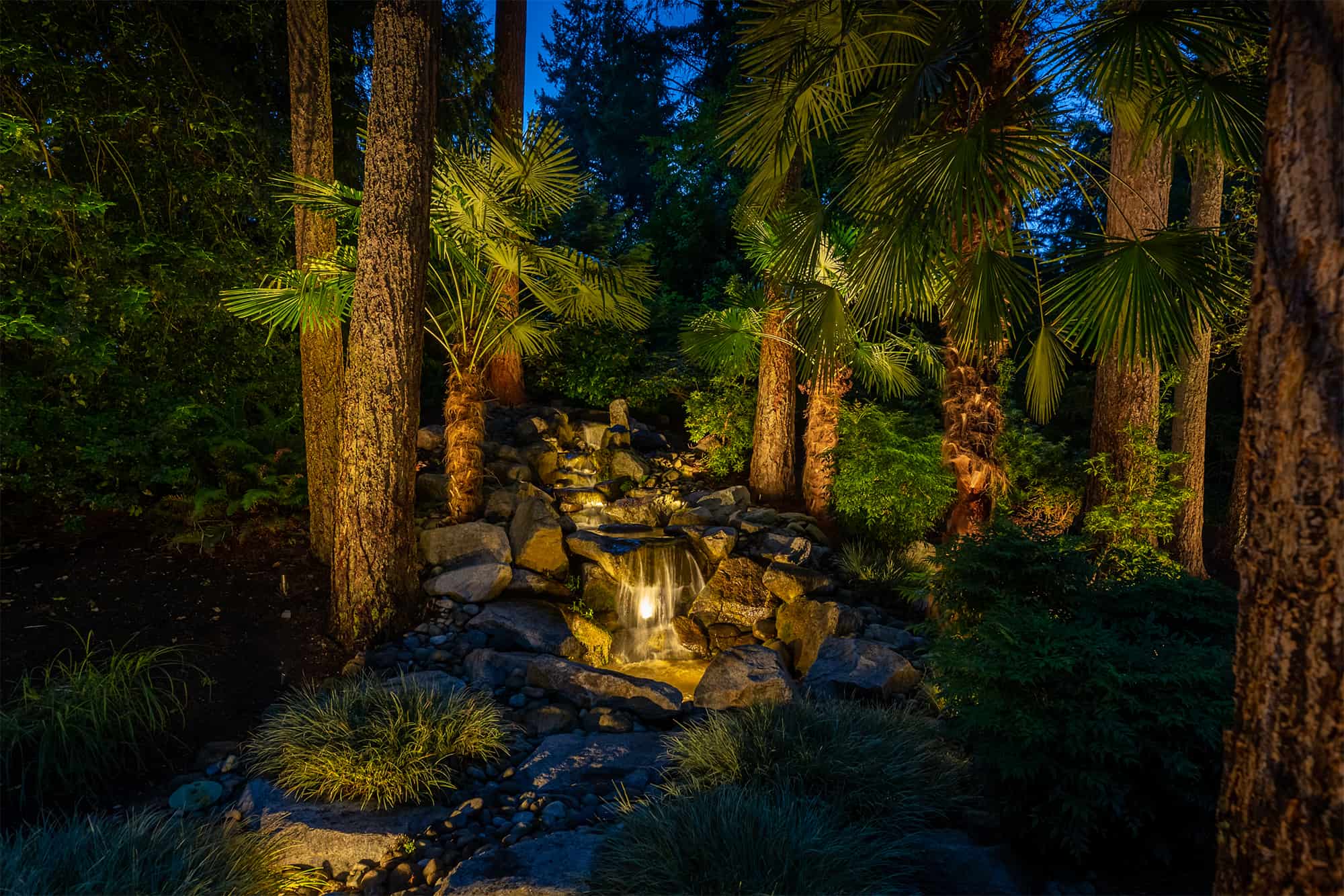

Water features, fountains, fish ponds, fish tanks, eaves, columns, facade details, step and ledge accents, downlighting, wall washing, and tight architectural details.
Build

6061-T6 aluminum, 304 stainless steel, or C360 brass with 316 stainless hardware, integrated heat-sink body, built-in surge protection, and U.S.-made light engine and driver.
Availability

3000K stocked. Other CCT and color options are special order with 5-7 additional business days. Fuchsia and Lavender may require extended lead time. Verify finish compatibility for underwater or chemical-exposed installs.
