Casa Color Series / RGBW Directional & Accent

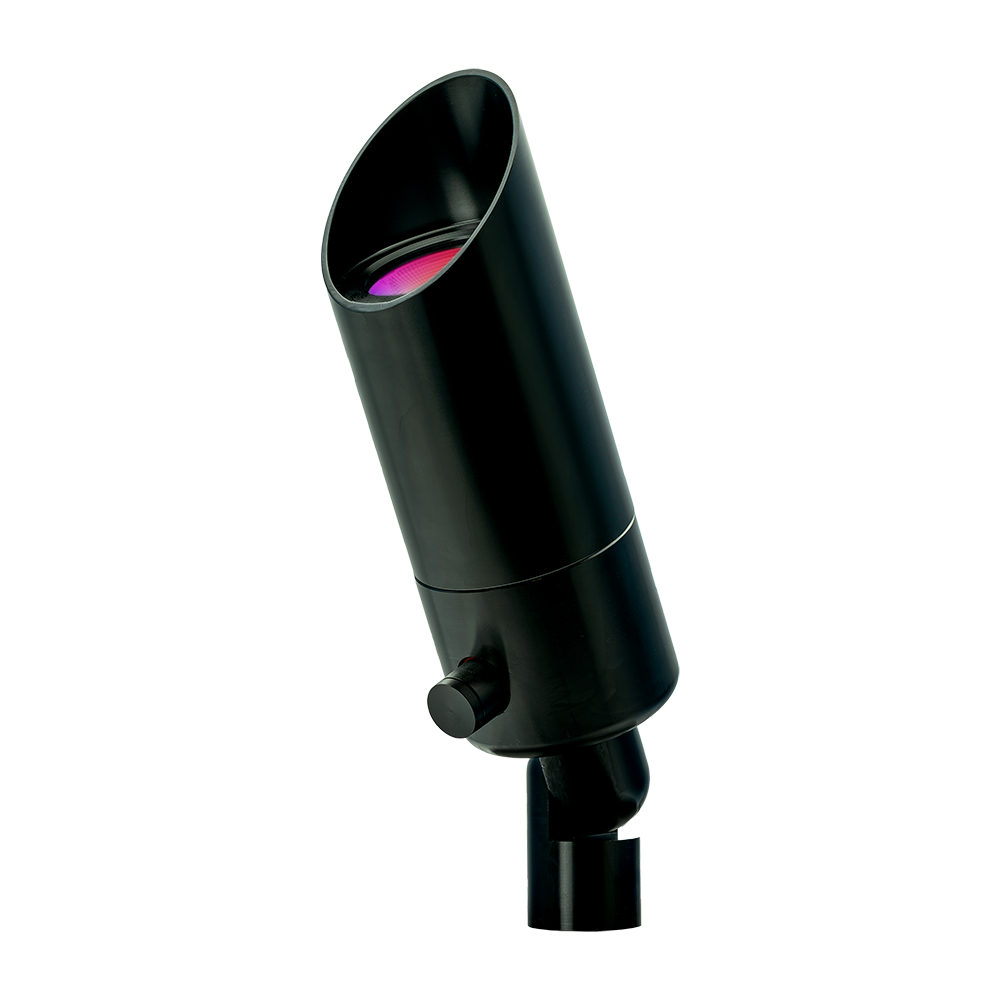

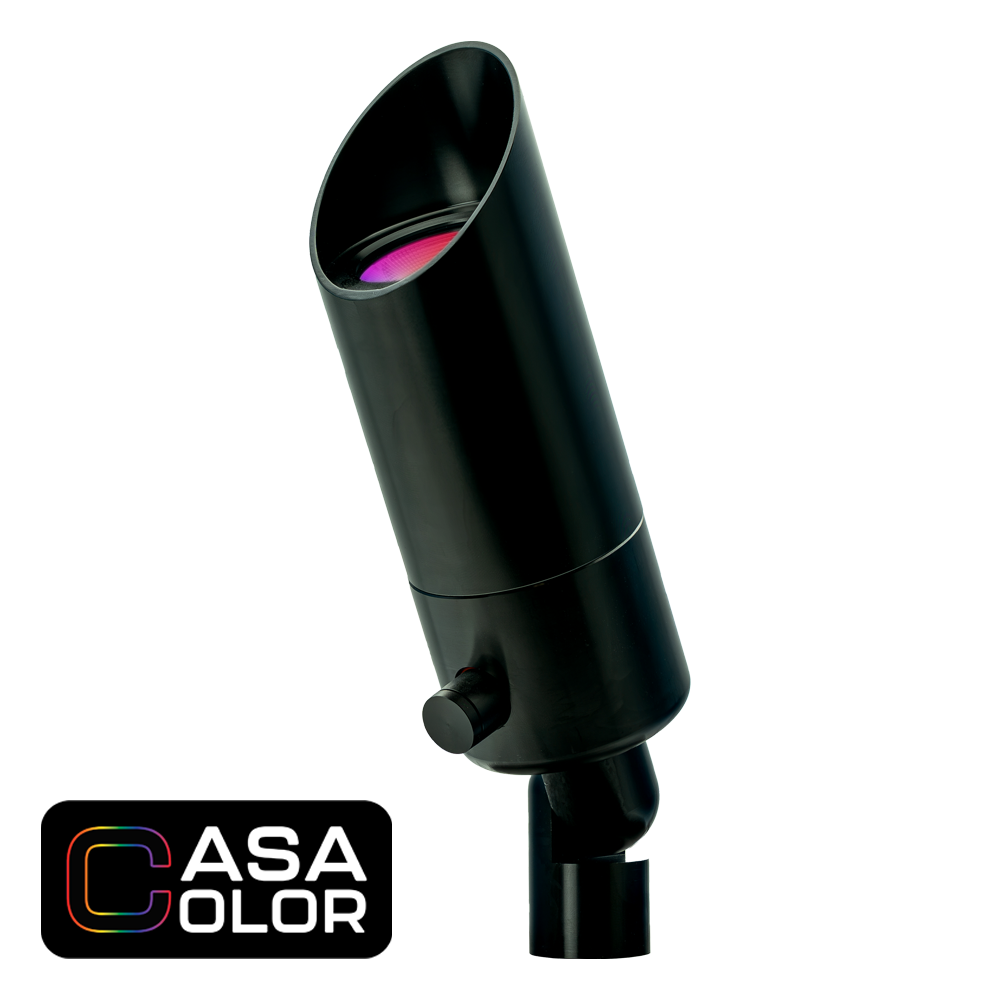

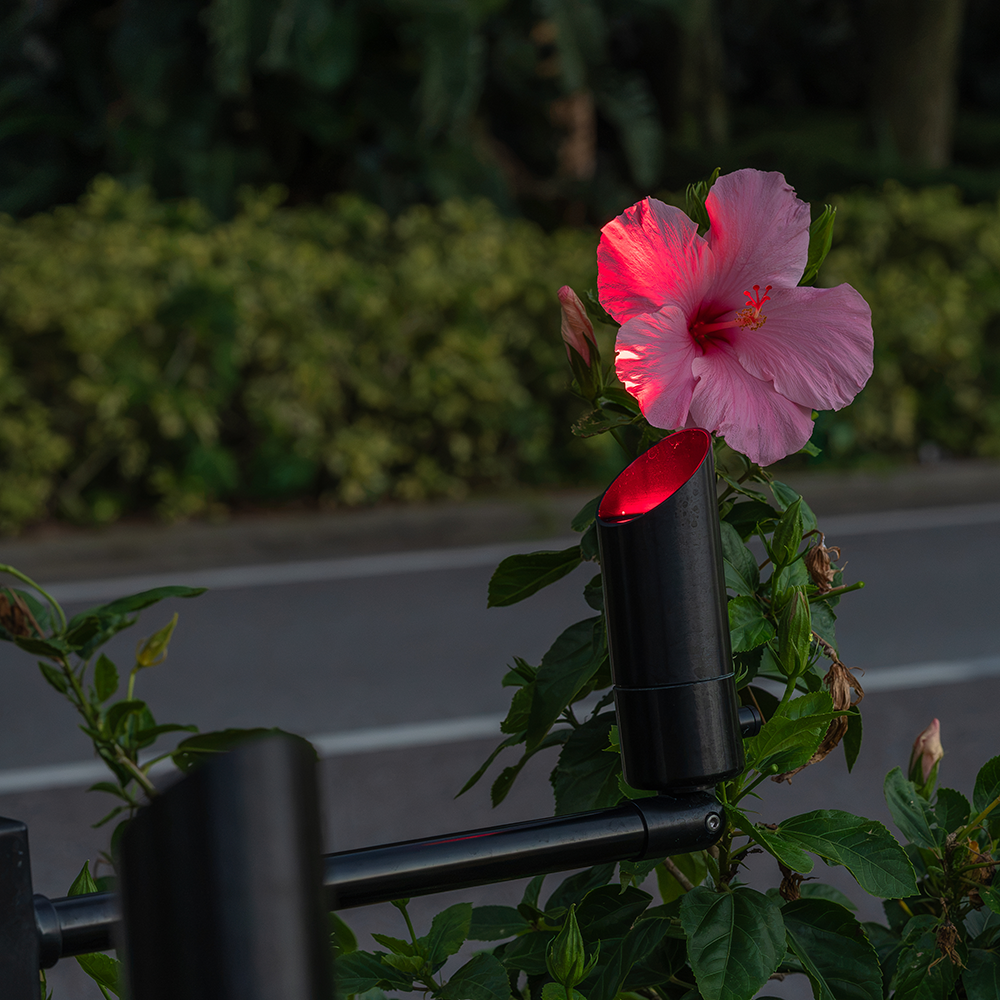

15W / 20VA RGBW spotlight with a dedicated 3000K white channel and individual Casambi control. Operates at 10.5–16 VAC on standard two-conductor landscape wiring. Supports independent color and intensity control, grouped scenes, scheduled operation, and scene animations.

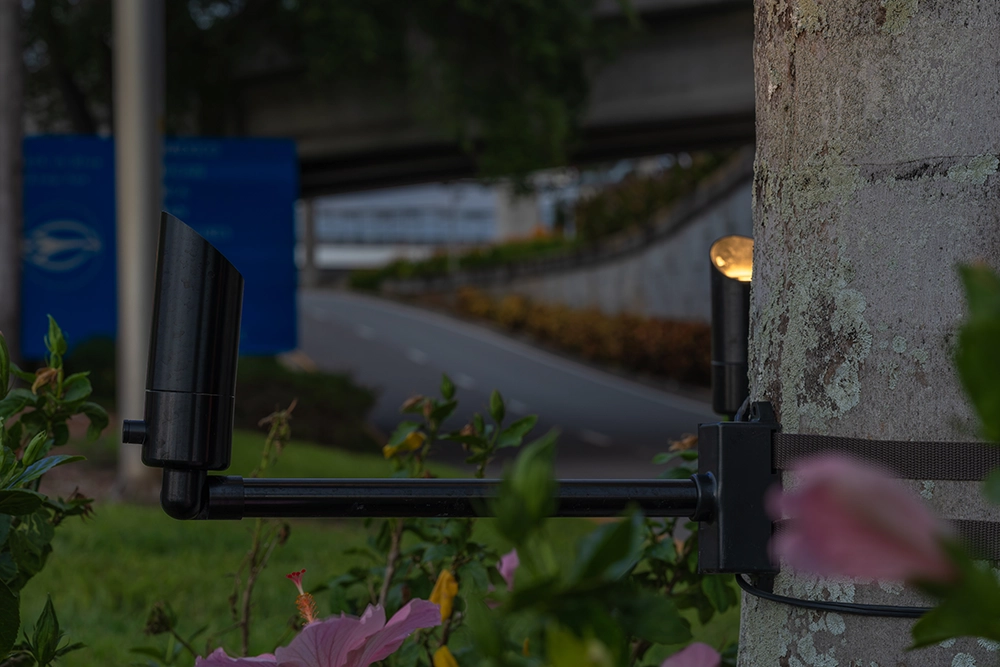

Compatible with Garden Light LED stakes, mounting bases, tree mounts, and extension posts. LV130 ground stake included.
For ground-mounted installation. Select a surface mount, tree mount, or extension post as required by the mounting detail.
*Up to approximately 200 ft in open line-of-sight conditions. Verify communication at installed locations; structures, metal, Low-E glazing, and dense planting can reduce range.
| Channel | Lumen Output |
|---|---|
| Red |
210 lm
|
| Green |
410 lm
|
| Blue |
101 lm
|
| White (3000K) |
635 lm
|
Channel values are listed individually; they are not a combined-output rating.
Connect with standard two-conductor landscape cable. Fixture input is 10.5–16 VAC; calculate transformer loading at 20VA per spotlight. No separate control cable is required.
Casa Color and compatible conventional low-voltage fixtures can operate on the same run and transformer. Individual app control applies to Casambi-enabled fixtures.
Add fixtures to existing circuits after verifying spare transformer VA, cable loading, and voltage at each fixture. Commission and test the mesh at the installed fixture locations.
Set color and output per fixture, group luminaires by lighting zone, and commission saved scenes for normal operation, events, or seasonal programming.
Set color and intensity per spotlight. Assign fixture names by location and group luminaires by lighting zone or control function.
Sequence saved scenes with defined fade and hold times. Set transitions and repeat behavior for color effects across selected luminaires.
Trigger scenes and animations by time, day, or date. Use network location settings for sunrise/sunset schedules.

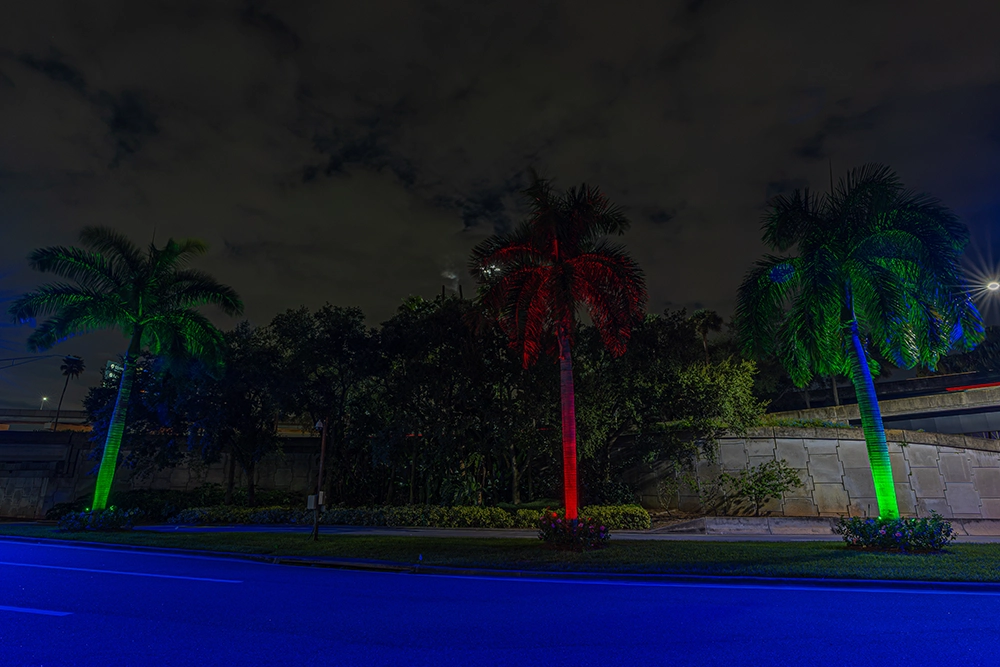

Save color and intensity values for repeatable landscape, architectural, event, and branded lighting scenes.
Assign fixture controls to a site photograph or plan in Casambi Gallery. Use separate views for distinct lighting zones.
Commission and operate from the Casambi app on iOS or Android within Bluetooth range. Local operation does not require Wi-Fi or a gateway.
Add compatible Casambi switches and sensors as required. Remote access requires a compatible gateway and internet connection. Confirm gateway/interface requirements and supported control functions during AV system design. Controls and gateway hardware are sold separately.
Network setup, device identification, grouping, scenes, schedules, troubleshooting, and project handoff documentation.
Request an IES file for the specified optic and fixture configuration. Submit one variation per request. Standard turnaround: 3–5 business days.
CASA COLOR SPOTLIGHT / CIRCUIT PLANNING
Calculate transformer loading and fixture voltage for new Casa Color Spotlight runs. Based on 20VA per fixture.
Calculator loading. JavaScript must be enabled and the calculator script must be installed.
Assumes the transformer supplies only the Casa Color runs entered below. Select one tap per COM and keep COM circuits separate.
Enter the one-way cable distance from transformer to the last fixture. Return-conductor resistance is included automatically. Each added run is a separate home run.
