X-Light Single Sided

Call for Pricing

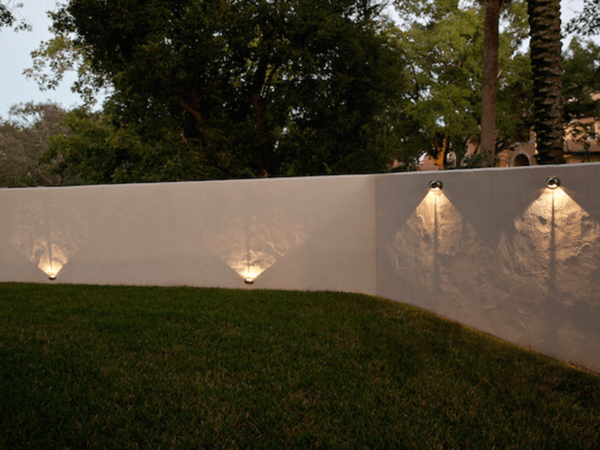

Similar to our Ultra Low profile X-Light, the one side version can be used in a wide variety of applications with a more directed output such as wall sconce’s, pathways, and more…

While many fixtures are manufactured in foreign countries, Garden Light LED proudly builds all LED products in our Tampa, Florida factory. Garden Light LED fixtures are the product of intense collaboration and are engineered, designed, and assembled in the United States, allowing us to maintain and control the purity of the Garden Light LED standard.
Garden Light LED has stayed ahead of the curve by engineering and manufacturing A Fixture for Life, its line of select LED fixtures that are adaptable in design and designed to be upgraded with LED technology that doesn’t even exist yet.


LED technology has high efficacy. Which provides lower energy/power consumption protecting our natural resources. ENVIRONMENTALLY CONSCIOUS PRODUCTS. GREENER ENERGY RESOURCES ARE KEY TO THE PLANET’S WELL-BEING.

Built in the USA

Garden Light LED is Investing in America! All electronic assemblies are manufactured in the US. All low voltage transformers and LED fixtures are built at our facility in Tampa, FL USA. As part of our commitment to made in America products Garden Light LED has proudly tripled our production staff bringing needed jobs to American workers.


Garden Light LED 15V transformers and LED luminaries are certified for compliance with UL1838 – Low Voltage Landscape Lighting Systems to ensure products meet or exceed industry standards for residential and commercial applications.

LED Light, Perfected

Our proprietary mixing processes achieves 3000K CCT Warm White range with a minimum CRI of 80 to produce the highest quality and consistency of light available today. Multiple beam angles, Full-definition, high-efficiency optics, total internal reflection (TIR) technology, no hot spots, no color separation and no sharp edges.

LED Life Expectancy

Rated for greater than 60,000 hours of life, or greater than 20 years, ensuring a consistent, long-life light output per TM-21 data.

Isolated Drive System

Drive system is physically separate, when feasible, to remove heat associated with the light engine from the driver, and allows field upgradeability and maintenance of fixture. Drive system maintains a constant DC current for driving the LEDs even with variable and changing input voltages. All Garden Light LED drivers include a surge protection device.

Thermo-Guard Stake

Strong, durable, quick access stake serves as a protective housing for the isolated drive system, and creates the ideal operational environment. Drive system can be upgraded (to increase light output, for example) without removing the stake from the ground or pulling up wire. Other mounting option available.


All LED luminaries with a painted finish are cnc-machined from solid 6061 aluminum. All LED luminaries with a raw finish are cnc-machined from solid C230 or C360 brass.

True LED Color

Luminaries with colored light output use LEDs that actually emit those colors as opposed to the use of color filters and films. Available colors are: Warm White, Amber, Blue, Royal Blue, Green and Red. Not all colors are available for all SKUs. (PURE).

Automation and Control

In order to provide the widest range of outdoor lighting opportunities, various LED luminaires have been tested and certified by Crestron to exhibit smooth, wide-range dimming on Crestron controllers. More information can be found on the Crestron website. Then select: Manufacturer – Garden light LED. Garden light fixtures have also been installed in other manufacturers control systems successfully; Lutron systems and control four.

– Driveways, Pathways, Walkways, Docks, Private Drives

– 316 Stainless Steel
– H59 Cast Brass

– Greater than 60,000 hours (greater than 20 years at 8 hours per day)

– Integrated internal driver constructed with advanced electronics, engineered for optimal heat transfer

– 10.5 to 18 Volts AC

– Surface mount plate included
– Screw packs includes: stainless steel wood screws and junction box screws, and tapcons
– Fits over standard single gang junction box

– 5′ SJEOOW Tinned Wire, 18 Gauge

– 20 Years


Save these instructions for future reference.

Follow all NEC guidelines and local electrical codes.

Download Installation PDF
